Home >> Mazda >> 2009 >> 3 L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Variable Valve Timing Actuator >> Locations

Variable Valve Timing Actuator: Locations

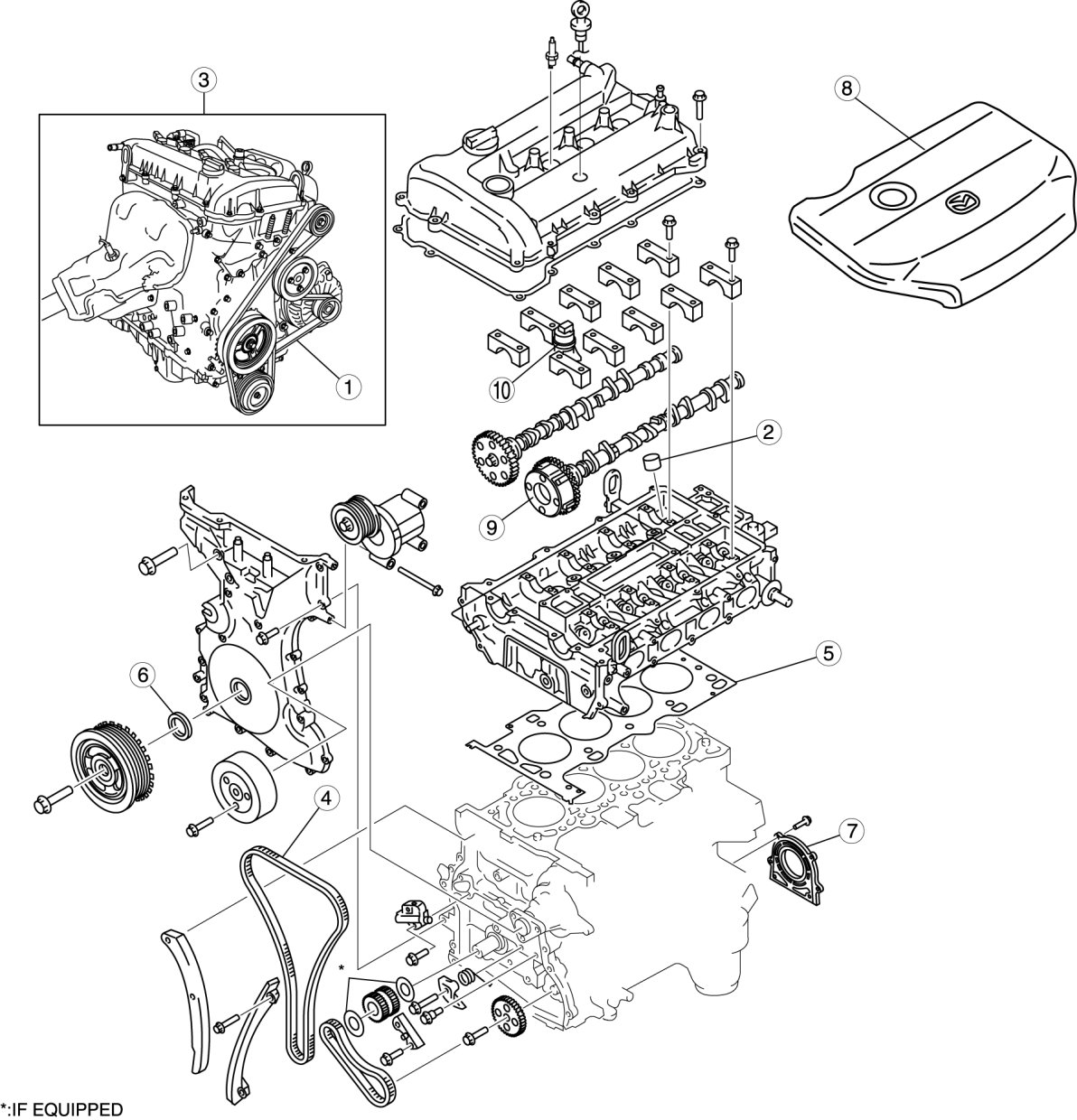

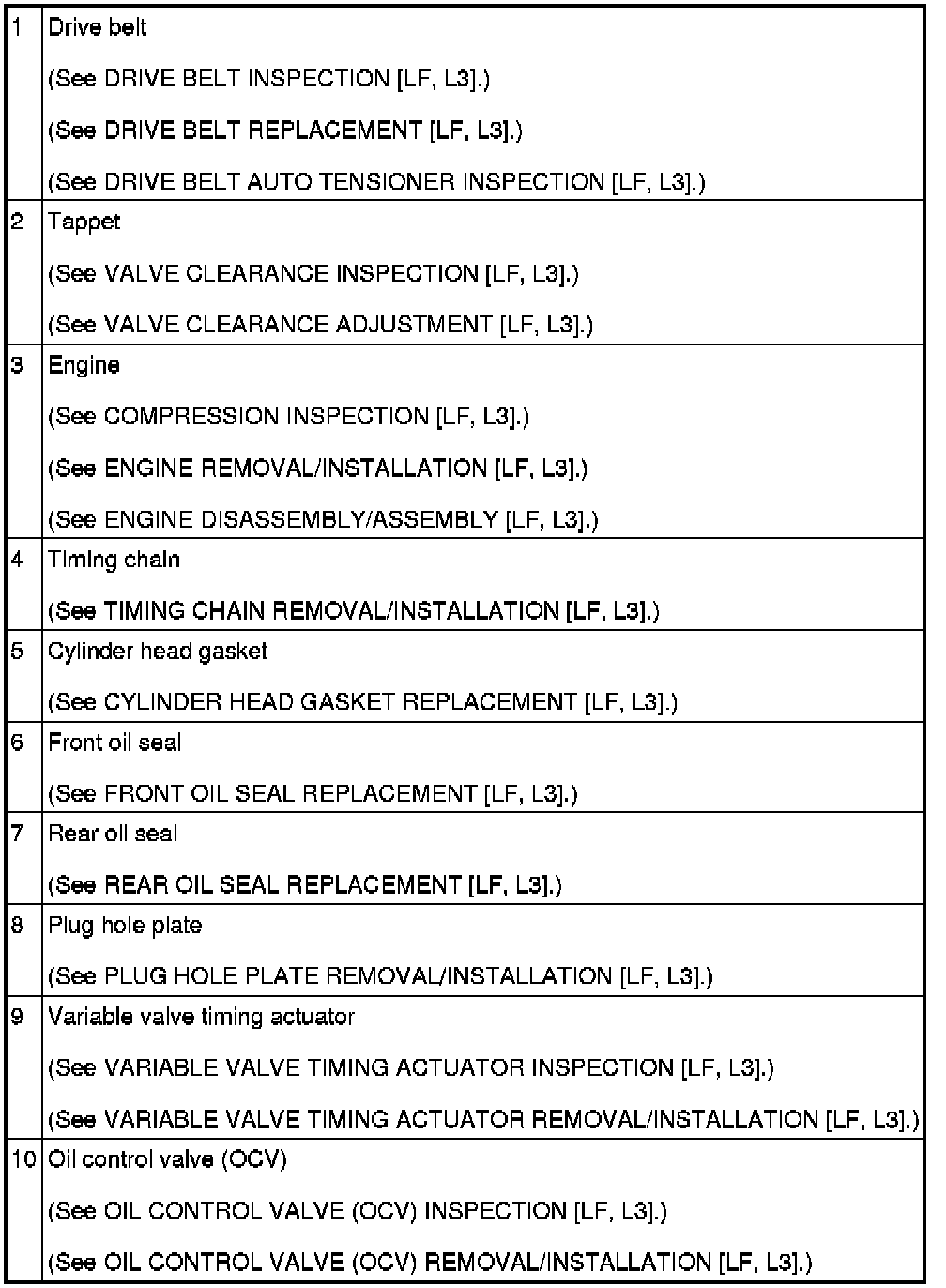

ENGINE LOCATION INDEX [LF, L3]
