Mazda
>>
2009
>>
3 L4-2.3L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Oil Pressure Sender
>>
Locations
>>
Component Locations
Component Locations

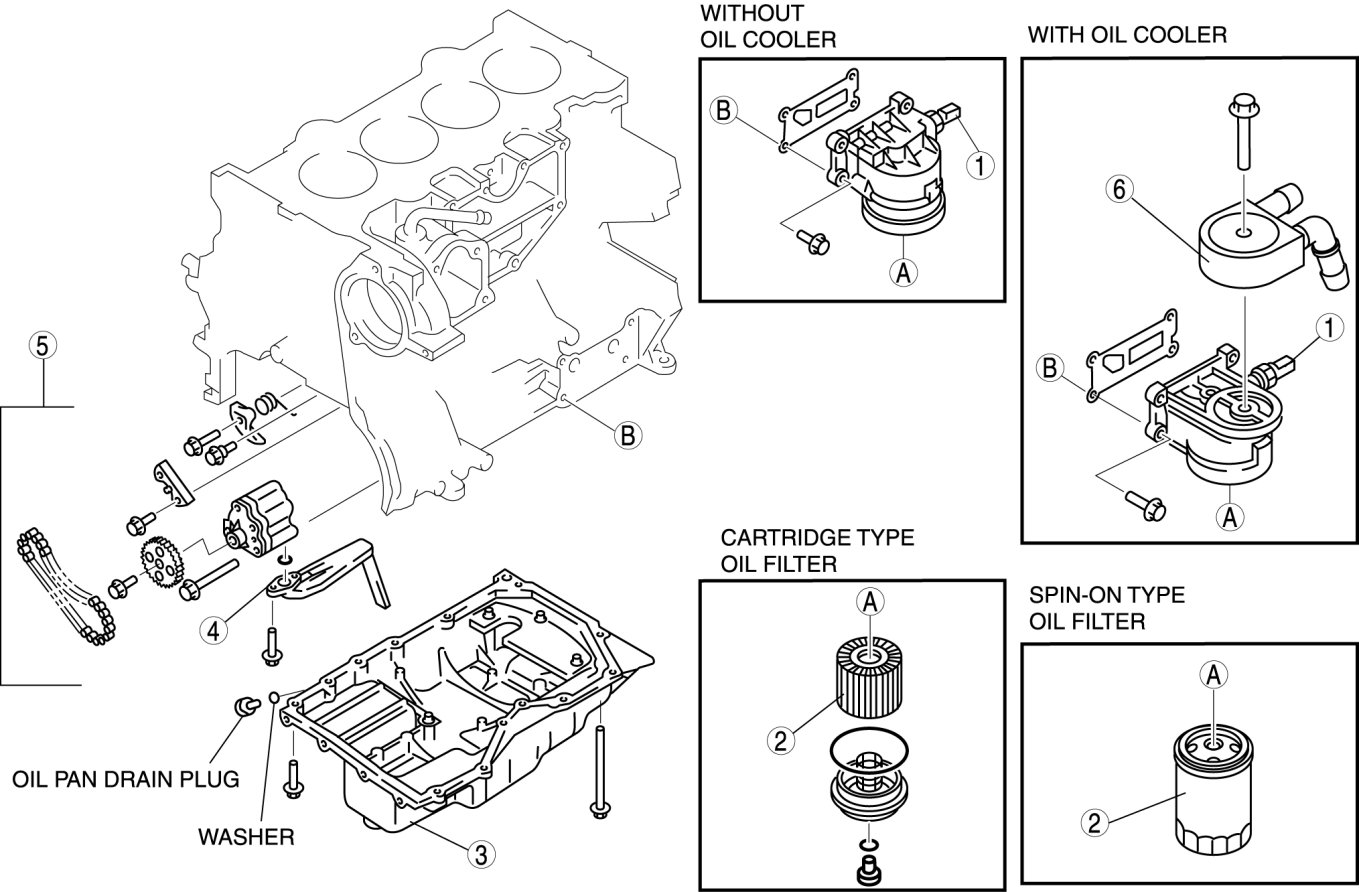

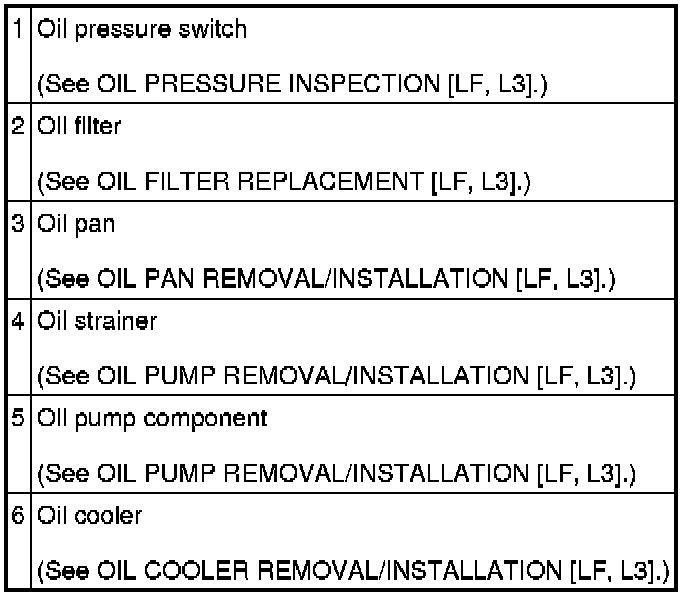

LUBRICATION SYSTEM LOCATION INDEX [LF, L3]
