Radio Tuner: Service and Repair

SIRIUS SATELLITE RADIO UNIT REMOVAL/INSTALLATION

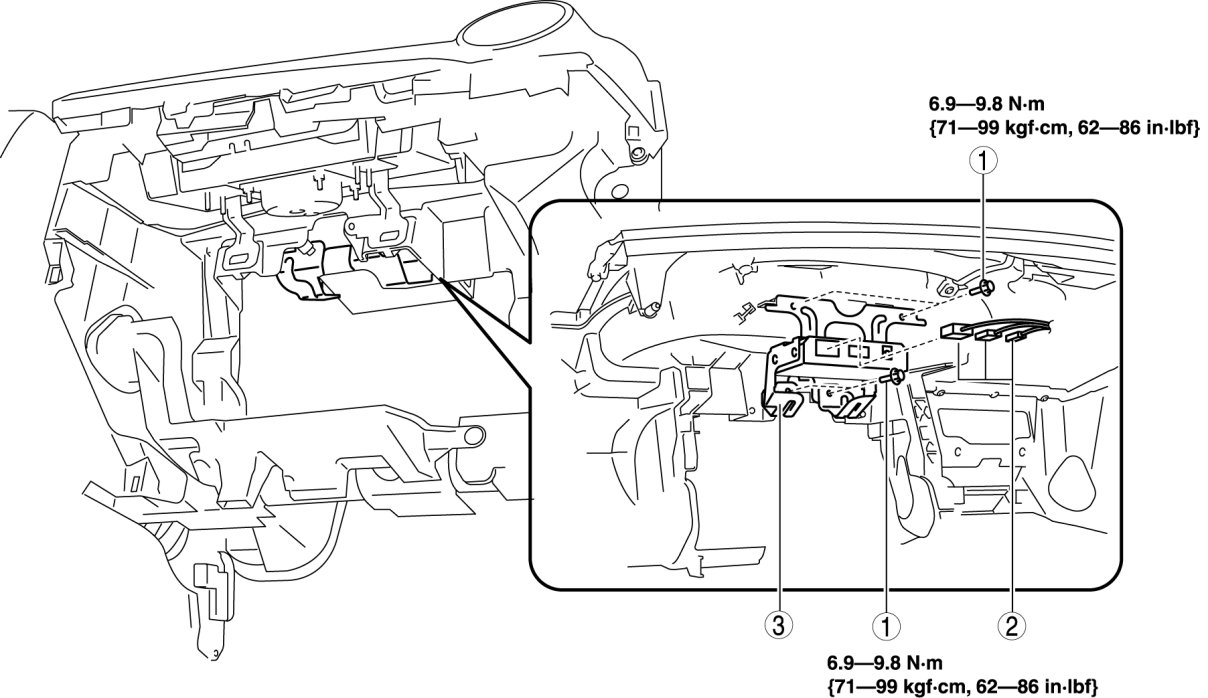

With Audio System

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (Passenger's side) Front Scuff Plate Removal/Installation

b. Front side trim (Passenger's side) See Front Side Trim Removal/Installation.)

c. Decoration panel Decoration Panel Removal/Installation

d. Glove compartment Service and Repair

e. PJB Service and Repair

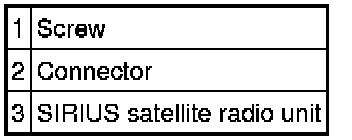

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.

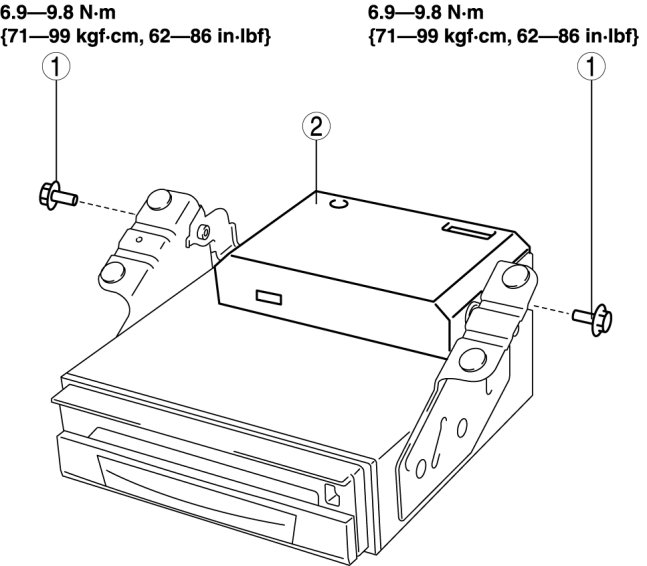

With Car-navigation System

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate (Passenger's side) Front Scuff Plate Removal/Installation

b. Front side trim (Passenger's side) See Front Side Trim Removal/Installation.)

c. Decoration panel Decoration Panel Removal/Installation

d. Glove compartment Service and Repair

e. Car-navigation unit Service and Repair

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.
