Home >> Mazda >> 2009 >> 3 L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Description and Operation

Heating and Air Conditioning: Description and Operation

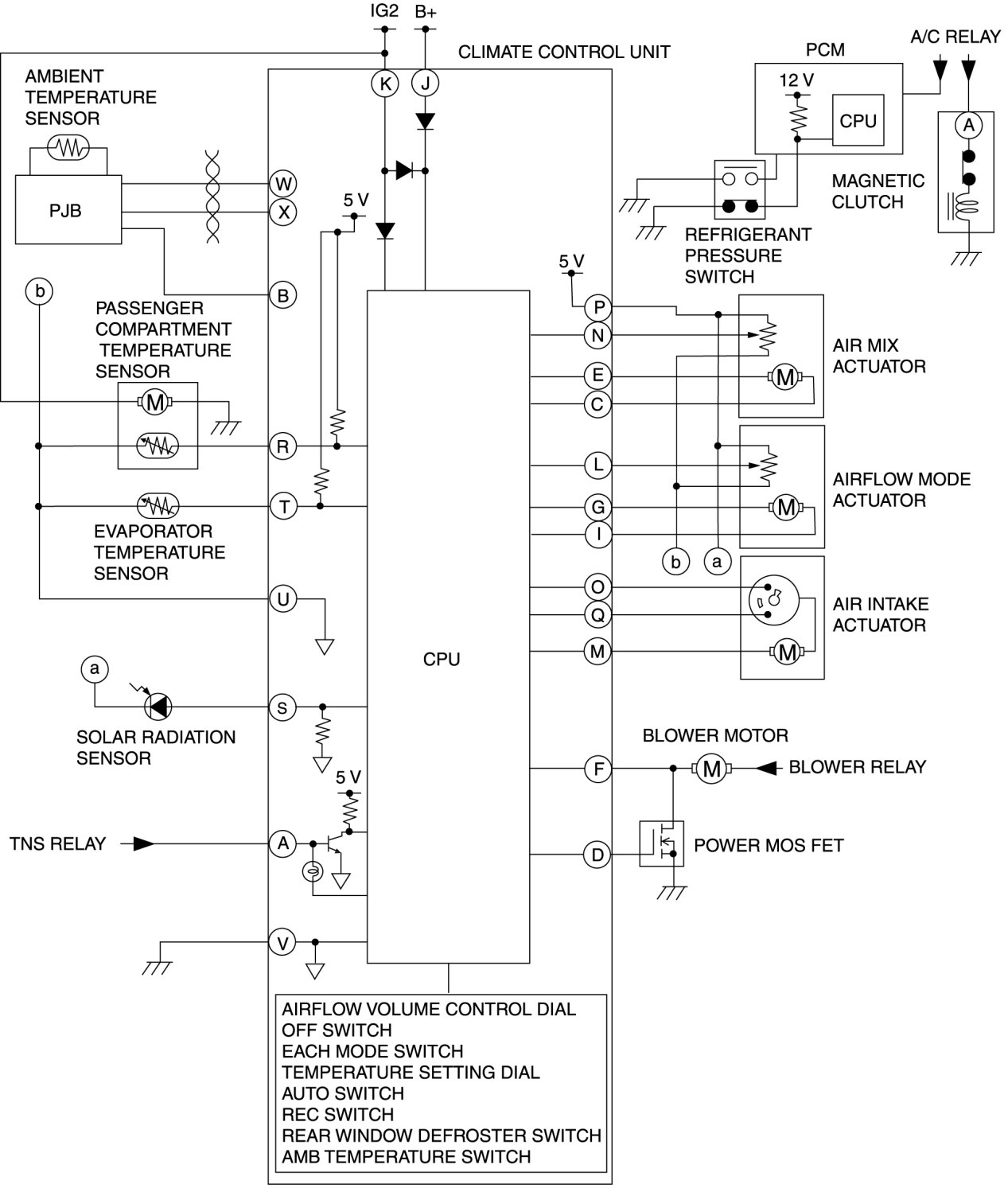

HVAC SYSTEM WIRING DIAGRAM
