Air Intake Actuator Inspection

AIR INTAKE ACTUATOR INSPECTION

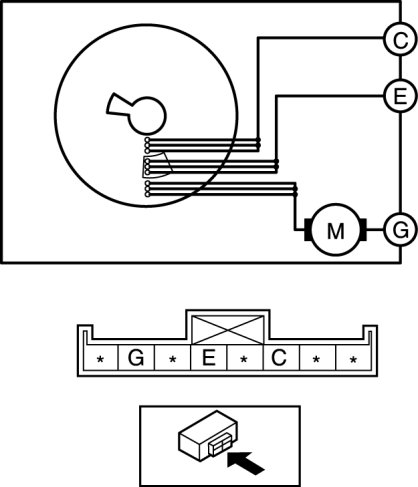

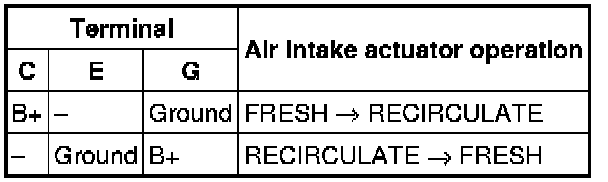

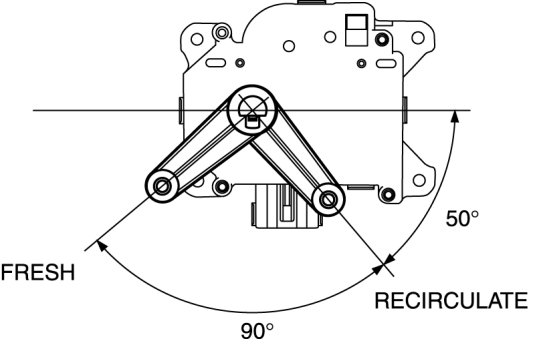

1. Connect battery positive voltage to air intake actuator terminal C (or G), connect terminal G (or E) to ground, and then verify that the air intake actuator operates as shown in the table.

- If the operation condition is not normal, replace the air intake actuator.
LF, L3





L3 with TC
