Mazda
>>
2008
>>
6 L4-2.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Locations
Relay Box: Locations

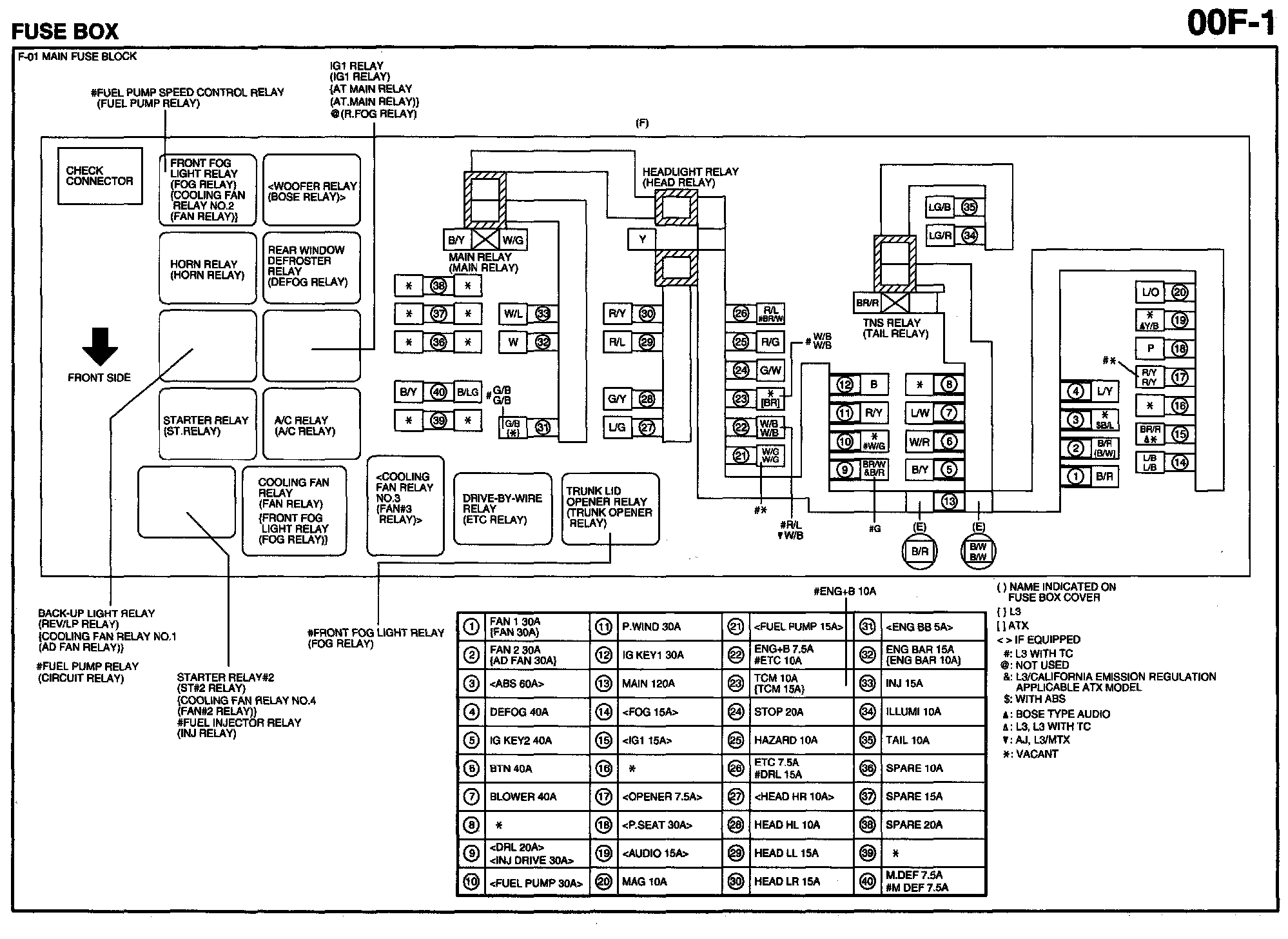

Diagram 00F-1:

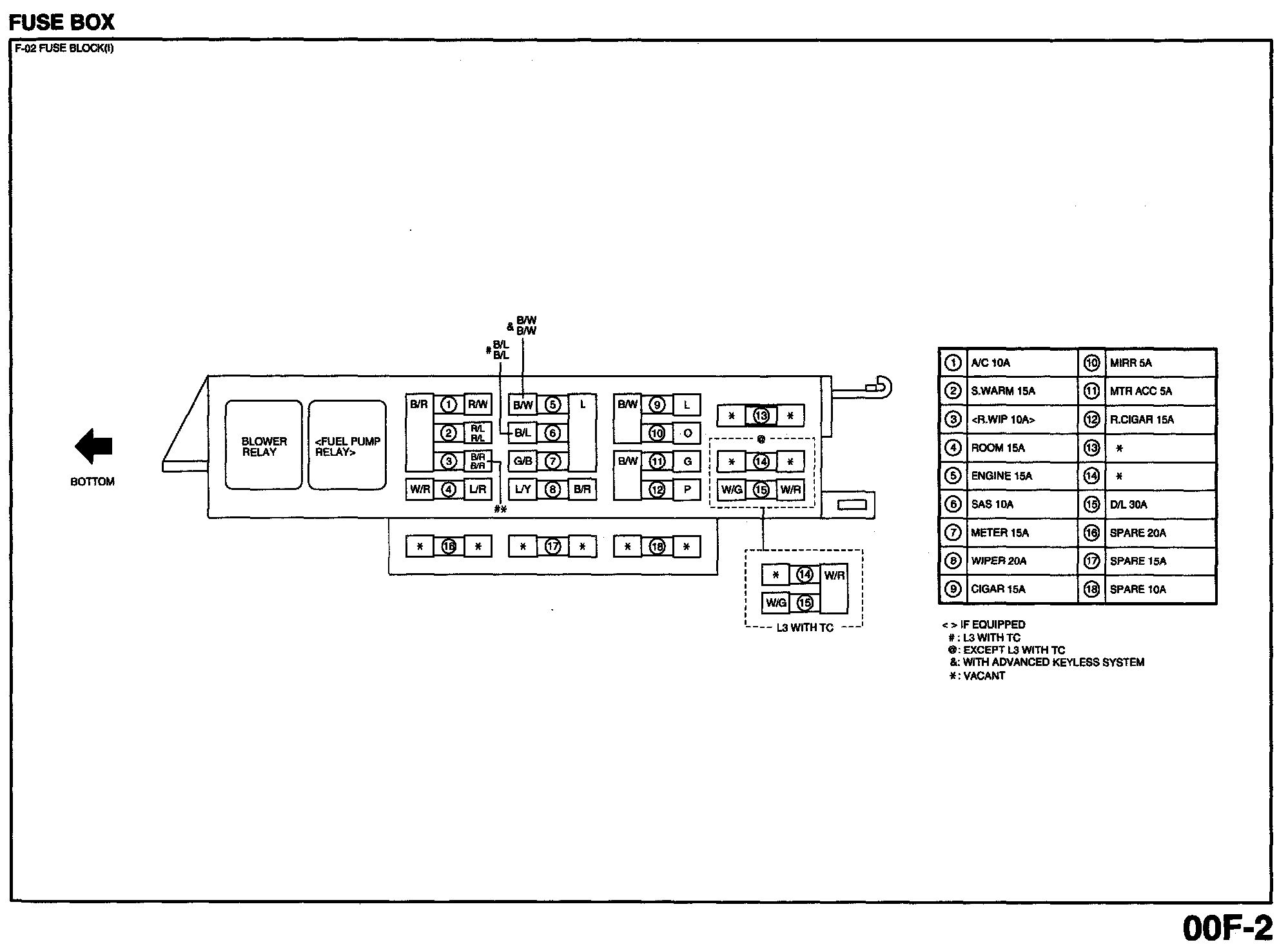

Diagram 00F-2:
