EPHAS Control Module
EPHAS Control Module

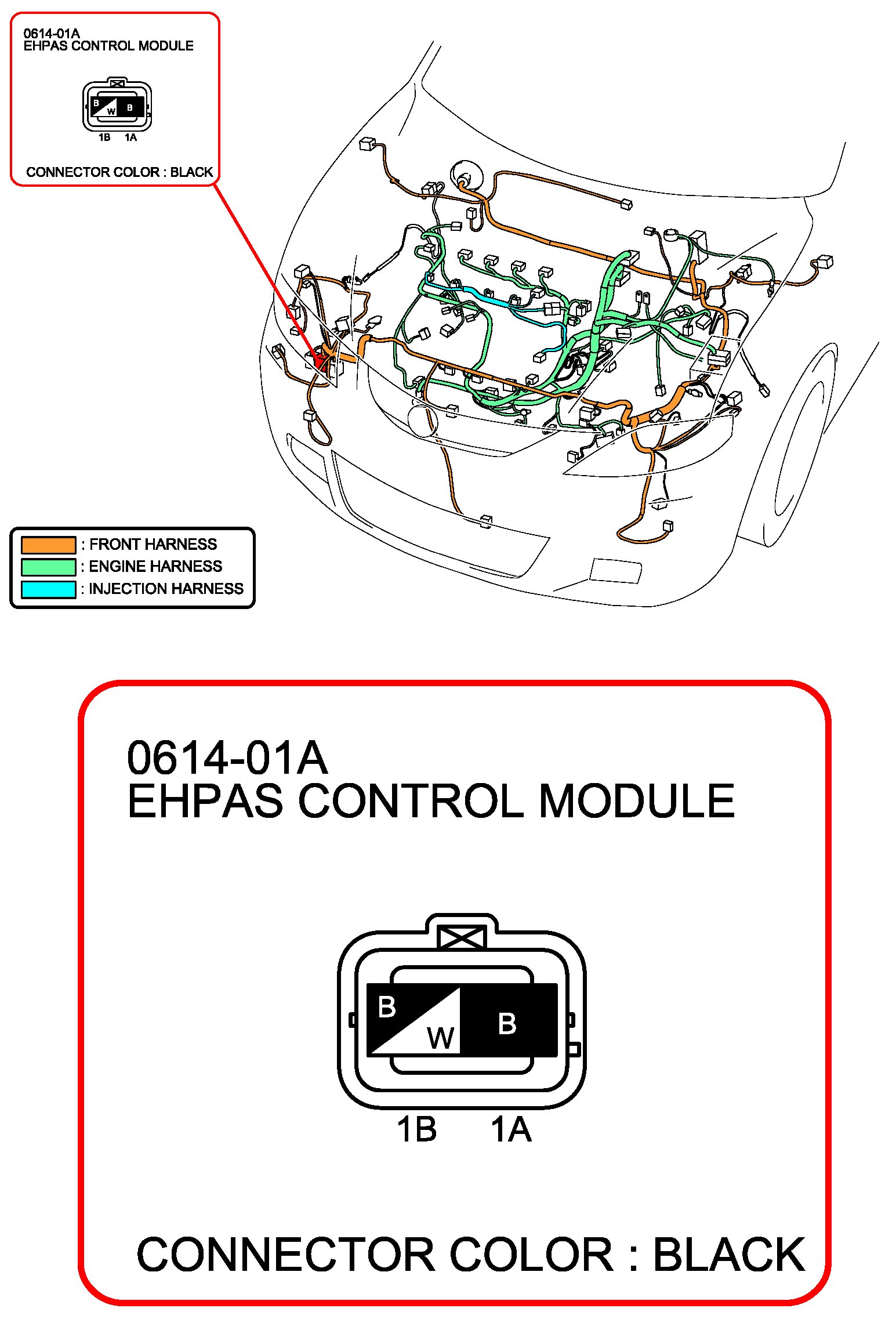

EHPAS Control Module:

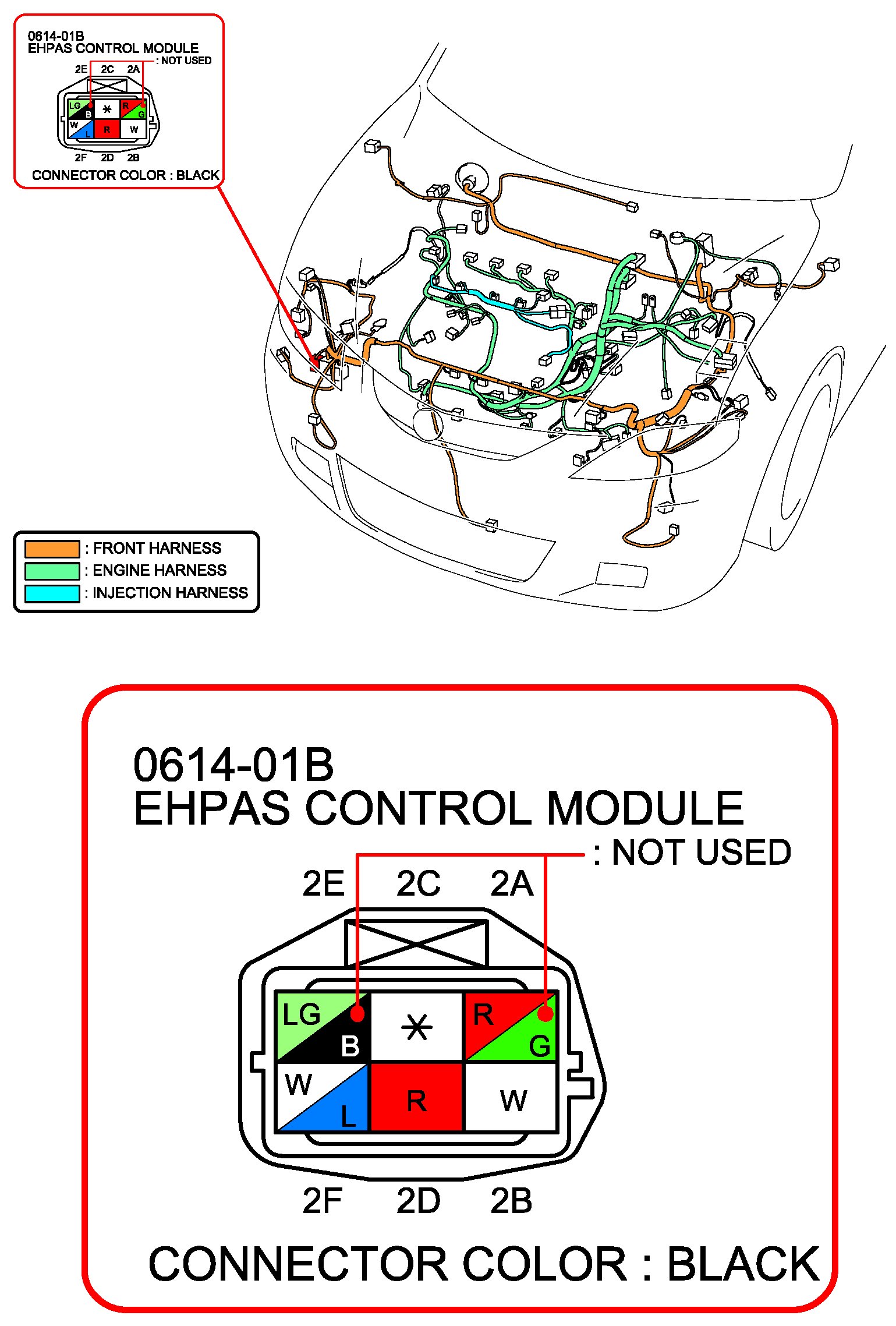

EHPAS Control Module:

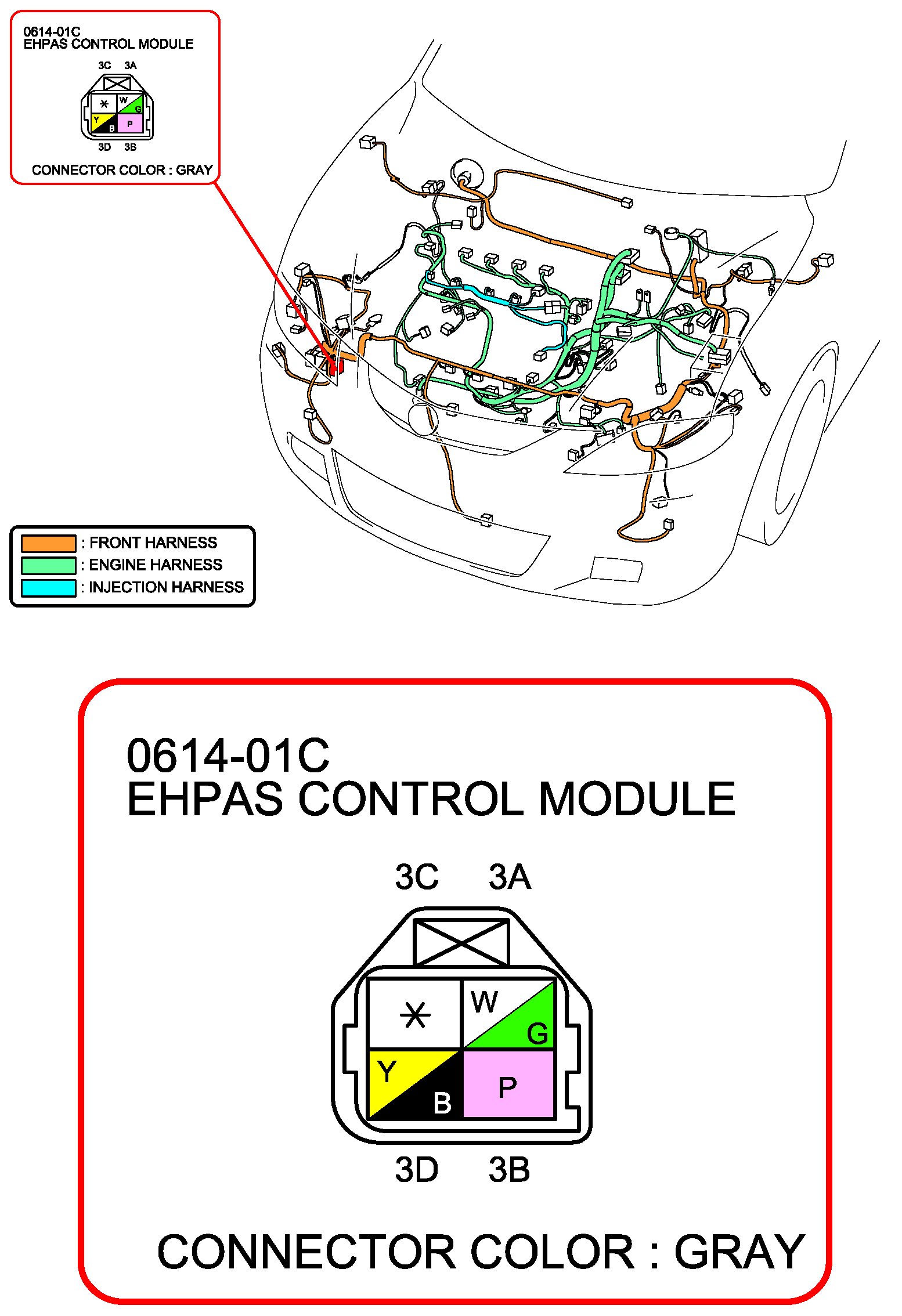

EHPAS Control Module:
