Climate Control Unit / Climate Control Unit Illumination
Climate Control Unit / Climate Control Unit Illumination

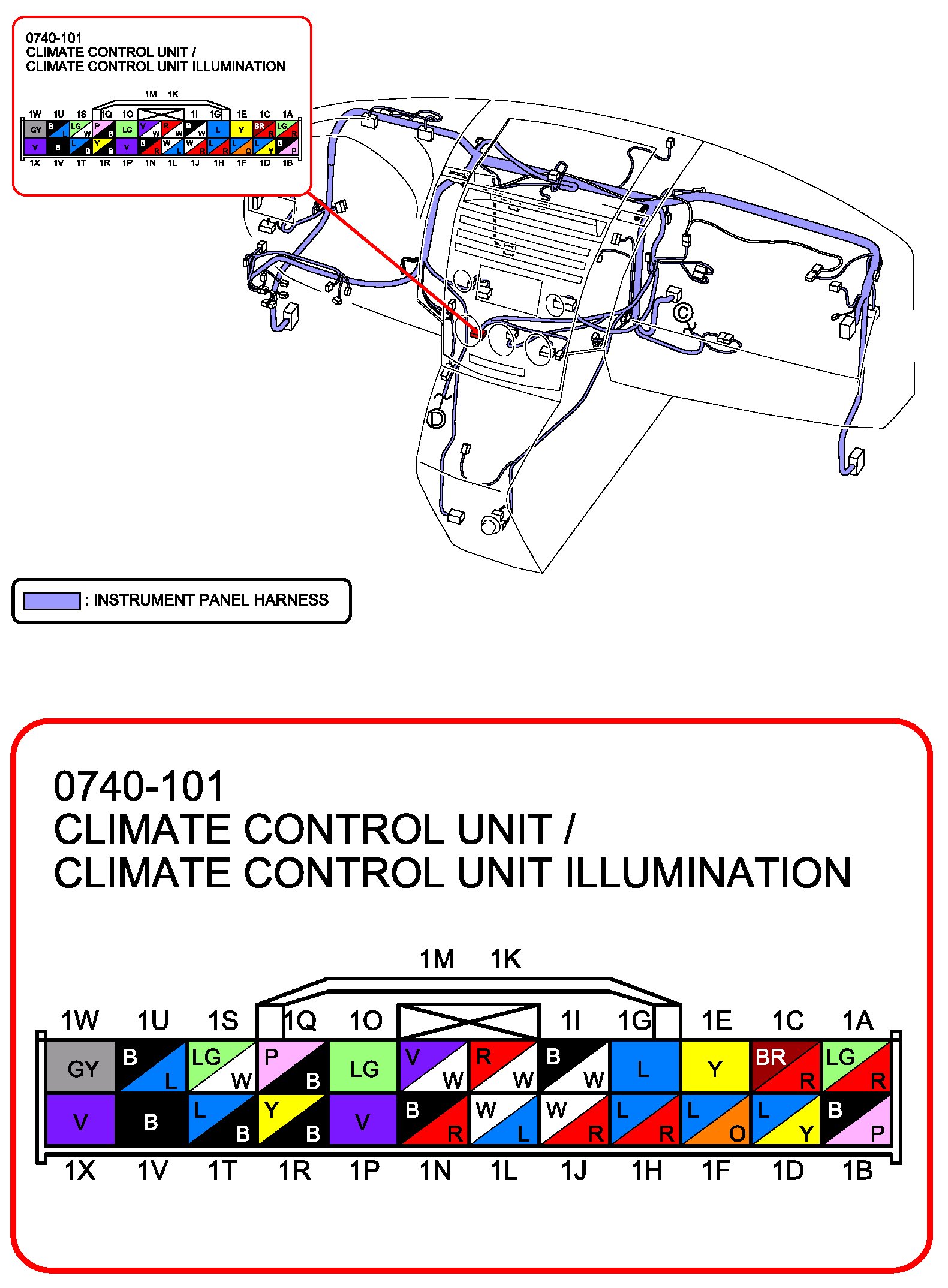

Climate Control Unit / Climate Control Unit Illumination:

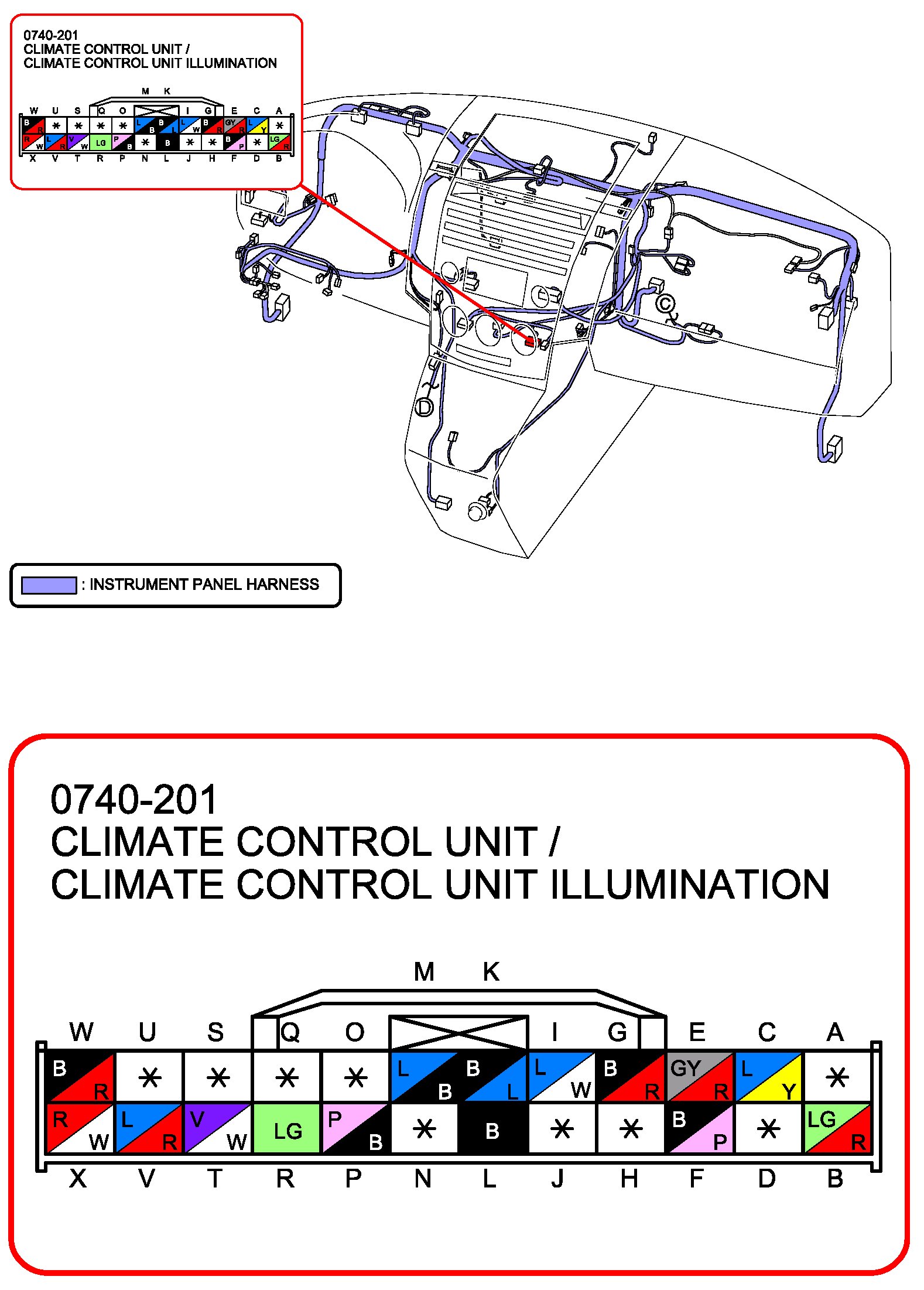

Climate Control Unit / Climate Control Unit Illumination:
