Connector Locations
Connector Locations

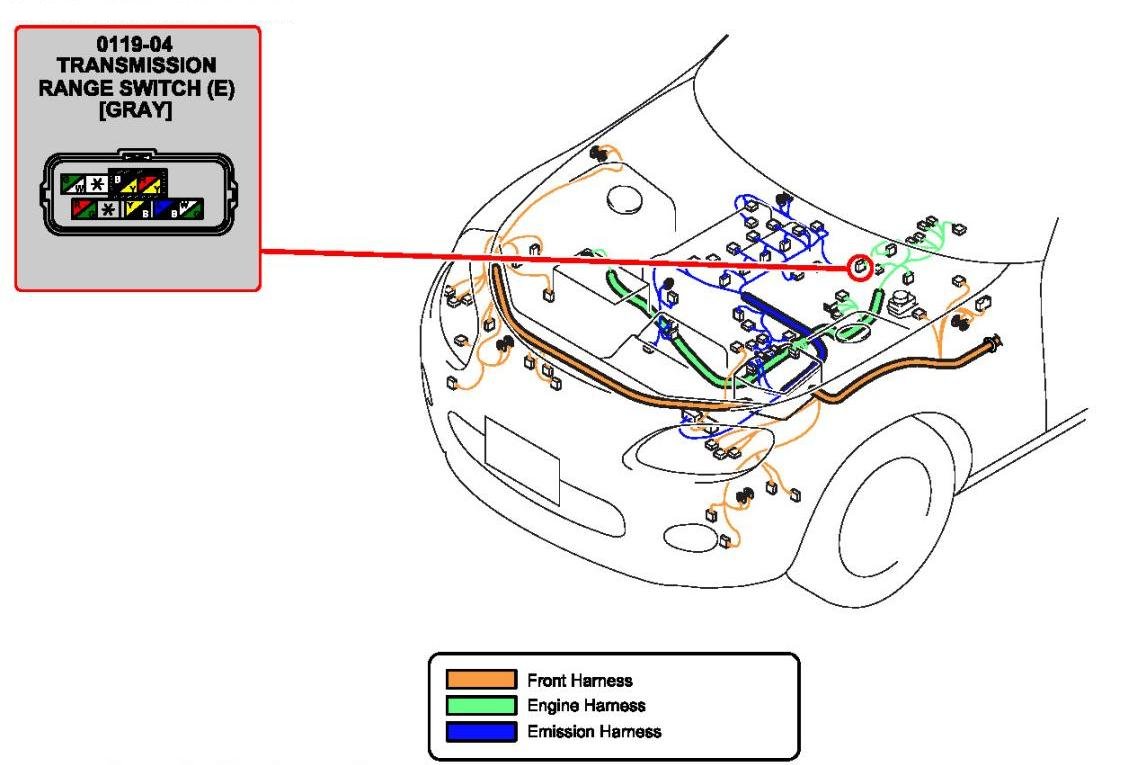

Transmission Range Switch:

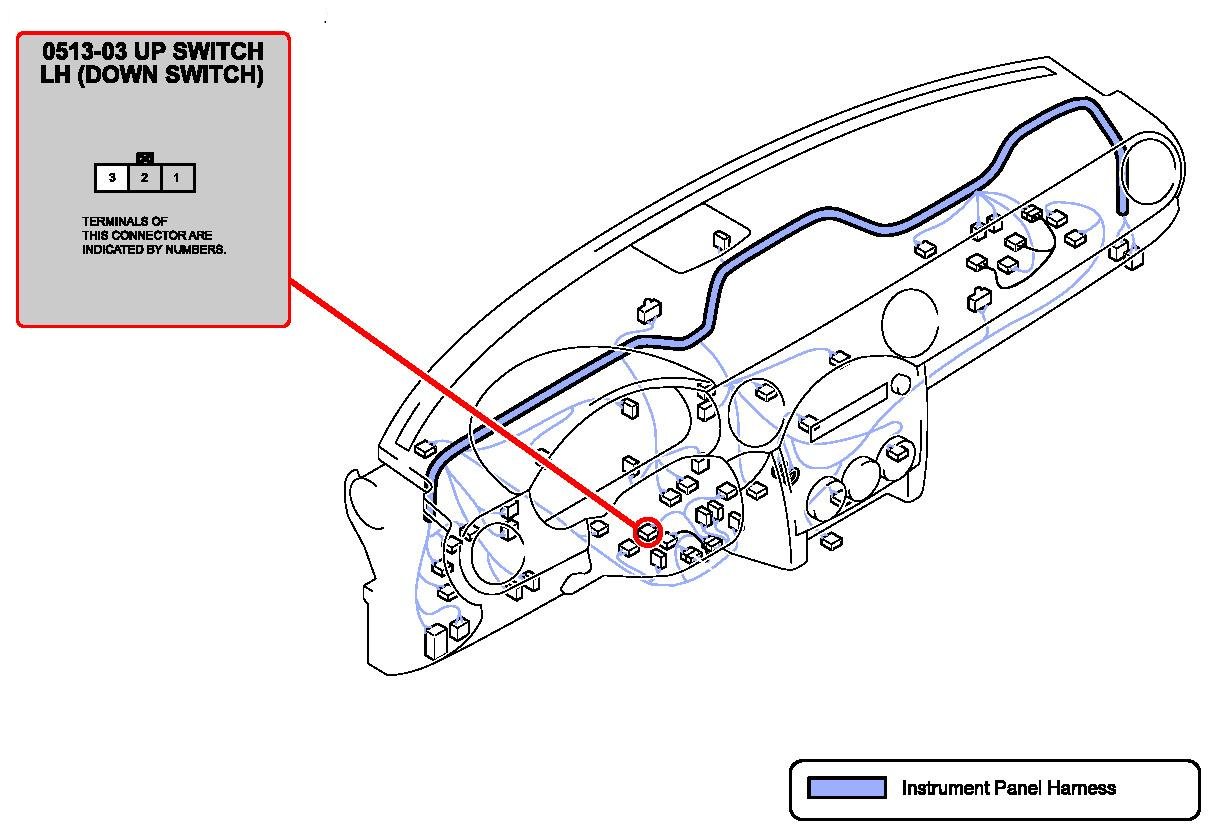

Up Switch LH (DOWN SWITCH):

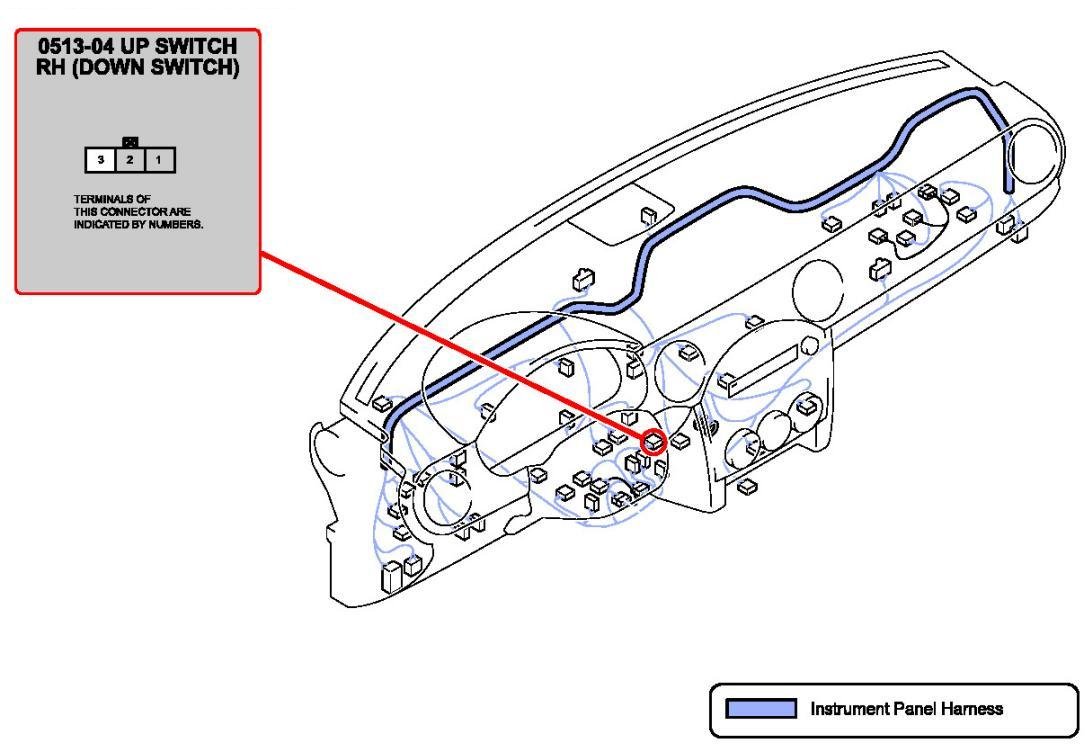

UP Switch RH:
