System Schematic
System Schematic

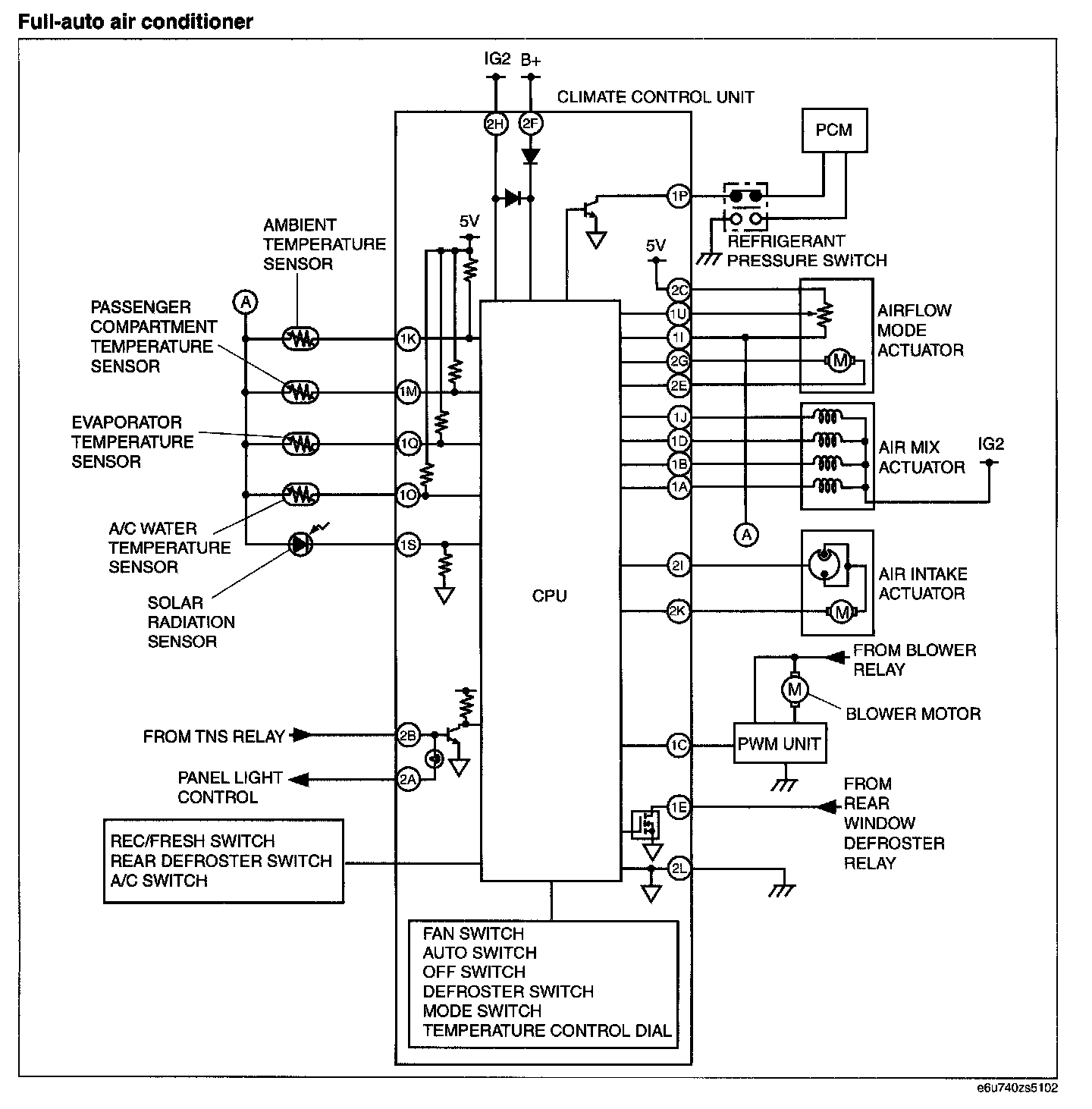

HVAC System Wiring Diagram[L3,AJ]:

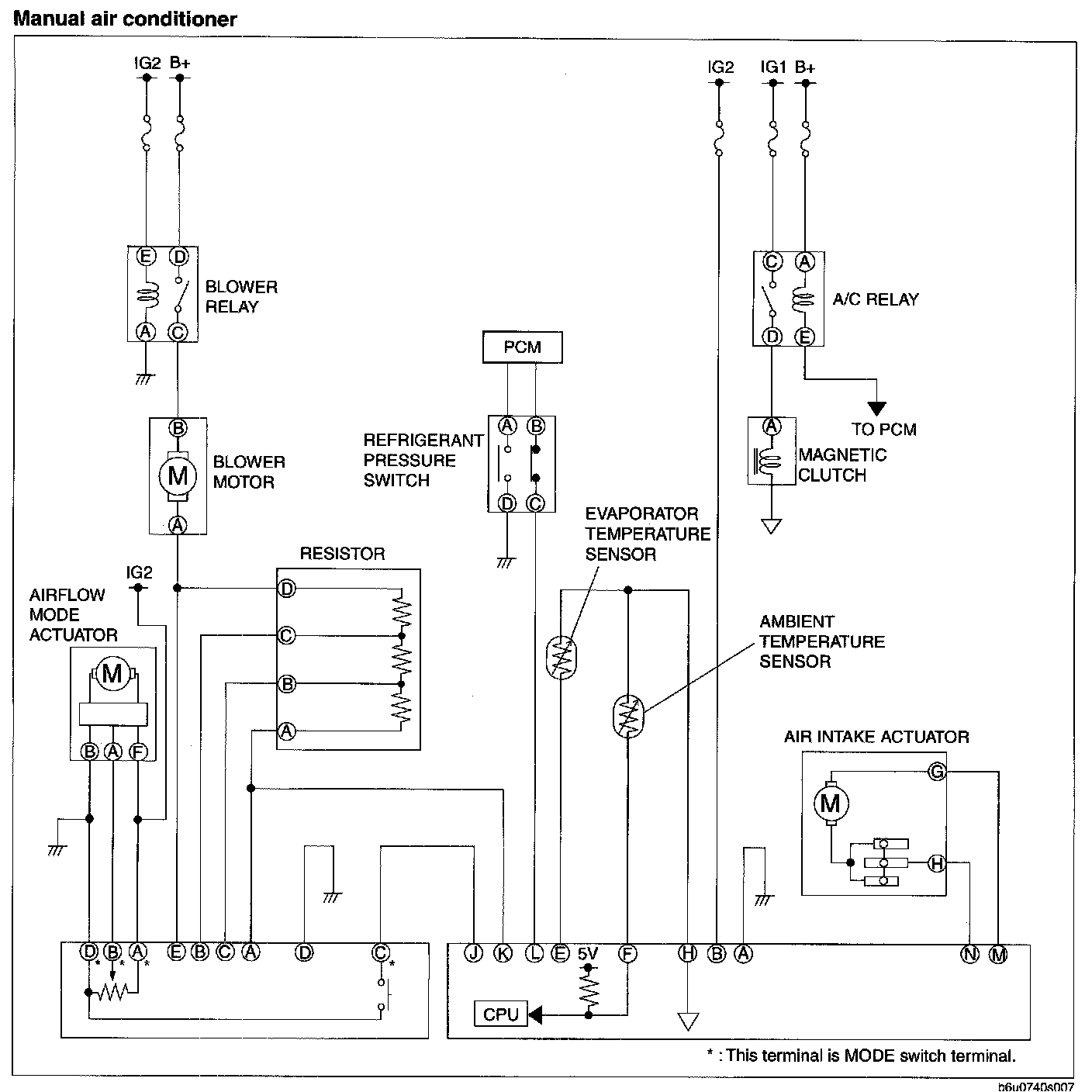

HVAC System Wiring Diagram[L3,AJ]:

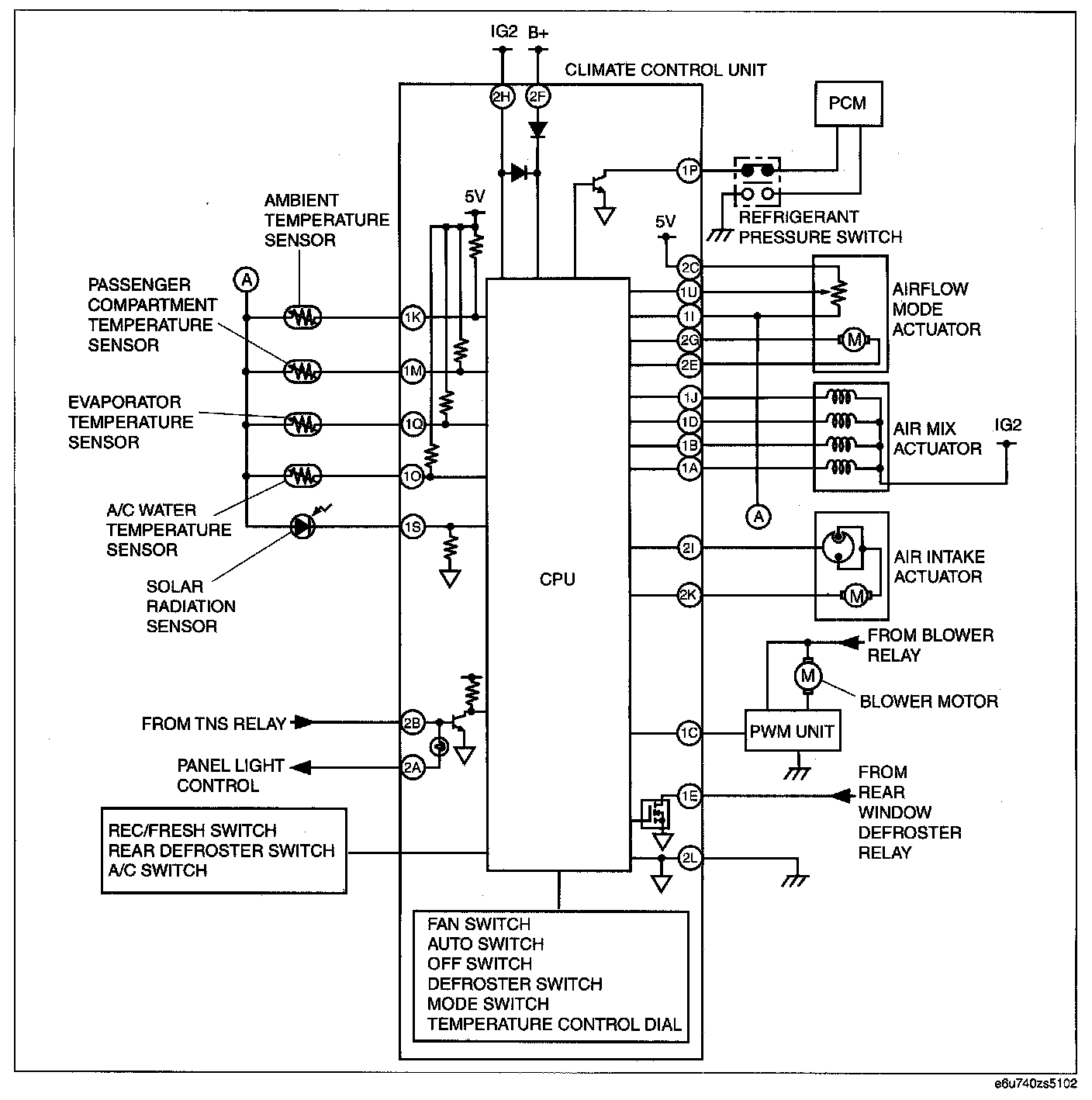

HVAC System Wiring Diagram[L3,AJ]:
