Procedures

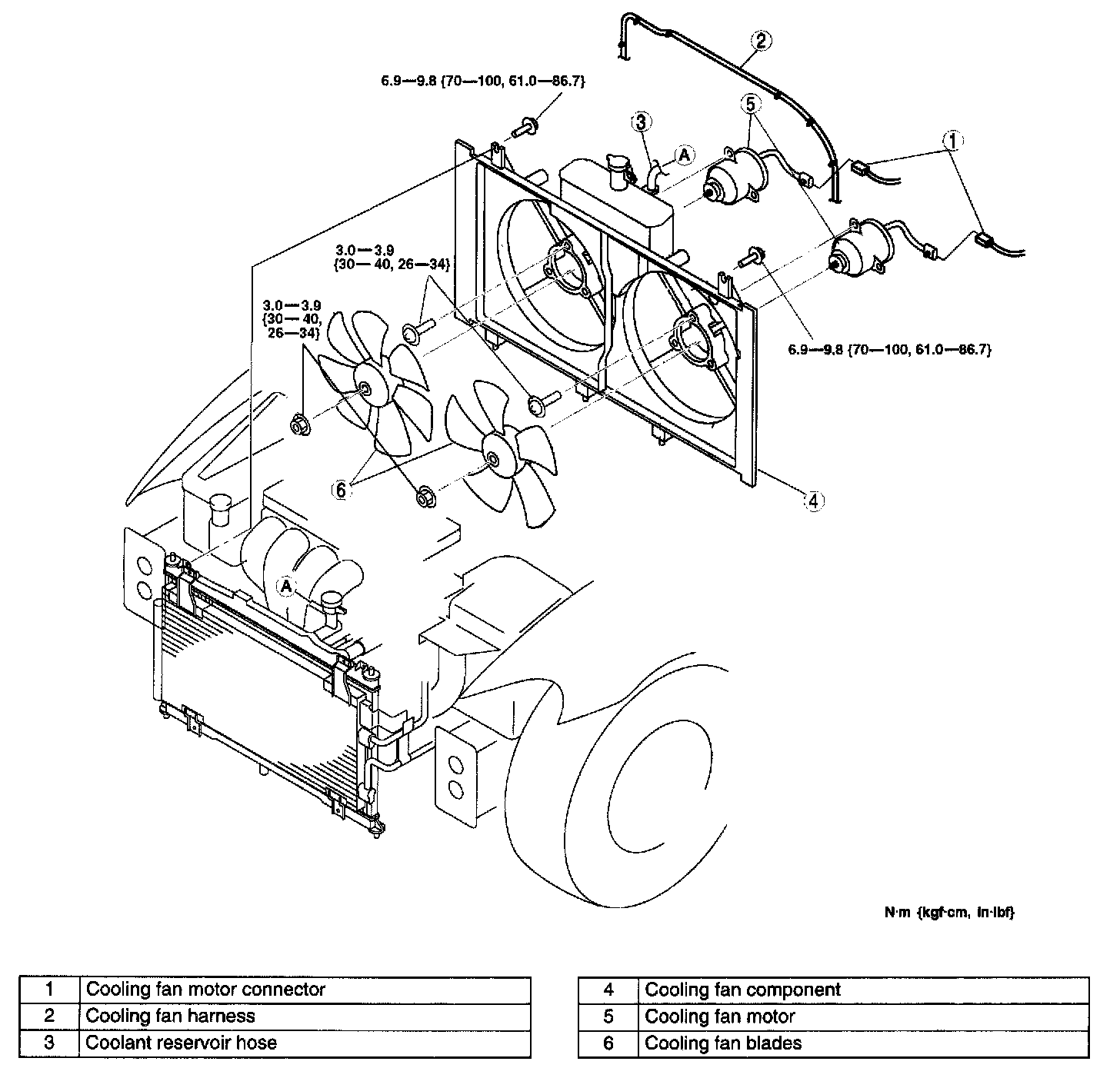

COOLING FAN REMOVAL/INSTALLATION





1. Disconnect the negative battery cable.
2. Remove the shroud panel.
3. Remove the cooler pipe stay.
4. Remove the oil hose stay. (ATX)
5. Remove in the order indicated in the table.
