Curiosii for ever!: Car repair manuals for everyone.

Home >> Mazda >> 2007 >> 6 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C-01 to C-05

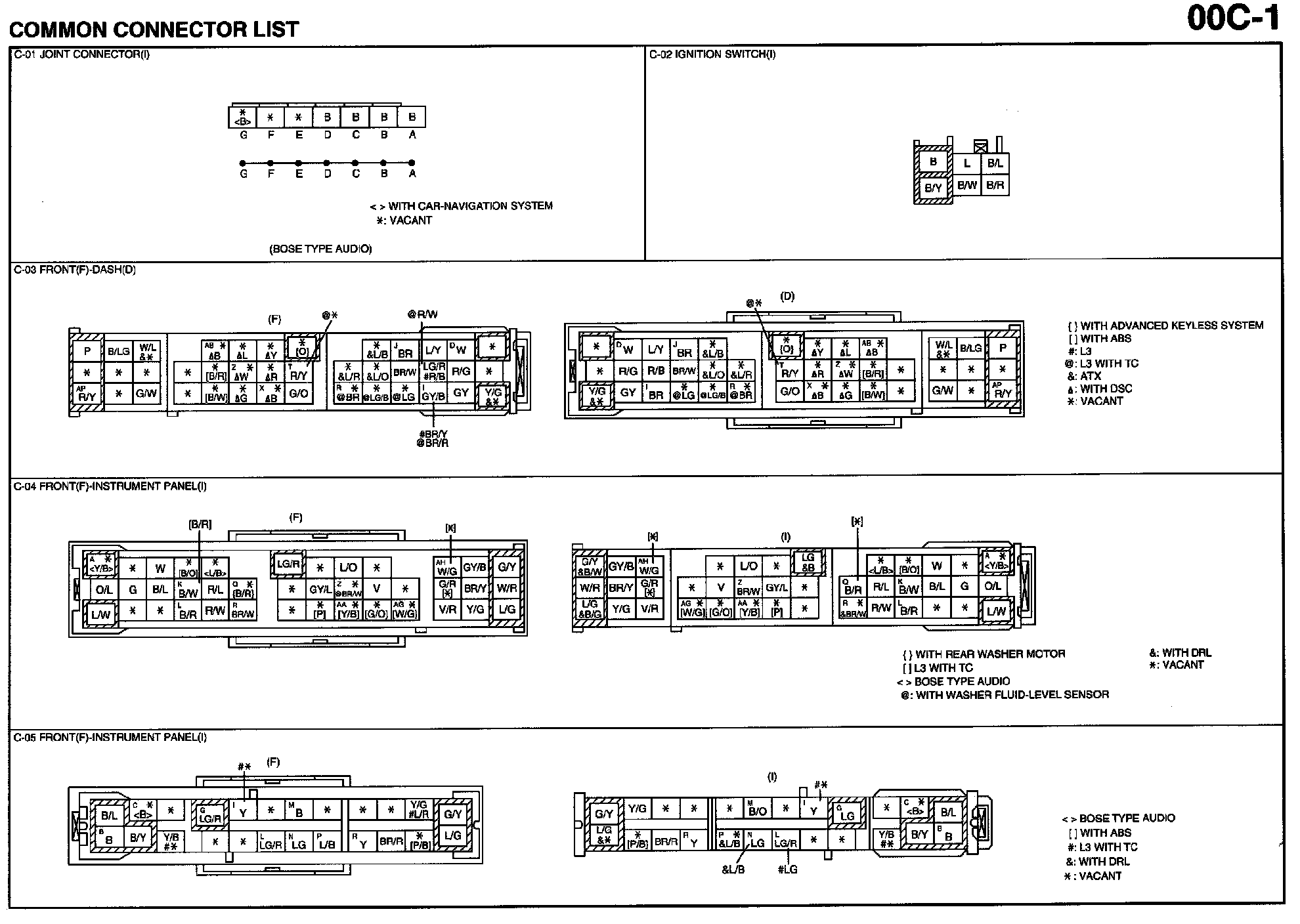

C-01 to C-05

C-01 to C-05:
