Evaporative Emissions System: Diagrams

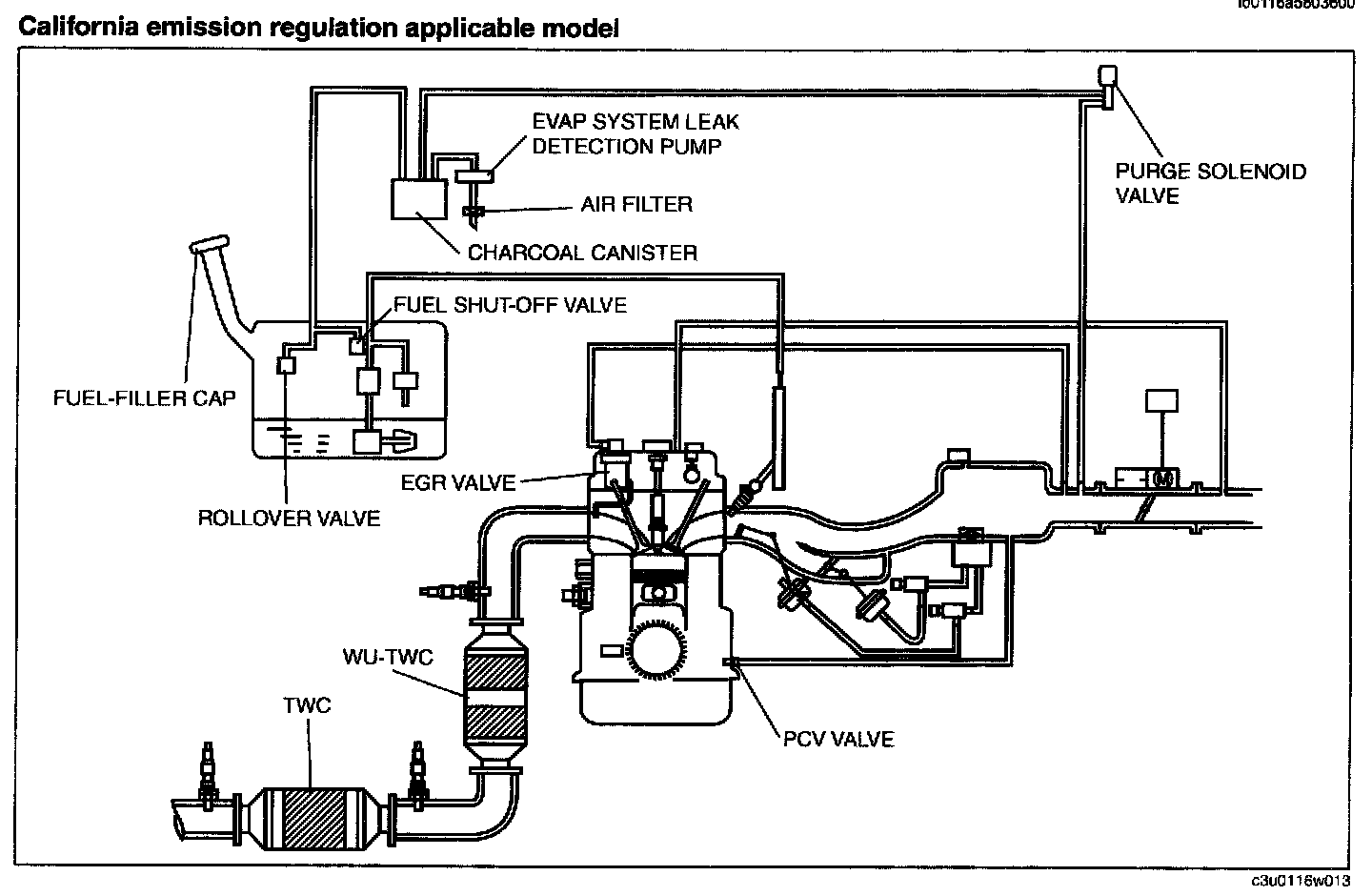

California Emission Regulation Applicable Model:

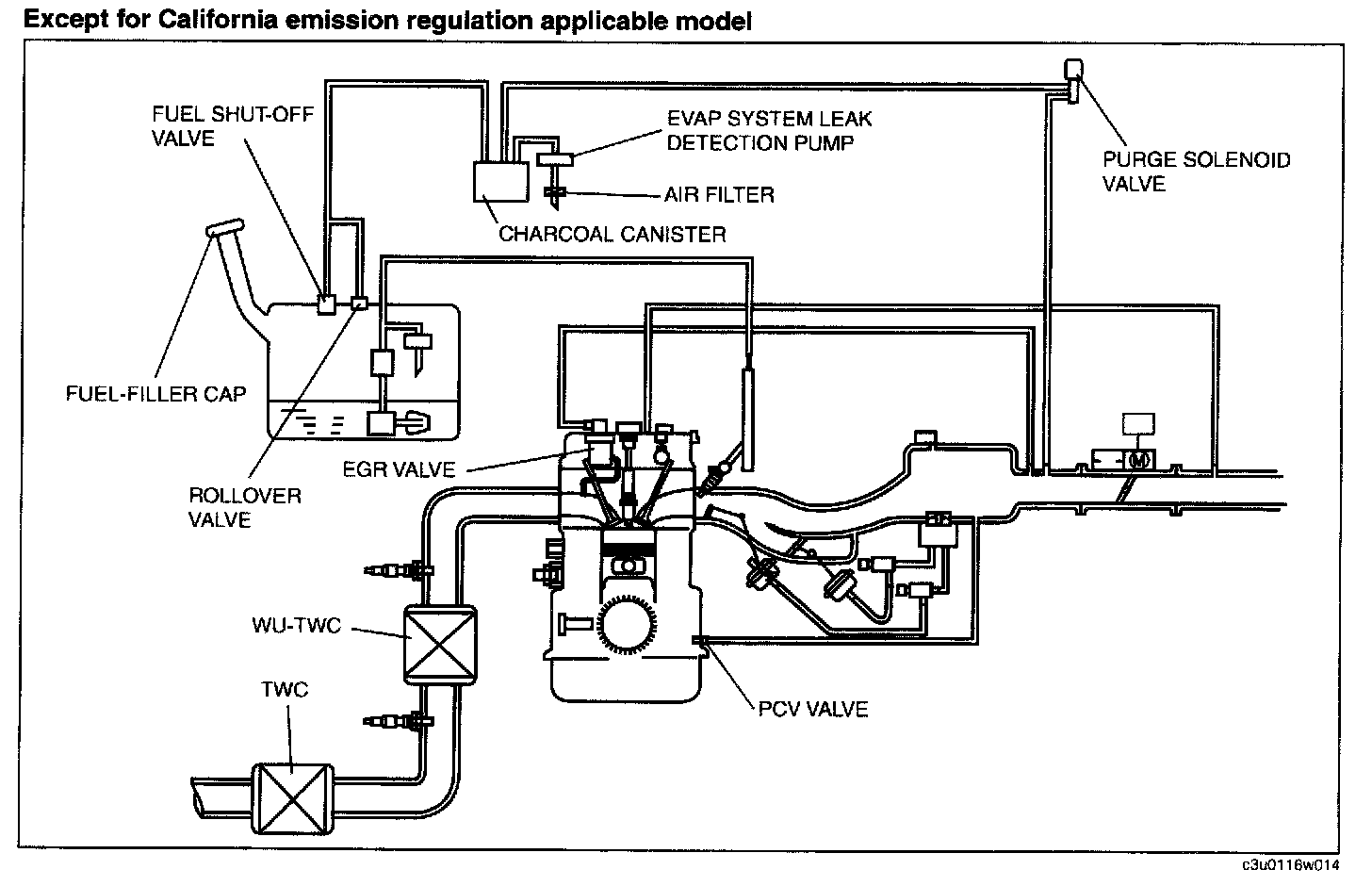

Except For California Emission Regulation Applicable Model:
