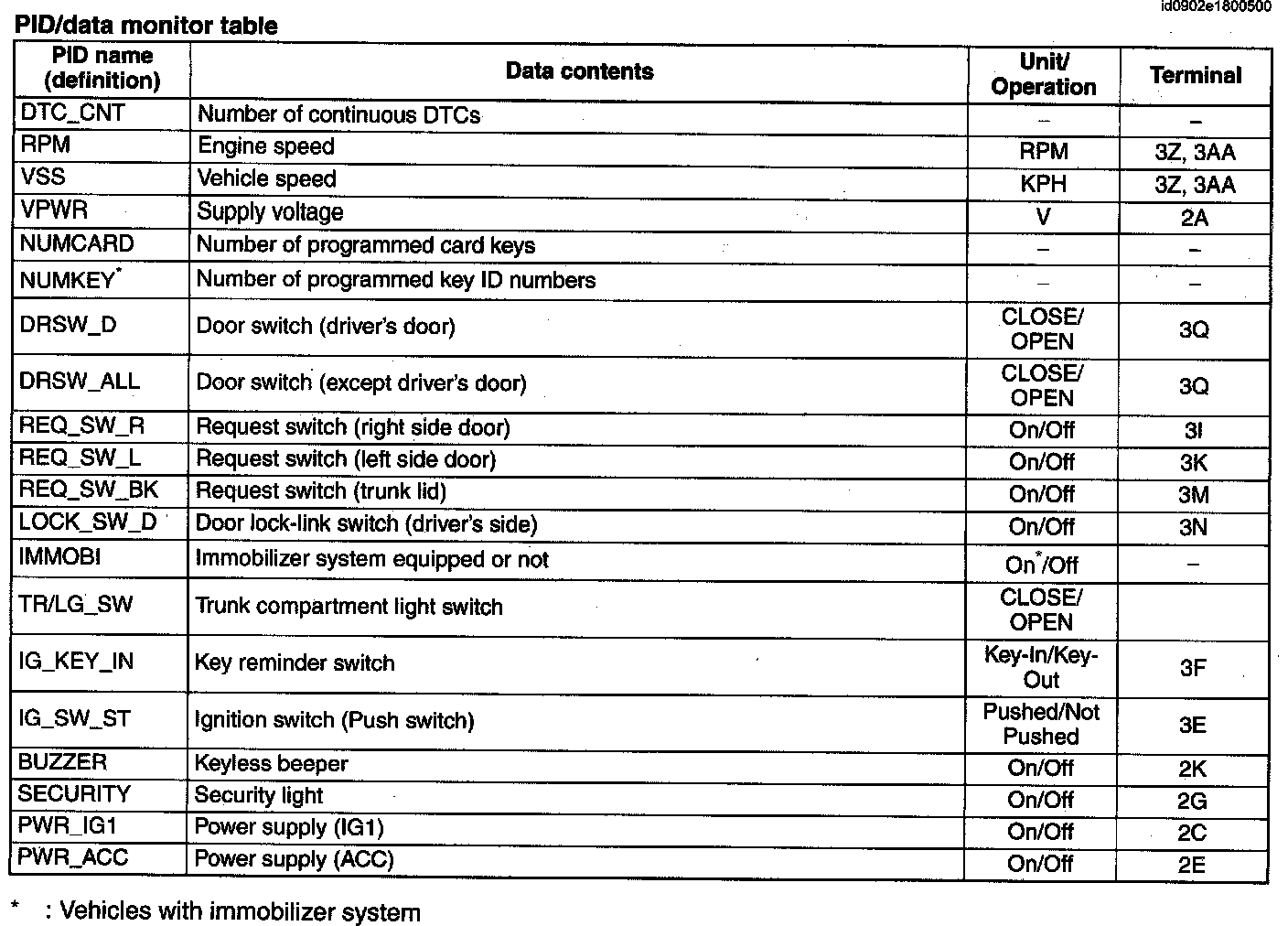

PID/Data Monitor Table[Advanced Keyless System]
PID/Data Monitor Table[Advanced Keyless System]
PID/Data Monitor Table:
