Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2006
>>
6 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
System Diagram
System Diagram

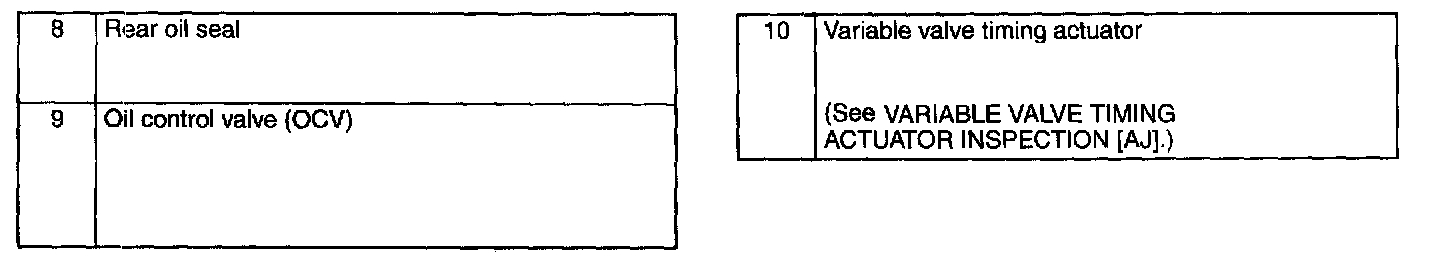

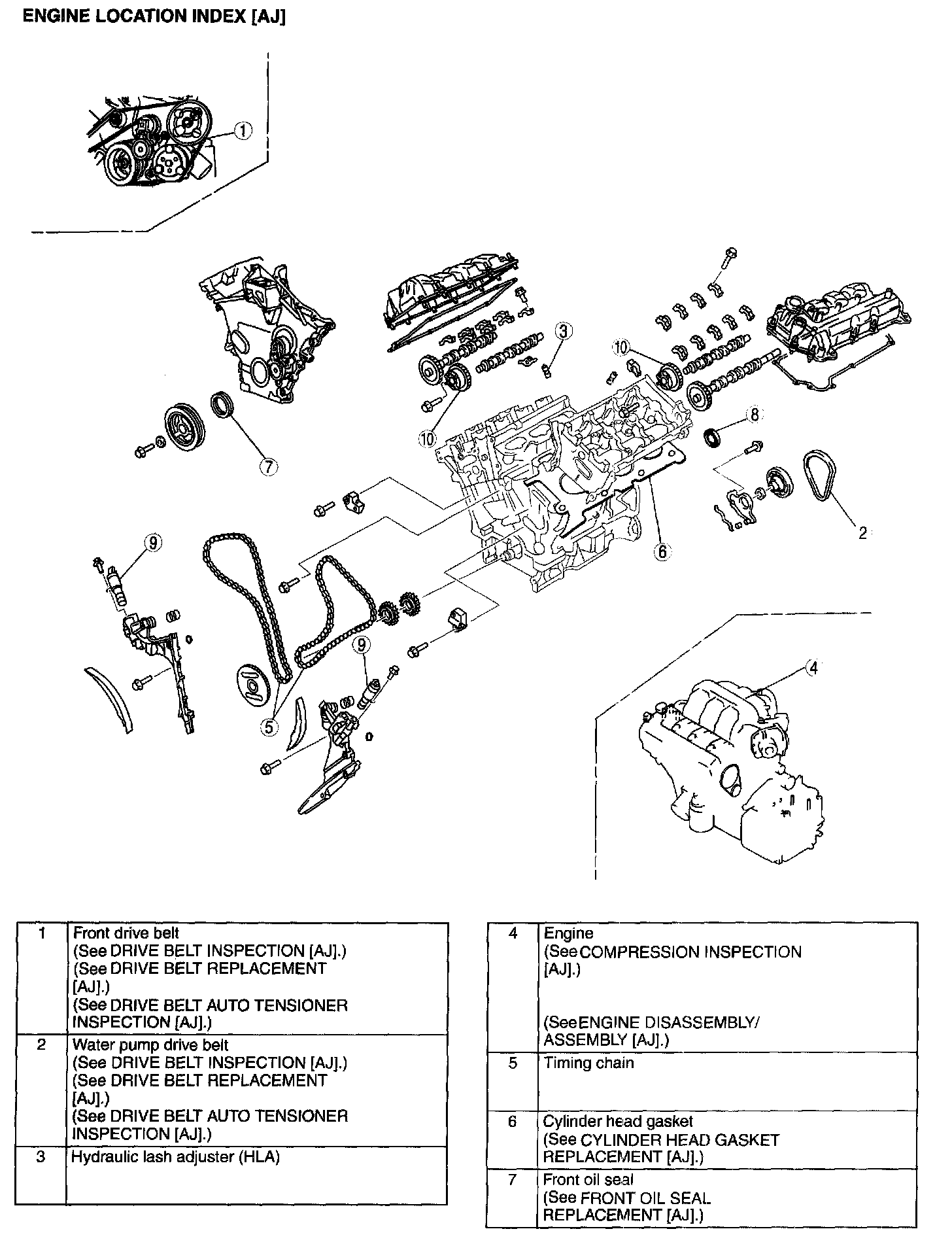

ENGINE LOCATION INDEX [AJ]:
ENGINE LOCATION INDEX [AJ]:
