System Schematic

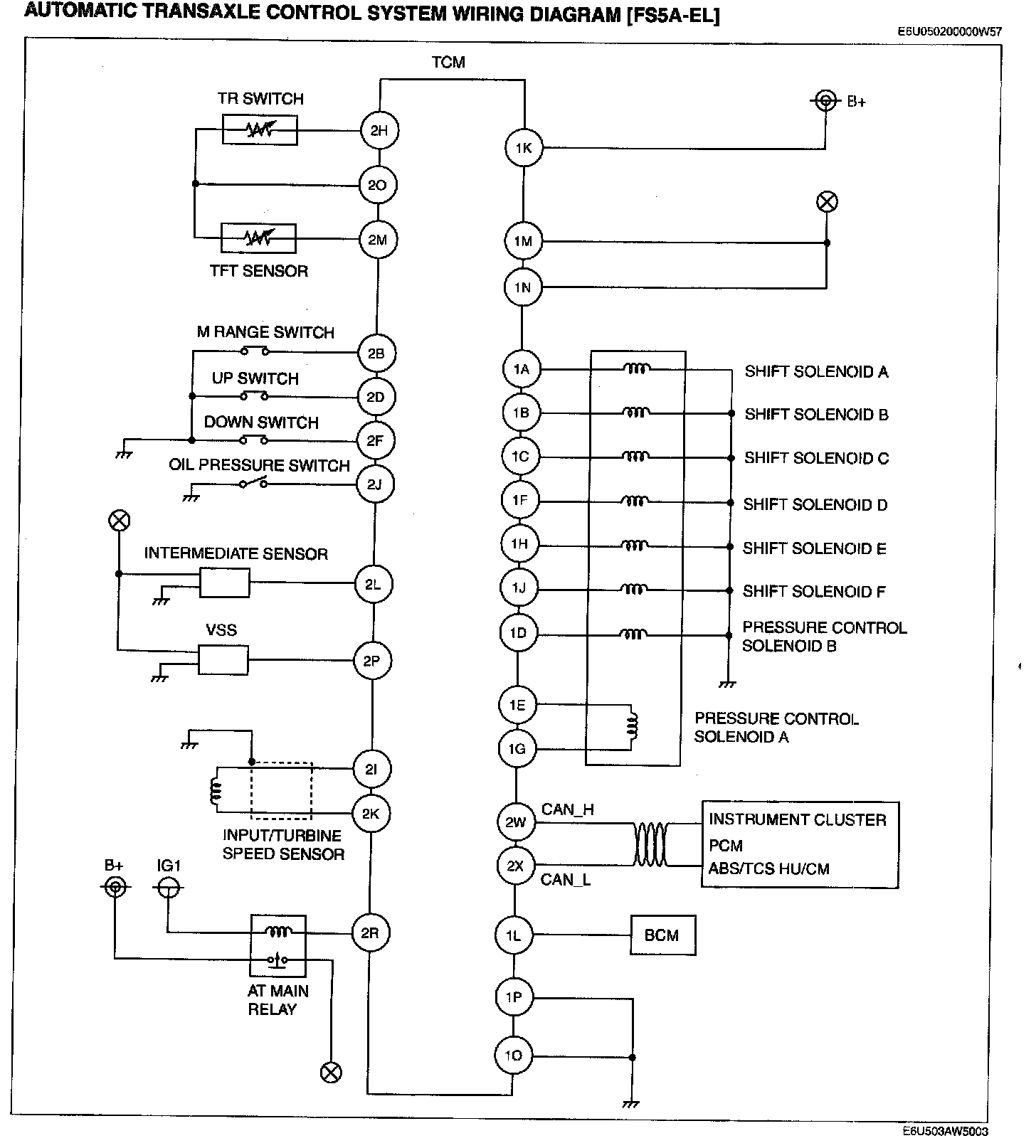

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM [FS5A-EL]:

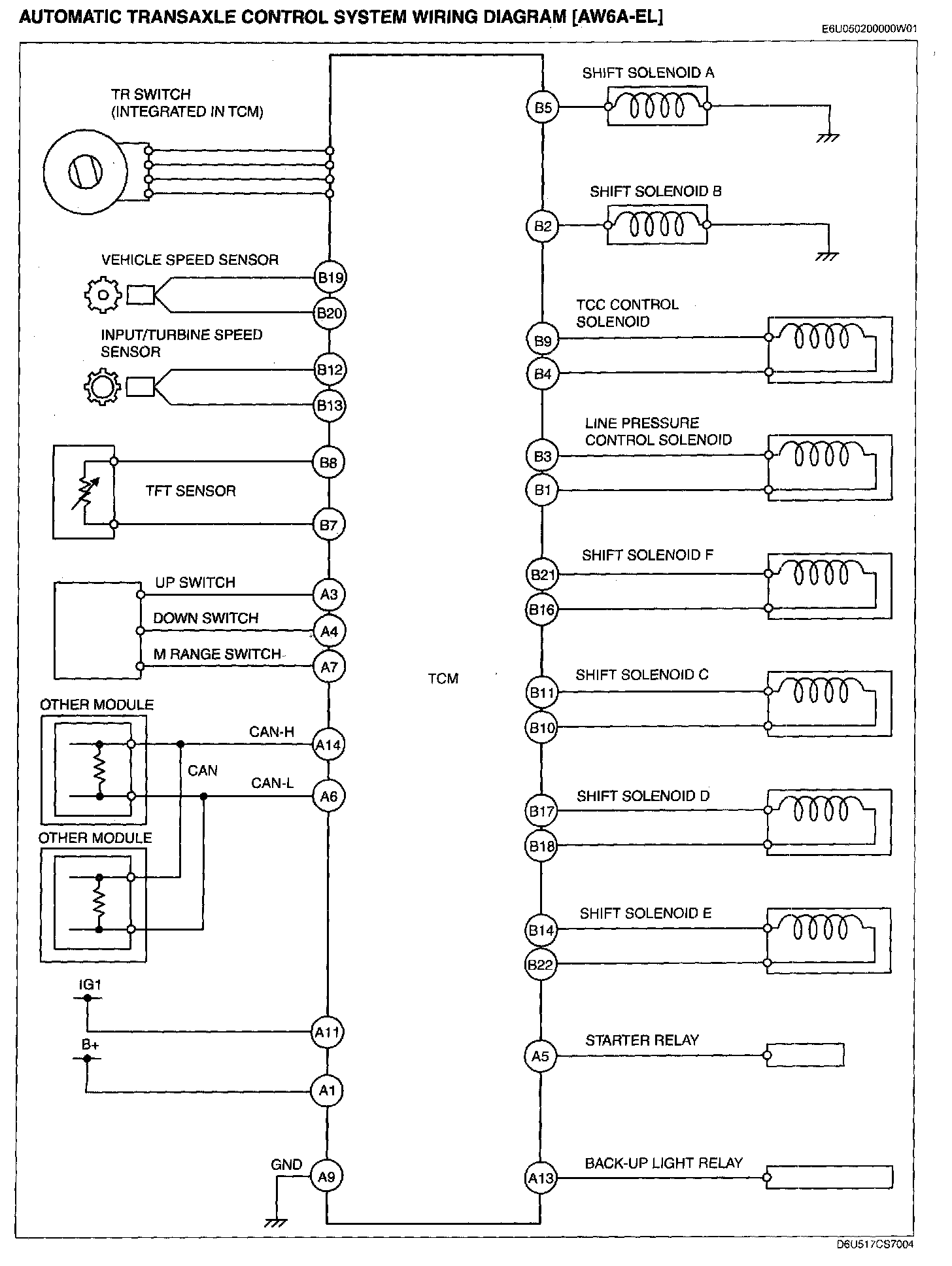

AUTOMATIC TRANSAXLE CONTROL SYSTEM WIRING DIAGRAM (AW6A-EL):
