System Schematic

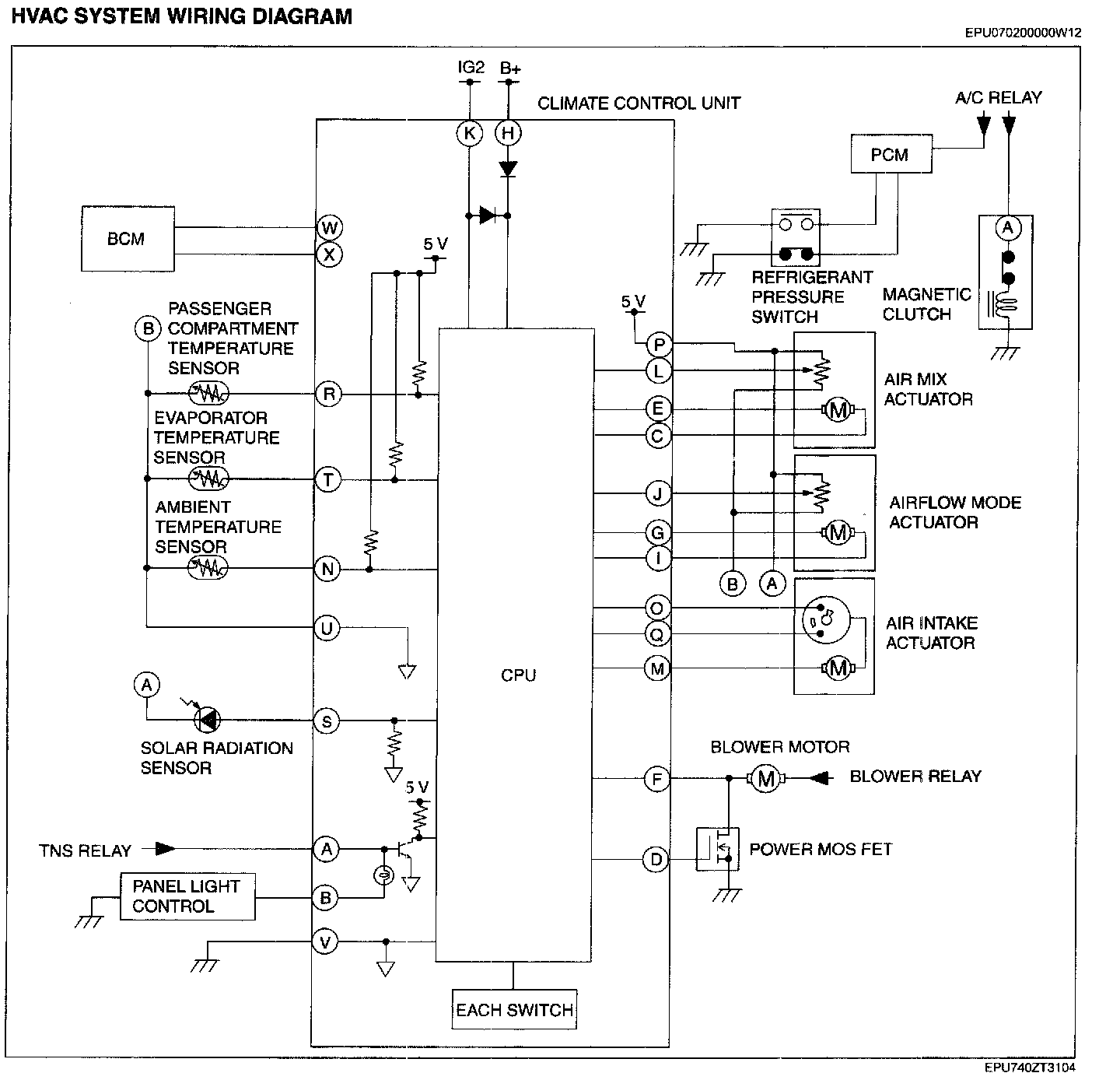

HAVC System Wiring Diagram:

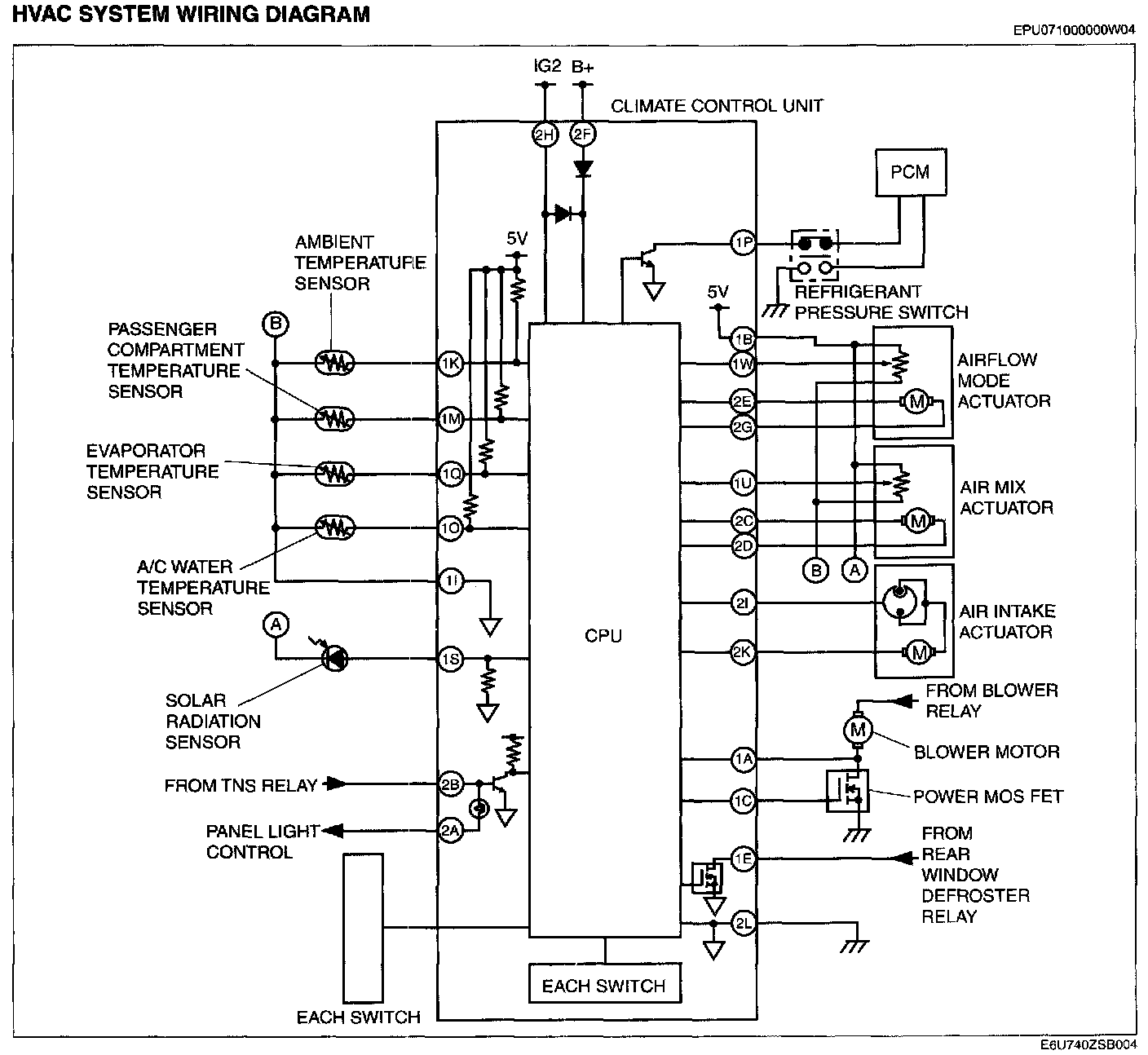

HVAC System Wiring Diagram:

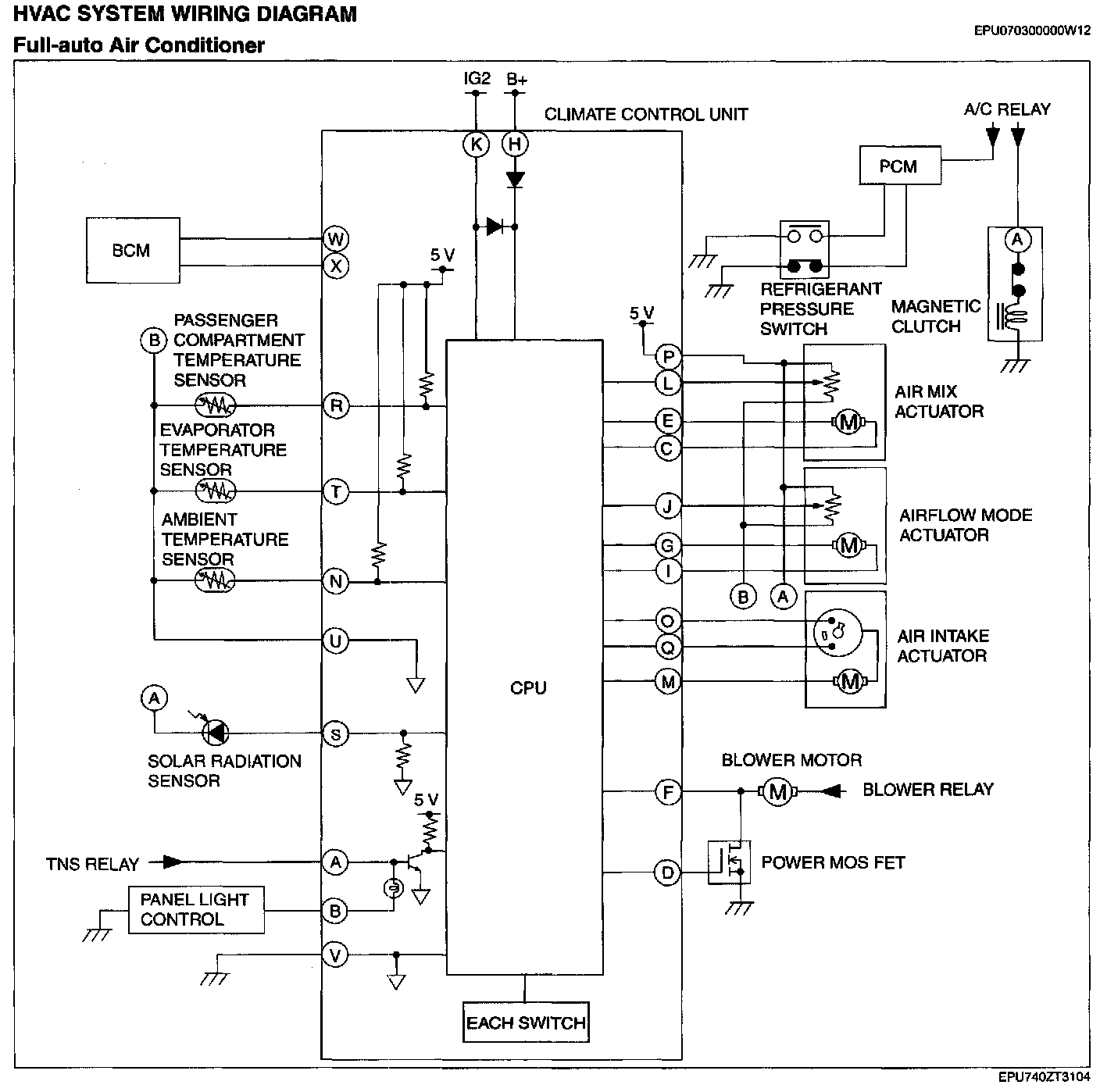

HVAC System Wiring Diagram:

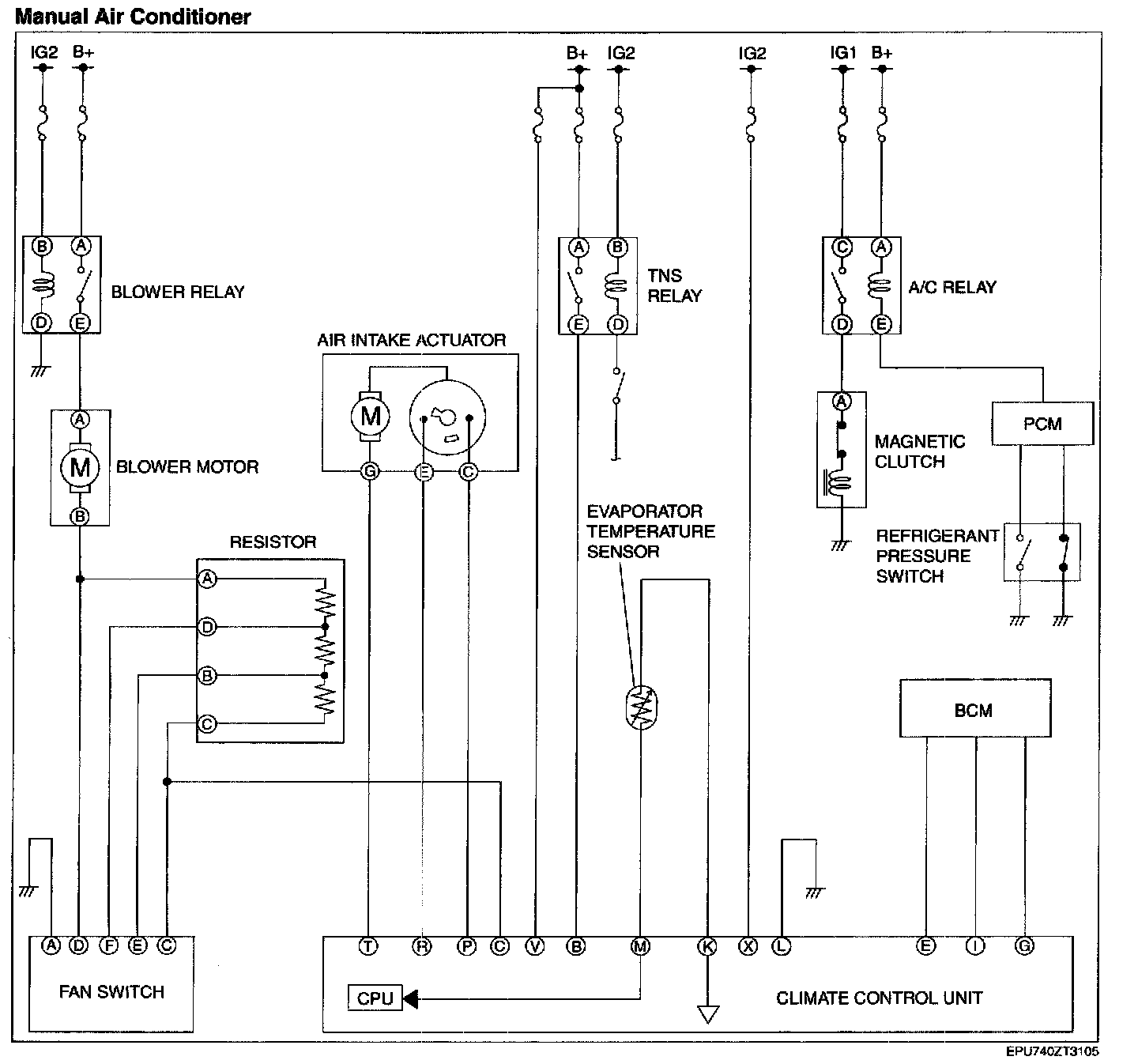

HVAC System Wiring Diagram:
