Daytime Running Lamp
>>
Daytime Running Lamp Control Unit
Daytime Running Lamp Control Unit

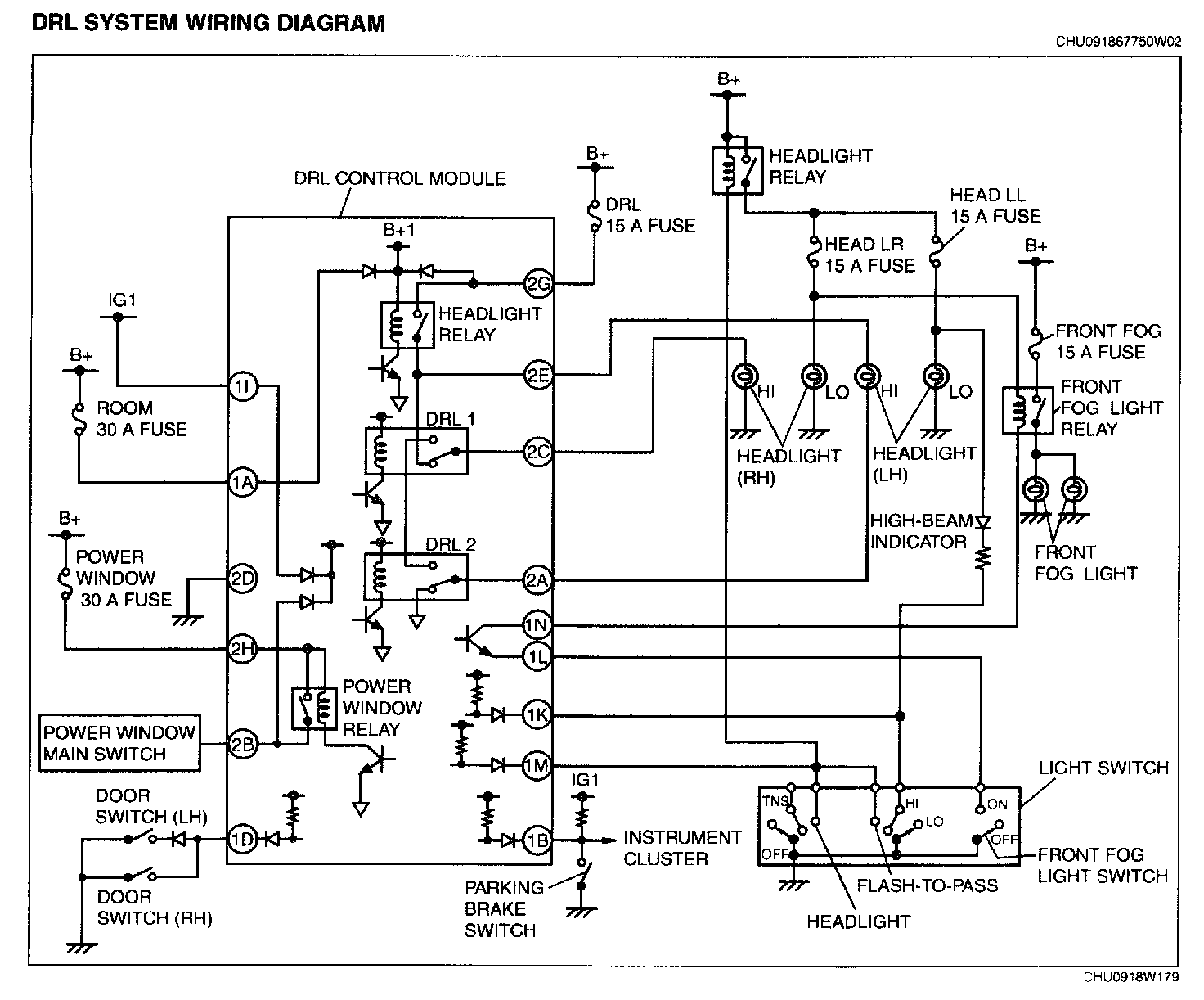

Drl System Wring Diagram:
