System Schematic
System Schematic

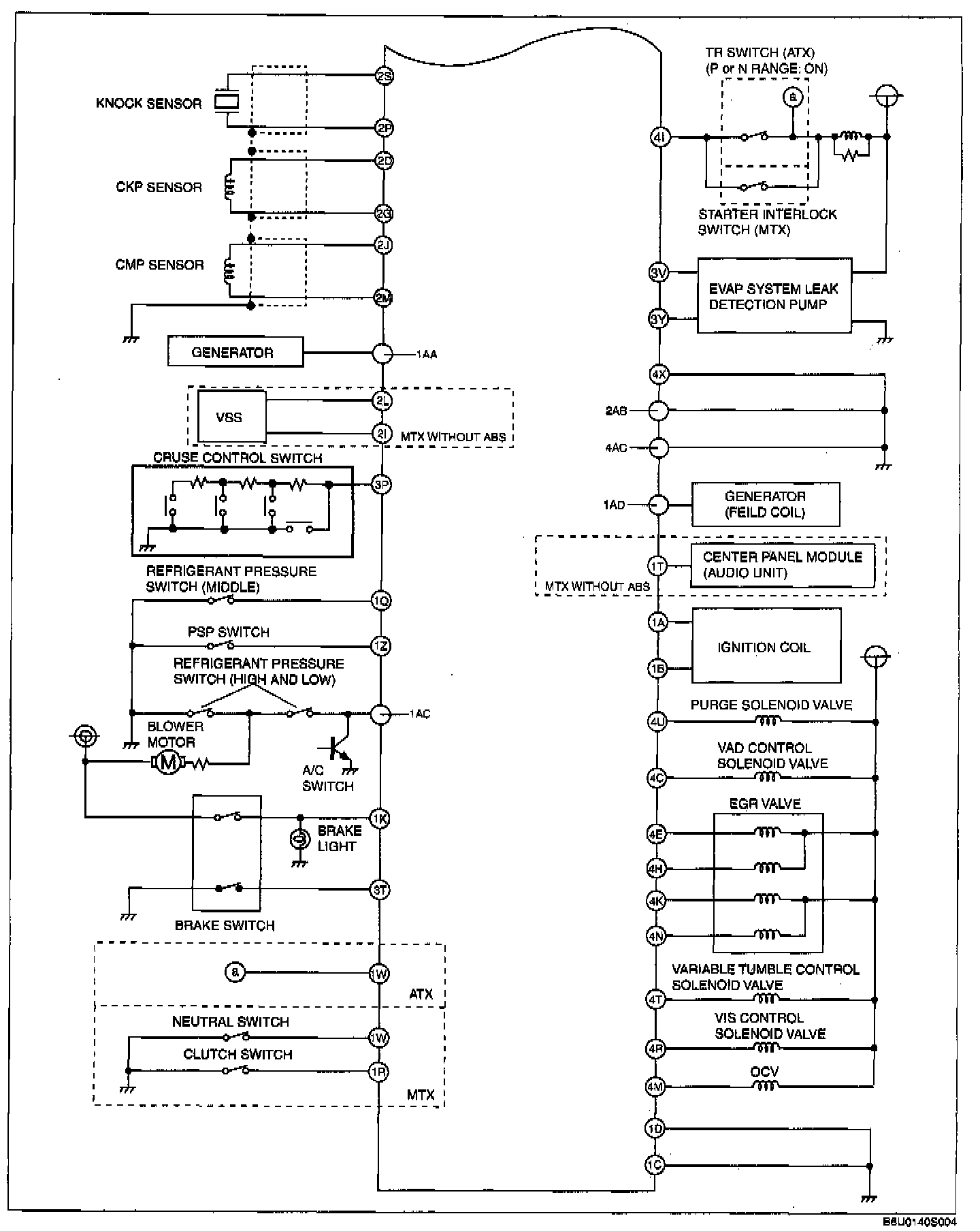

Control System Wiring Diagram Part 1:

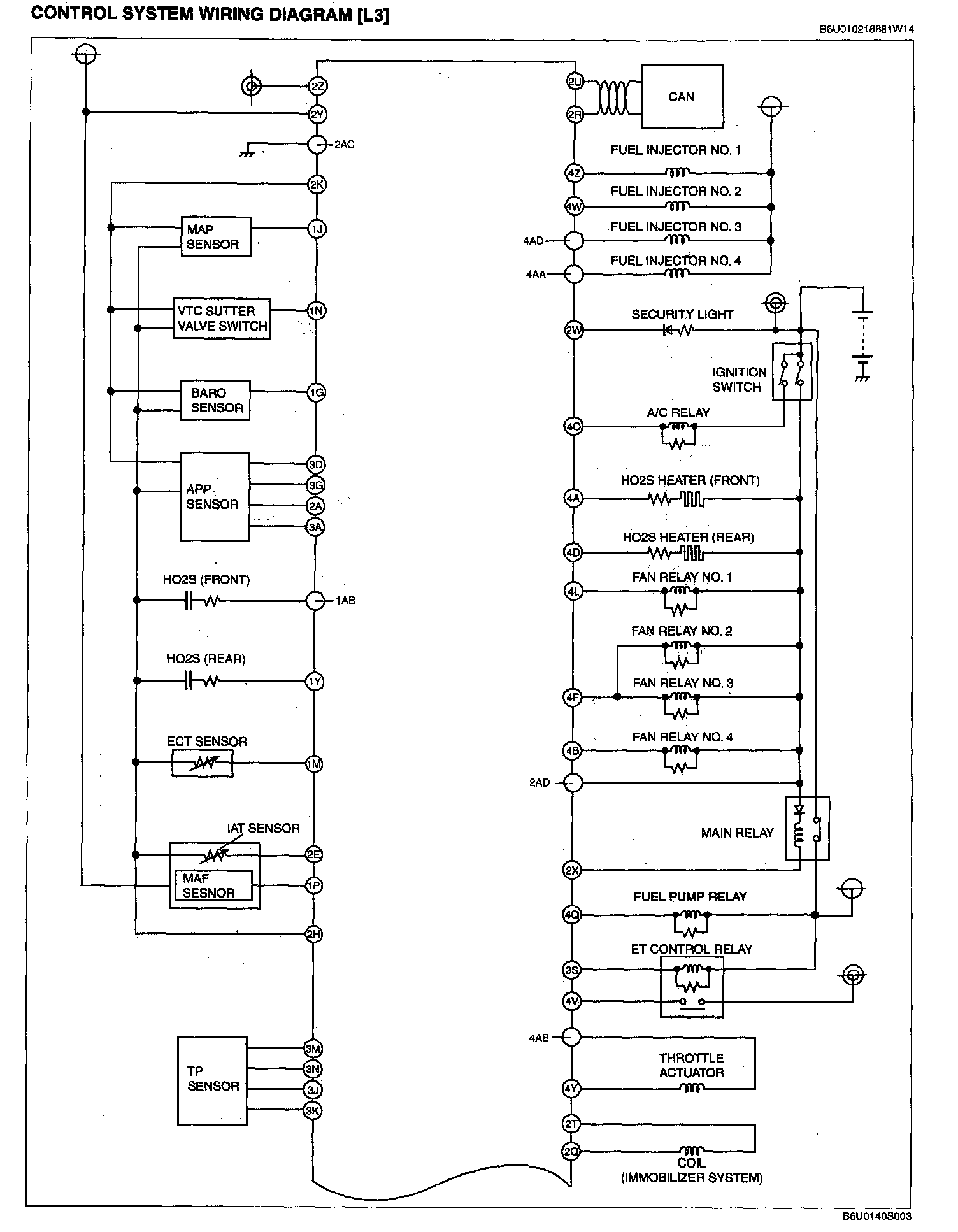

Control System Wiring Diagram Part 2:

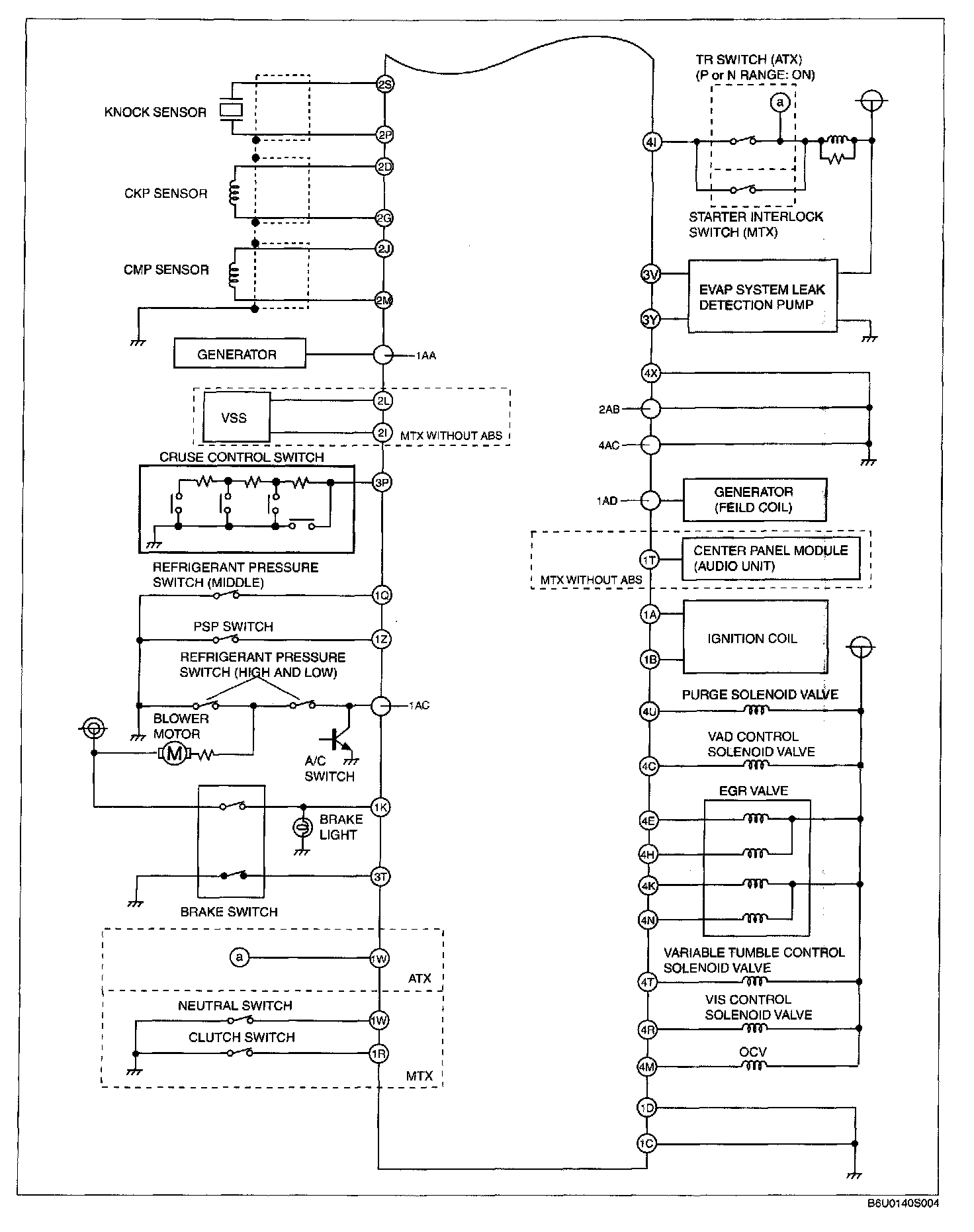

Control System Wiring Diagram Part 1:

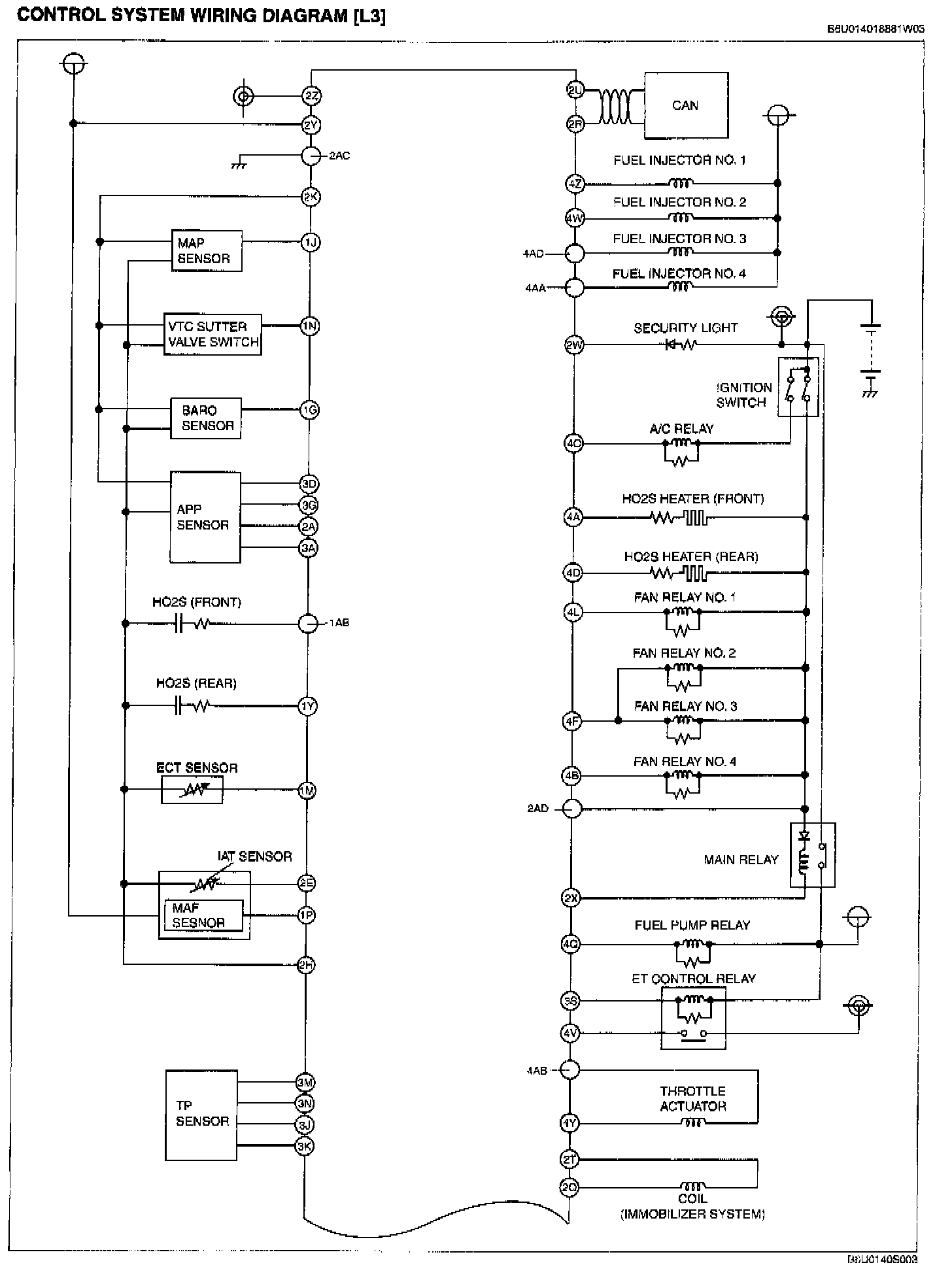

Control System Wiring Diagram Part 2:
