System Schematic

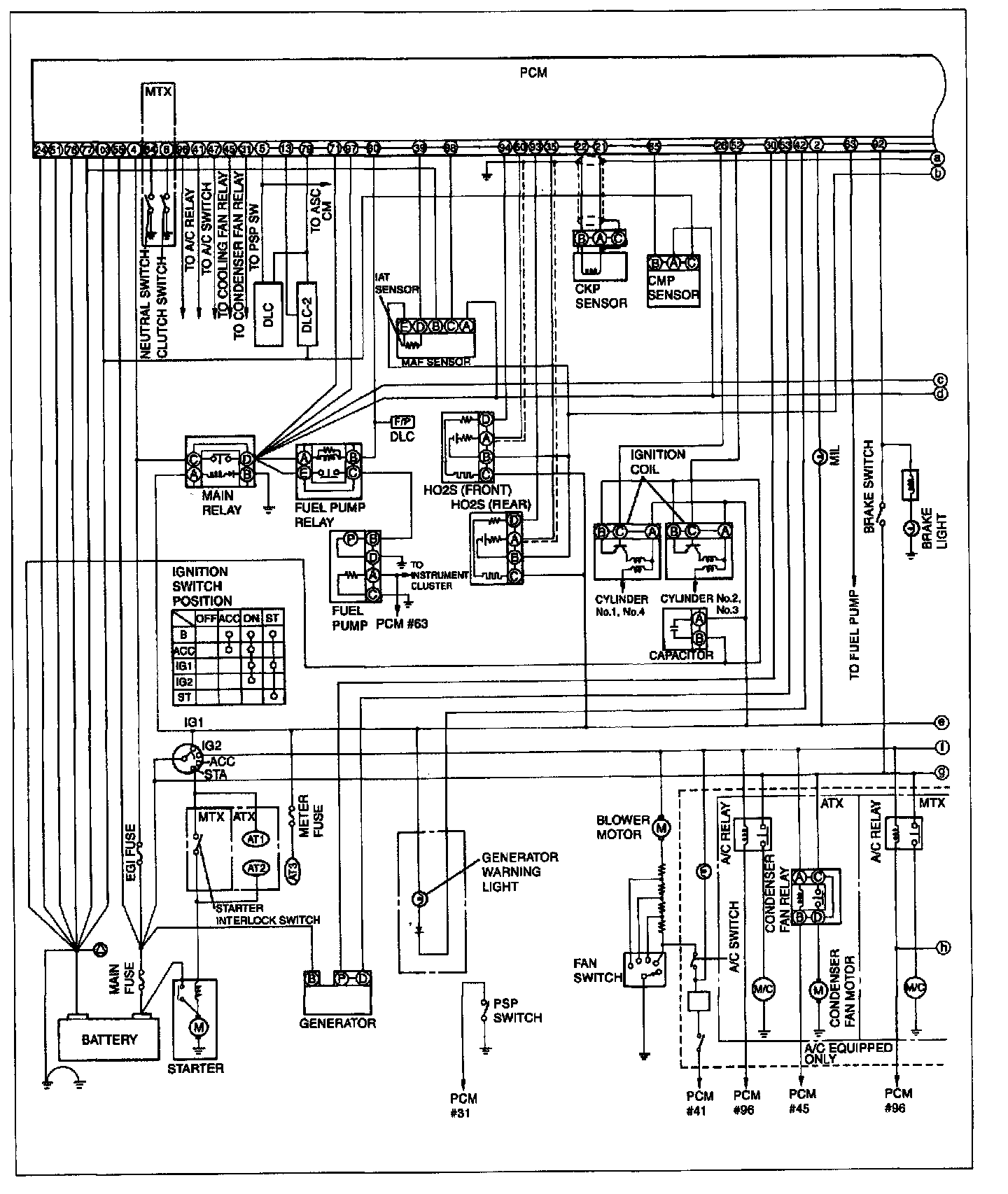

Control System Wiring Diagram (Part 1):

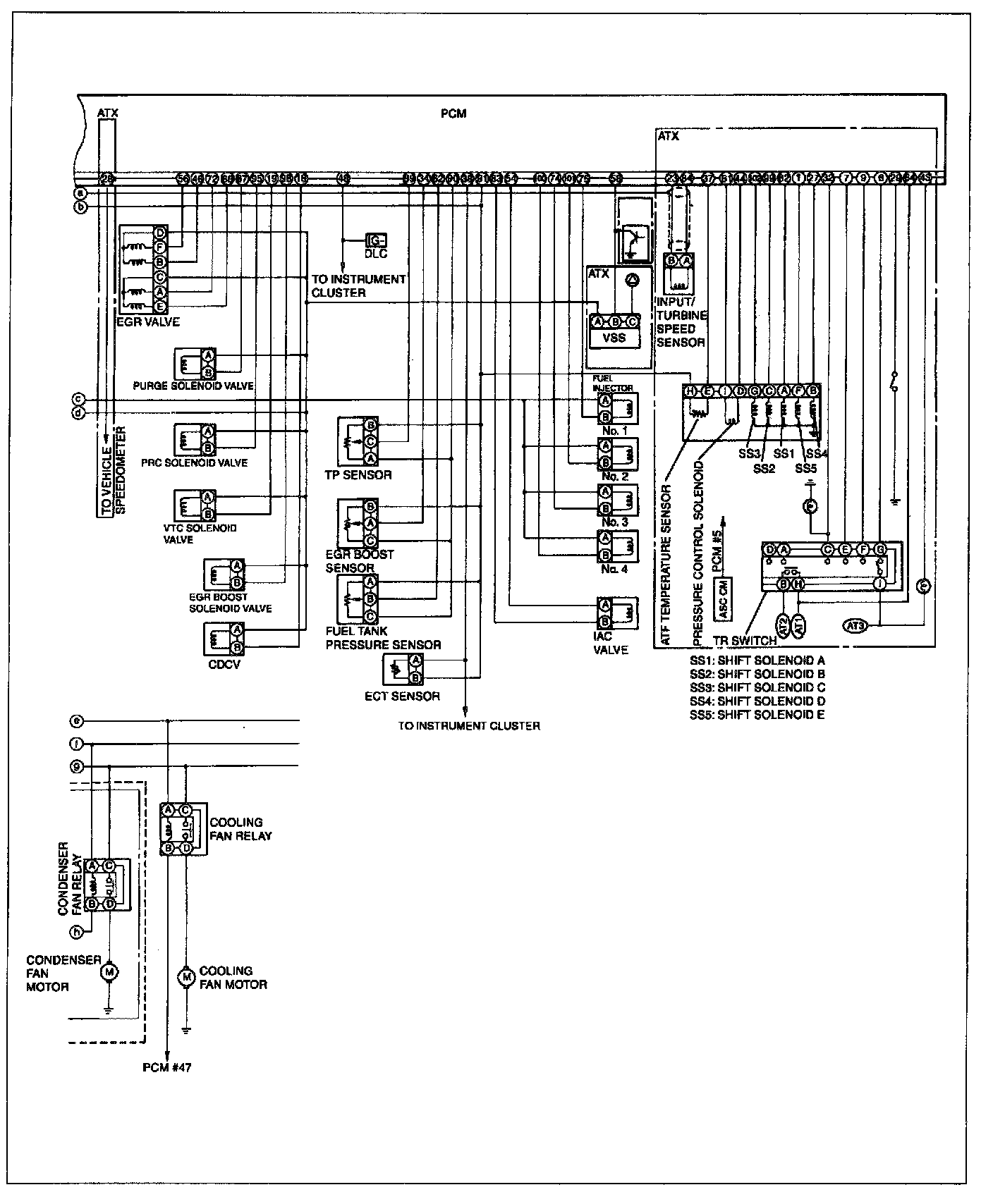

Control System Wiring Diagram (Part 2):

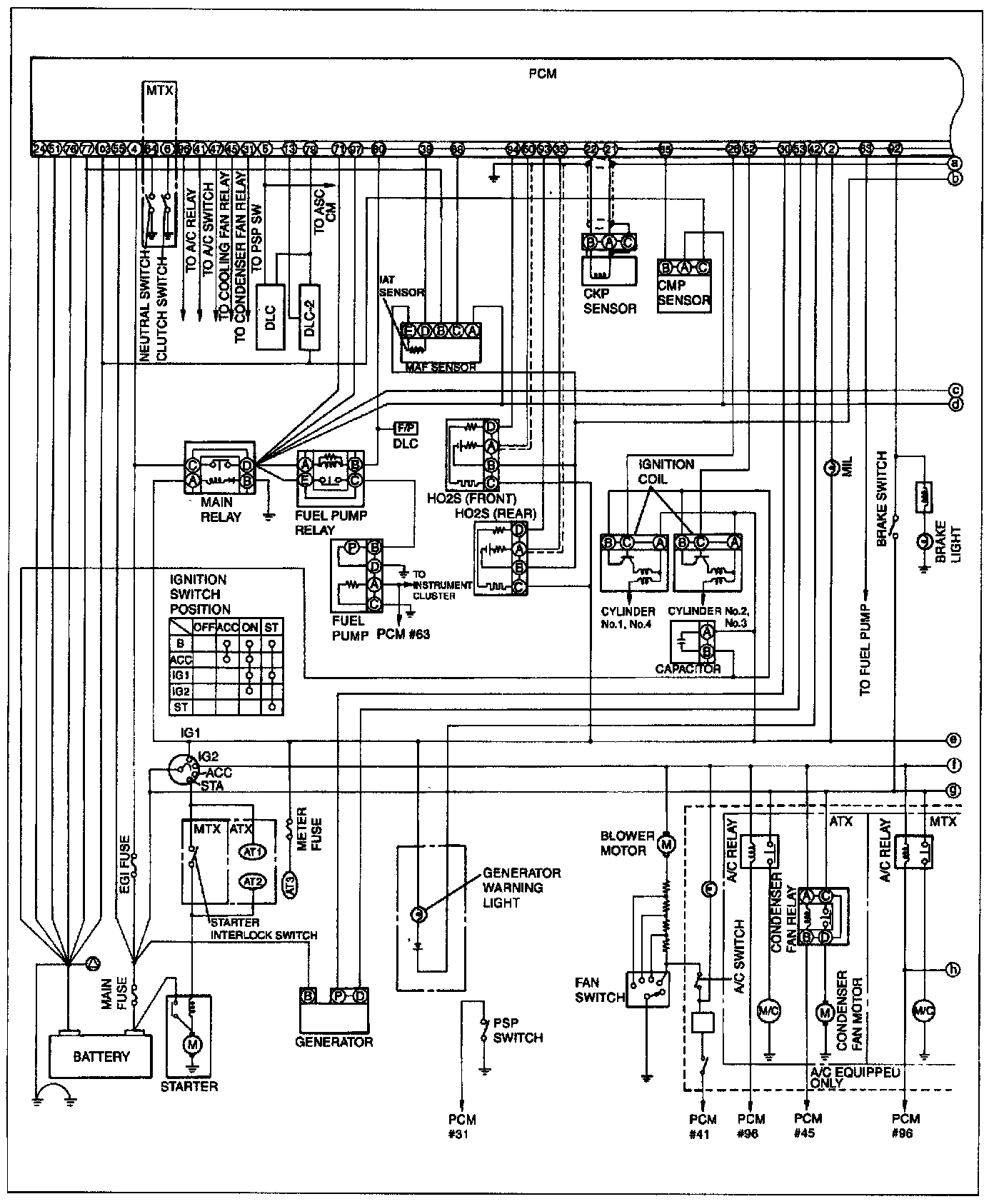

Control System Wiring Diagram (Part 1):

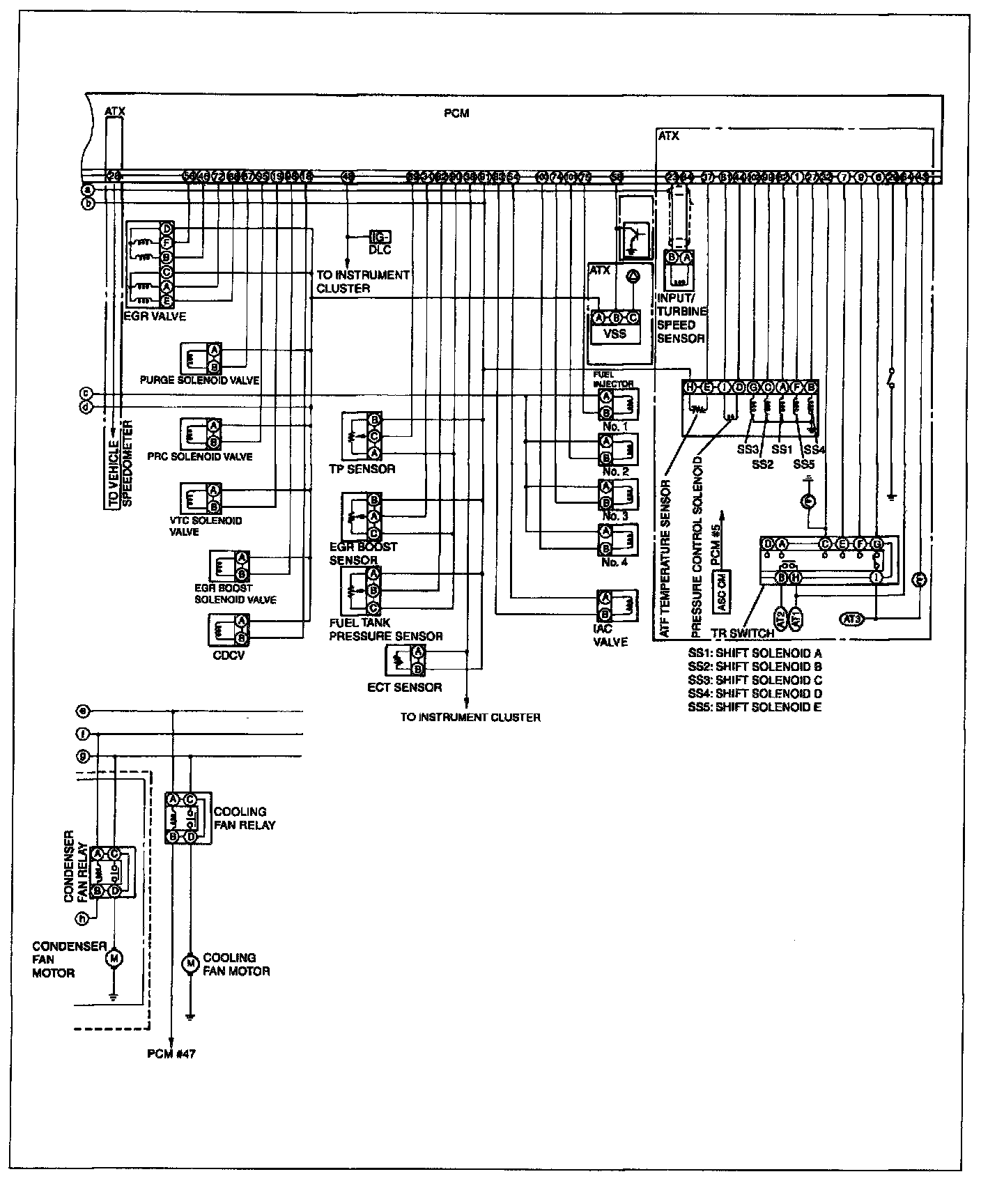

Control System Wiring Diagram (Part 2):
