Mazda
>>
2003
>>
Protege SE (CANADA) L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
System Diagram

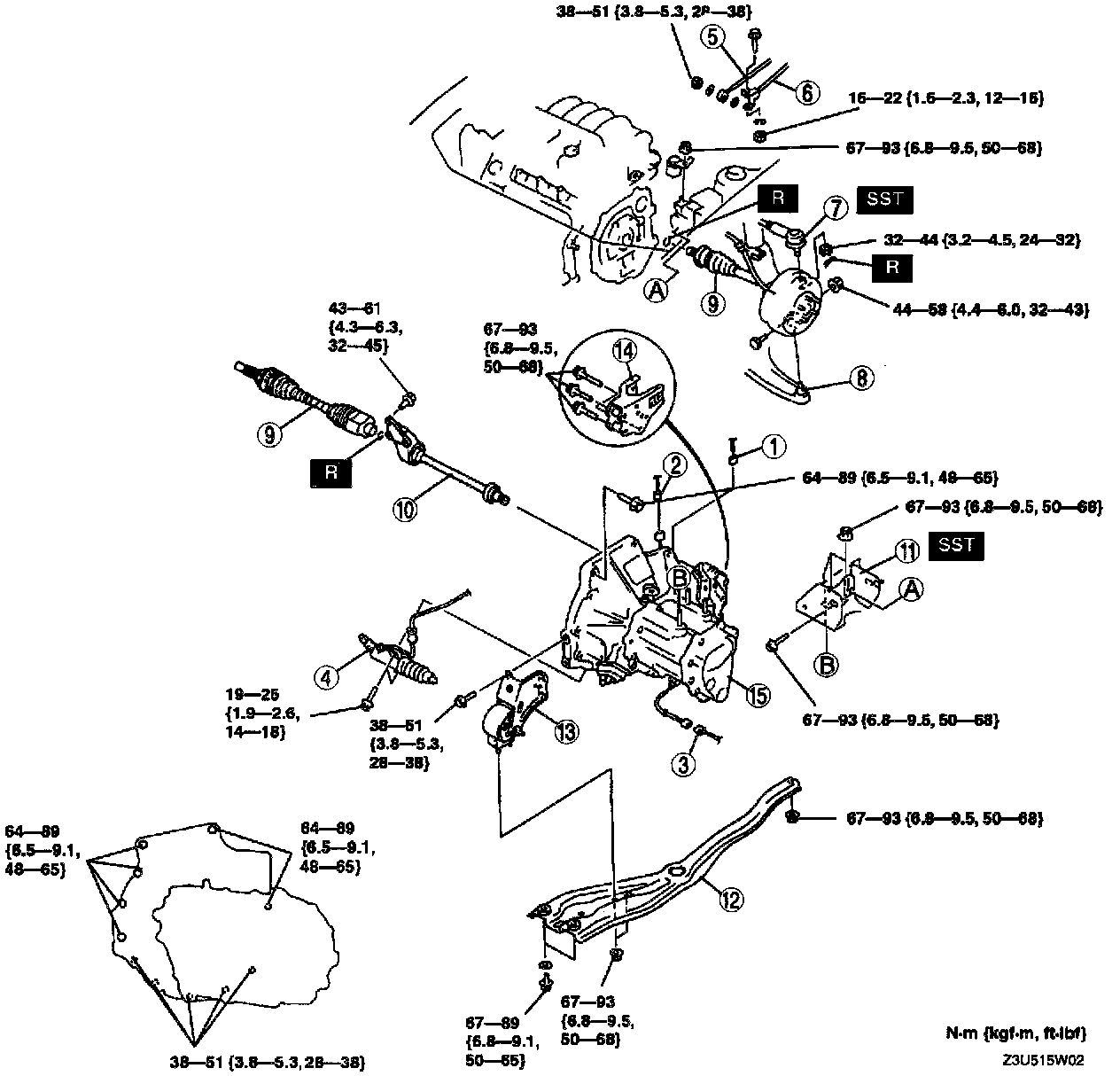

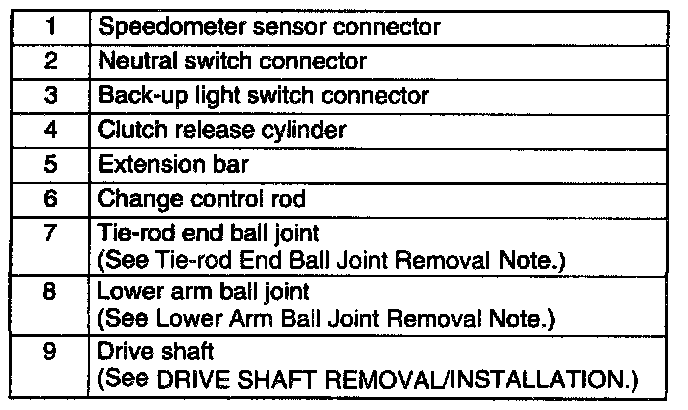

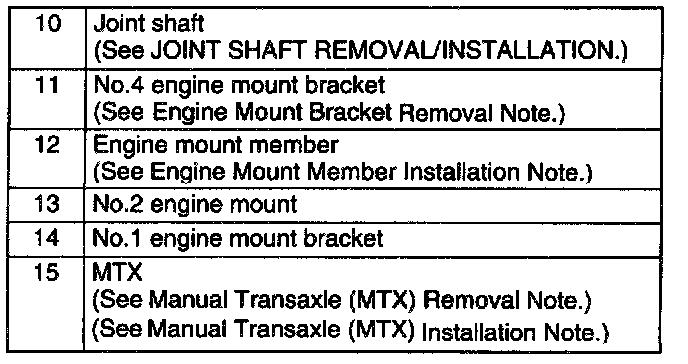

MANUAL TRANSAXLE (MTX) REMOVAL/INSTALLATION
Part 1 of 3
Part 2 of 3
Part 3 of 3
