Removal and Installation

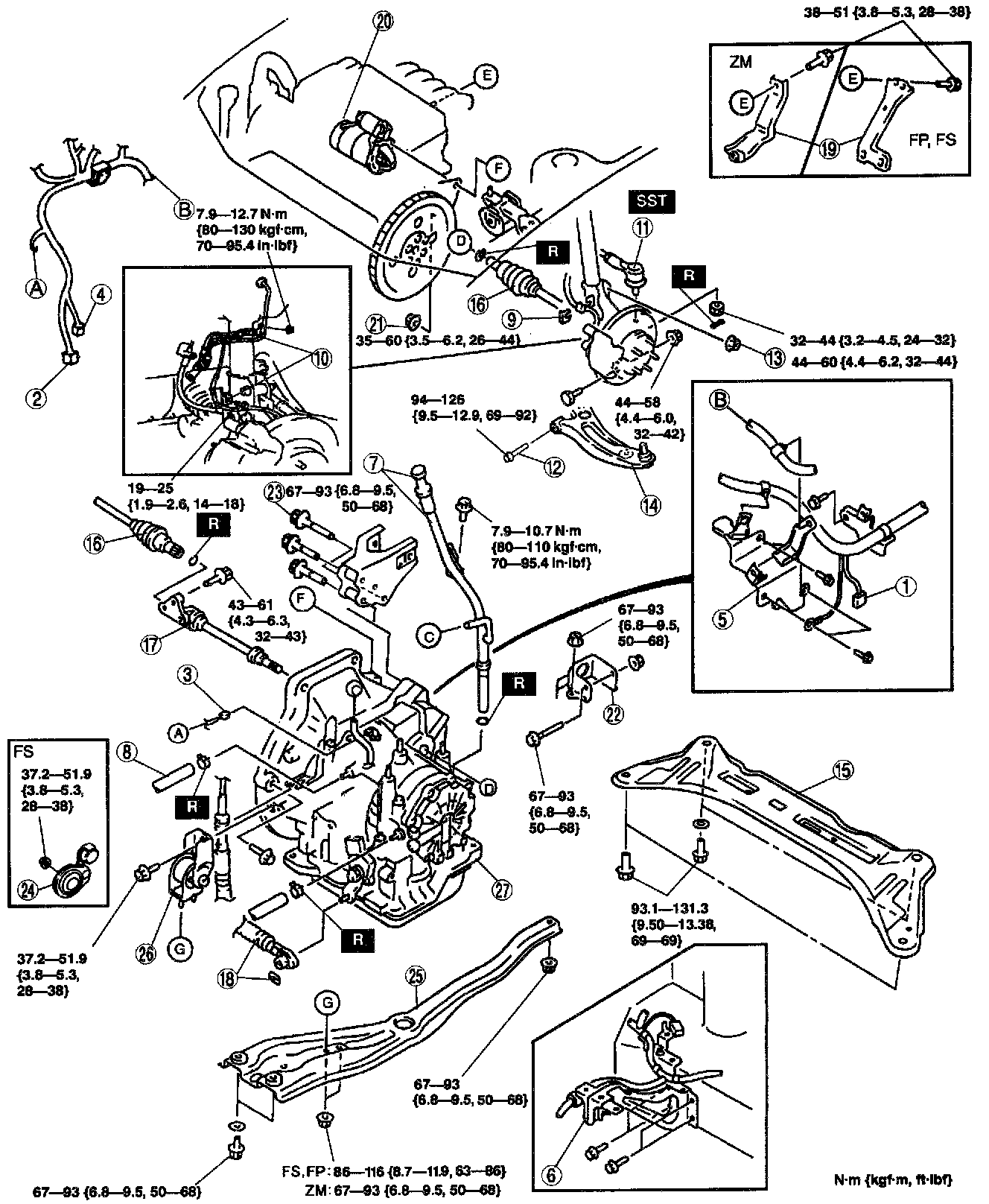

AUTOMATIC TRANSAXLE (ATX) REPLACEMENT W/ RELATED COMPONENTS





Part 1 of 5

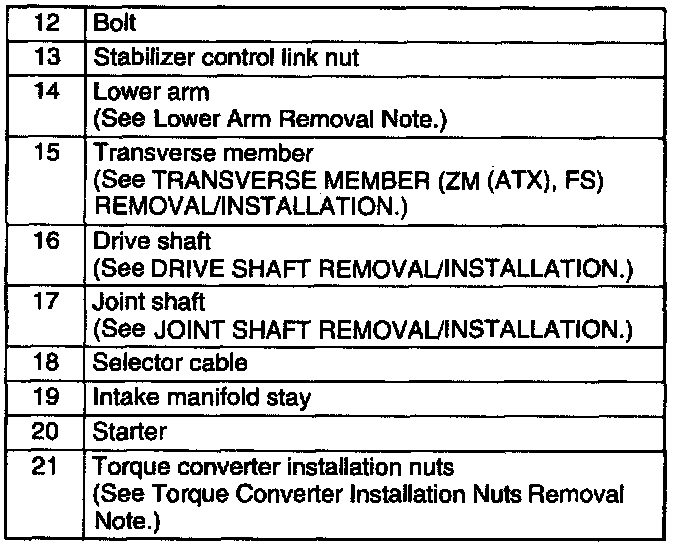

Part 2 of 5

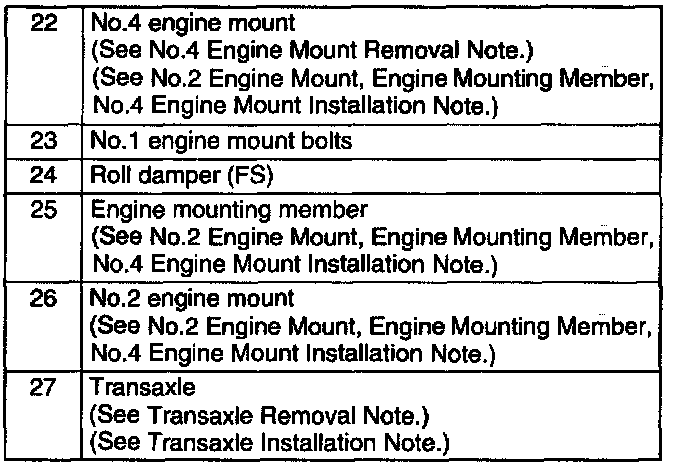

Part 3 of 5

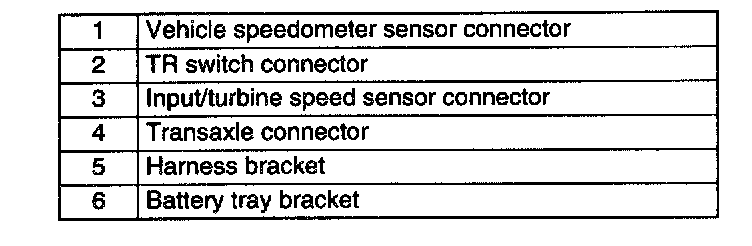

Part 4 of 5

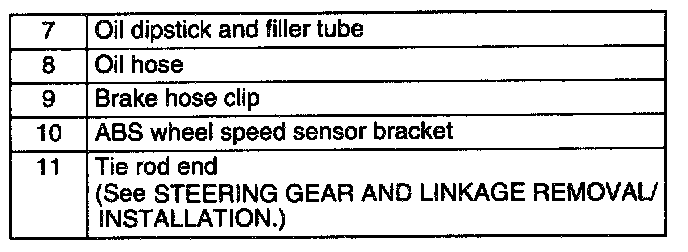

Part 5 of 5
