Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2003
>>
Protege L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
Fuse Block

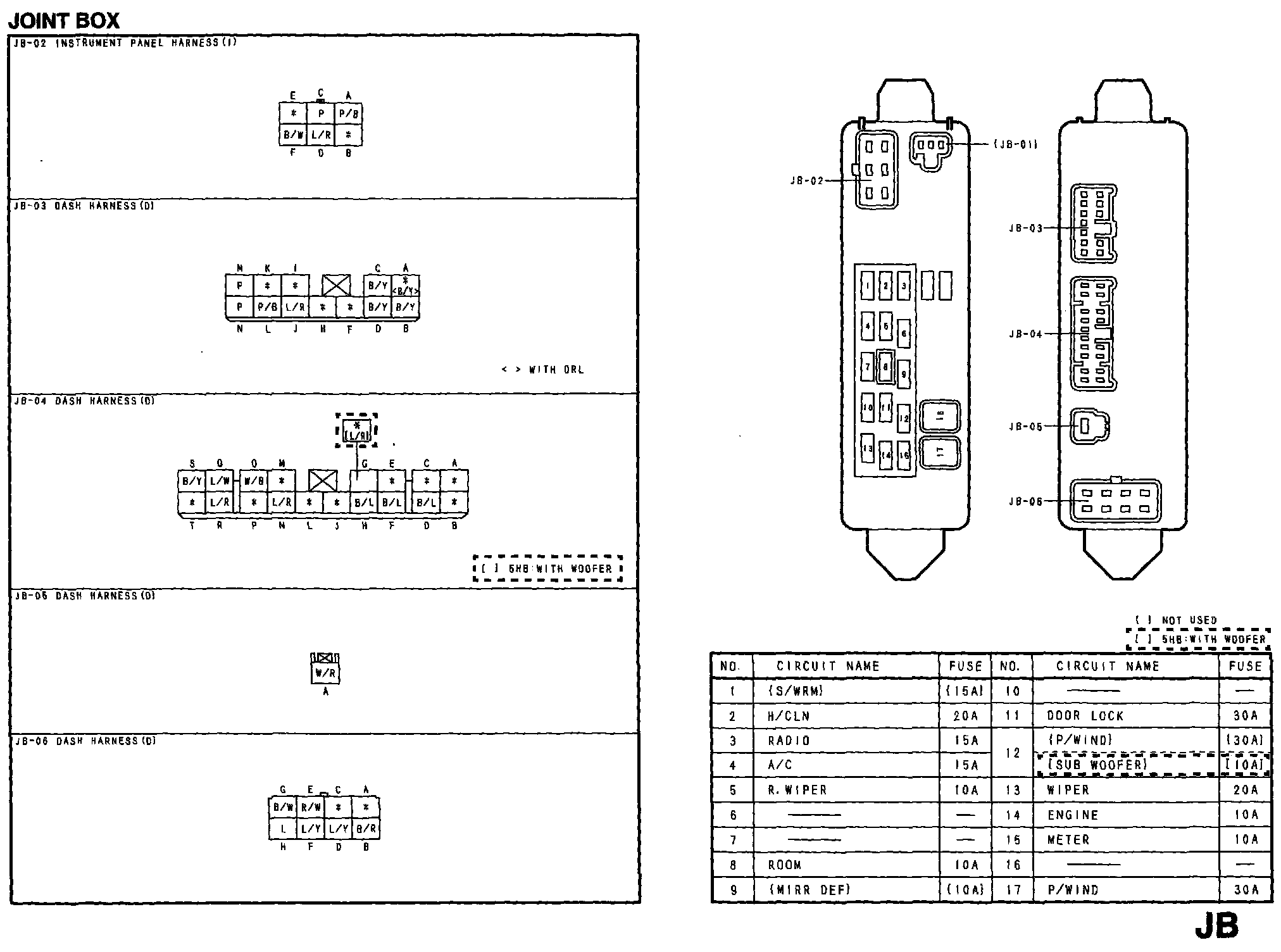

Diagram JB:

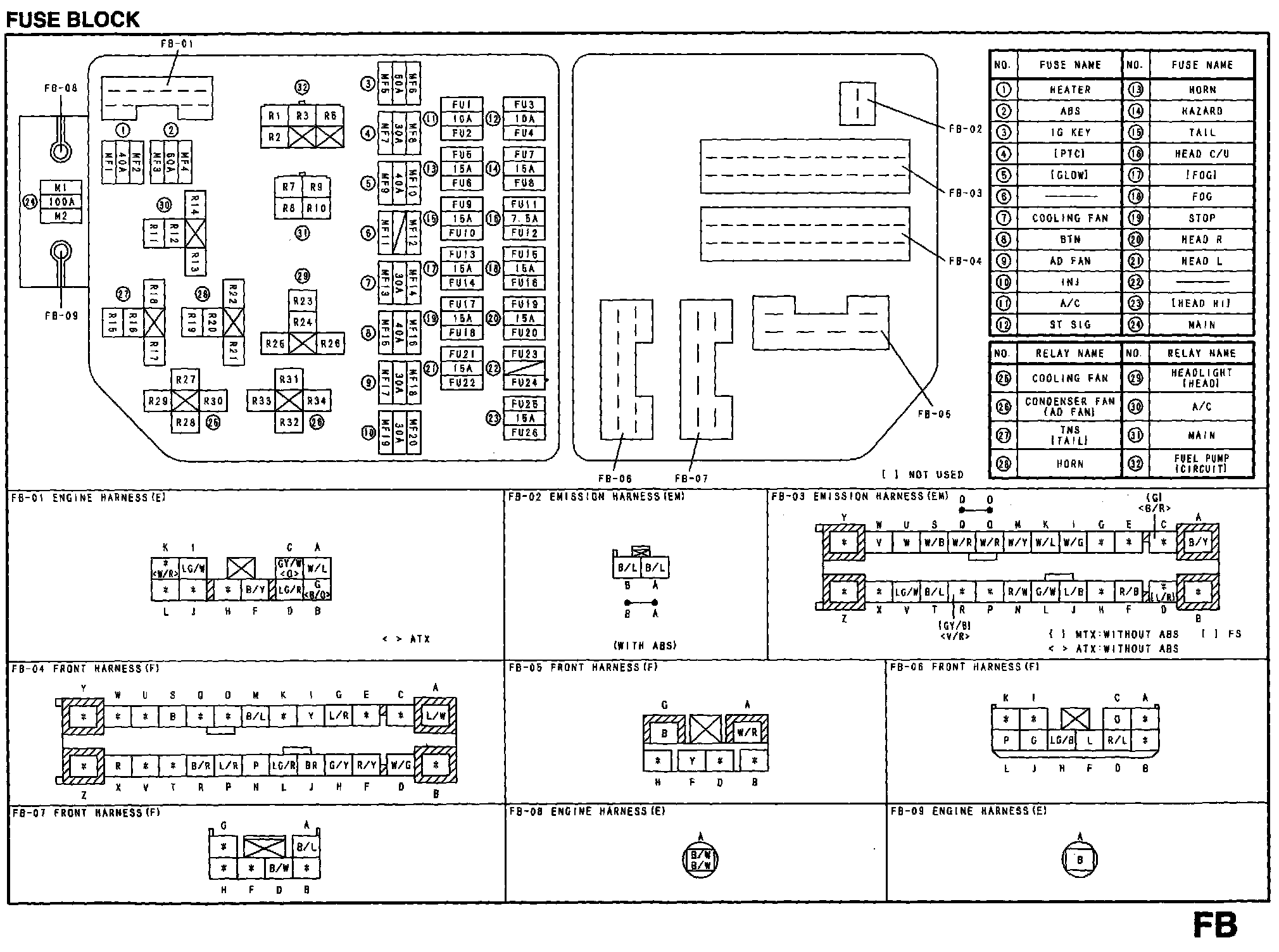

Diagram FB:
