Monitors, Trips, Drive Cycles and Readiness Codes

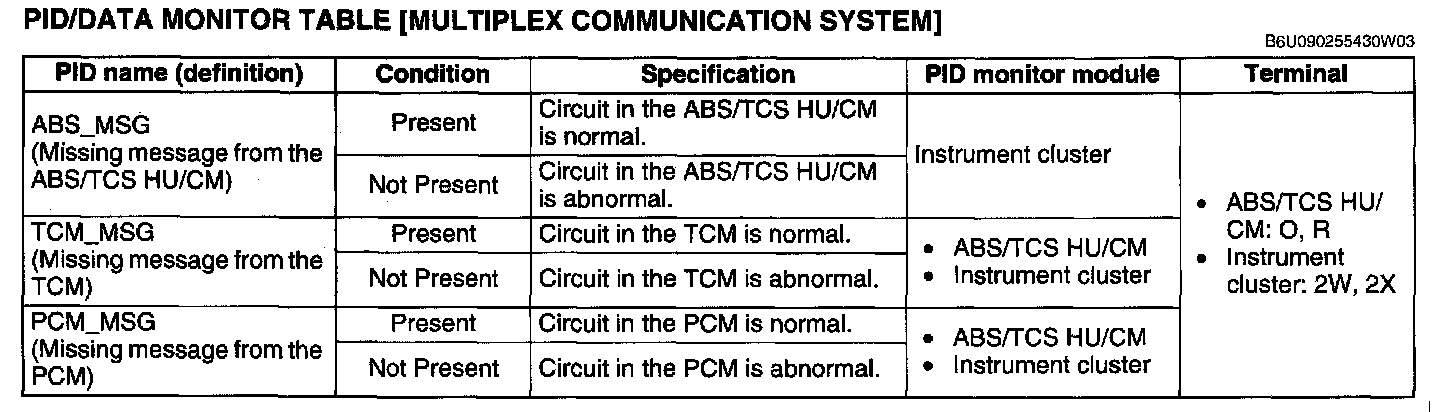

PID/Data Monitor Table [Multiplex Communication System]:
