Home >> Mazda >> 2003 >> 6 L4-2.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> X-16 - X-23

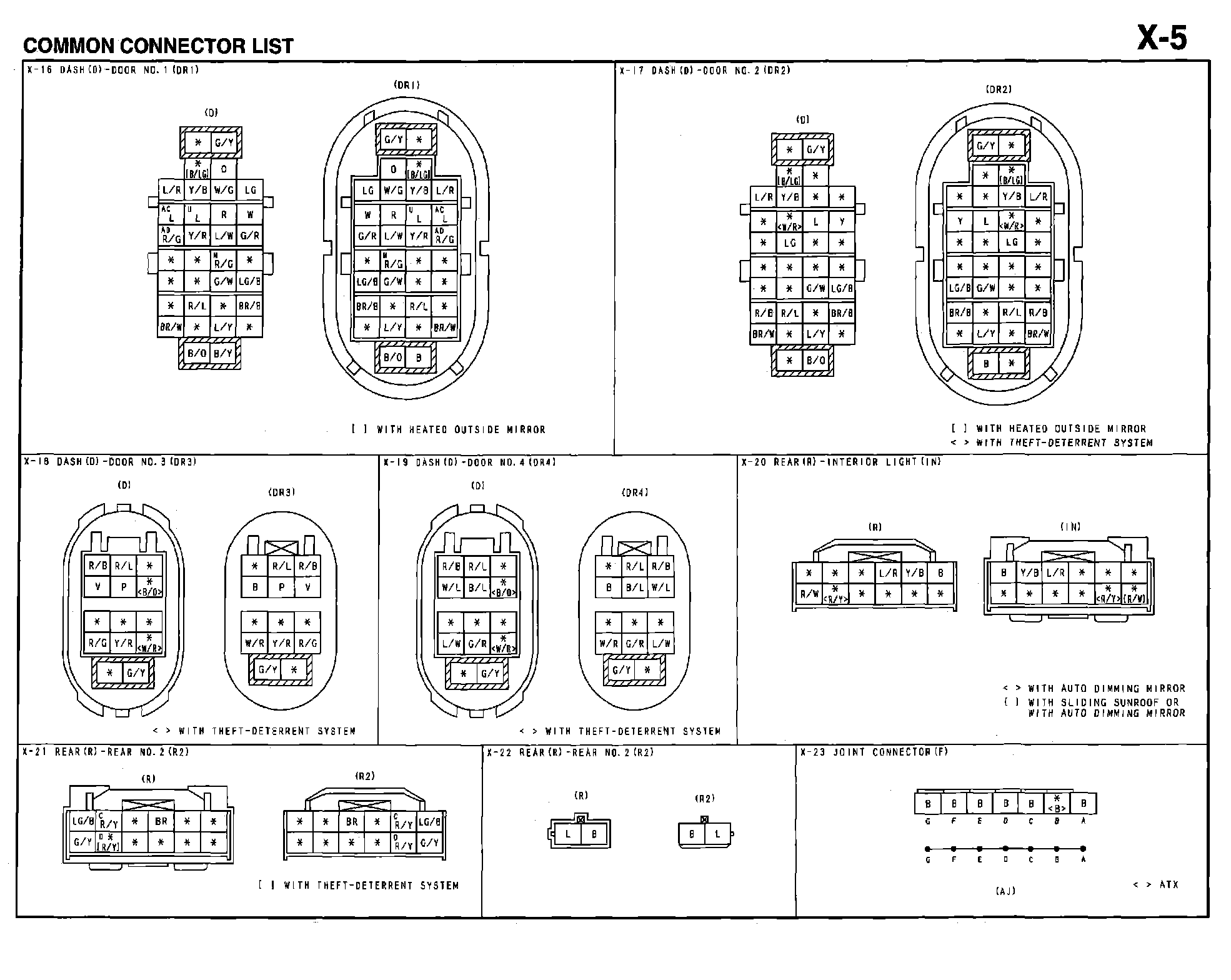

X-16 - X-23

X-16 - X-23:
