B-3 - Fuel Control System
B-3 - Fuel Control System

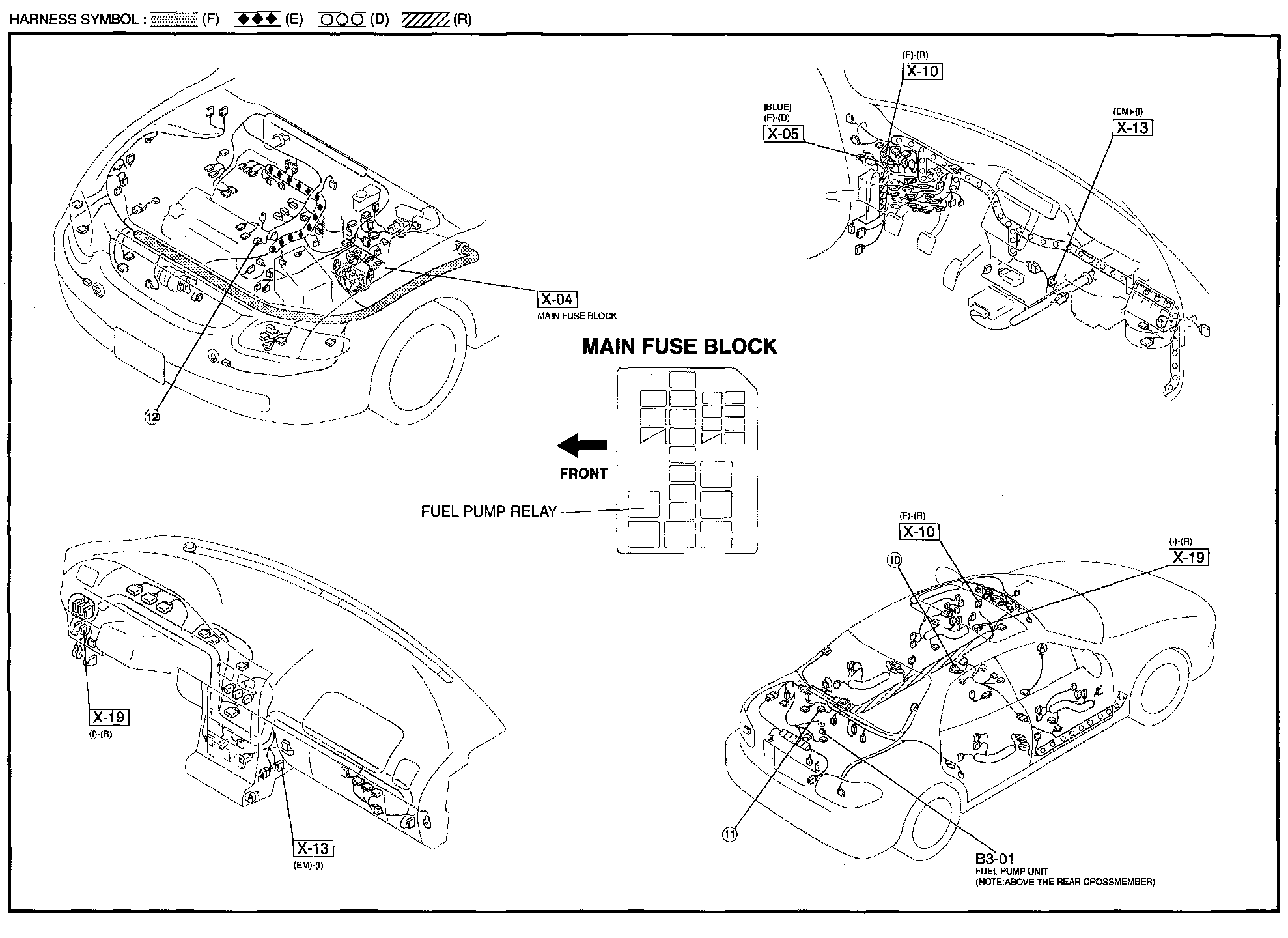

B-3 - Fuel Control System Harness/Connector Symbols:
