Home >> Mazda >> 2002 >> 626 ES V6-2.5L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> System Schematic

System Schematic

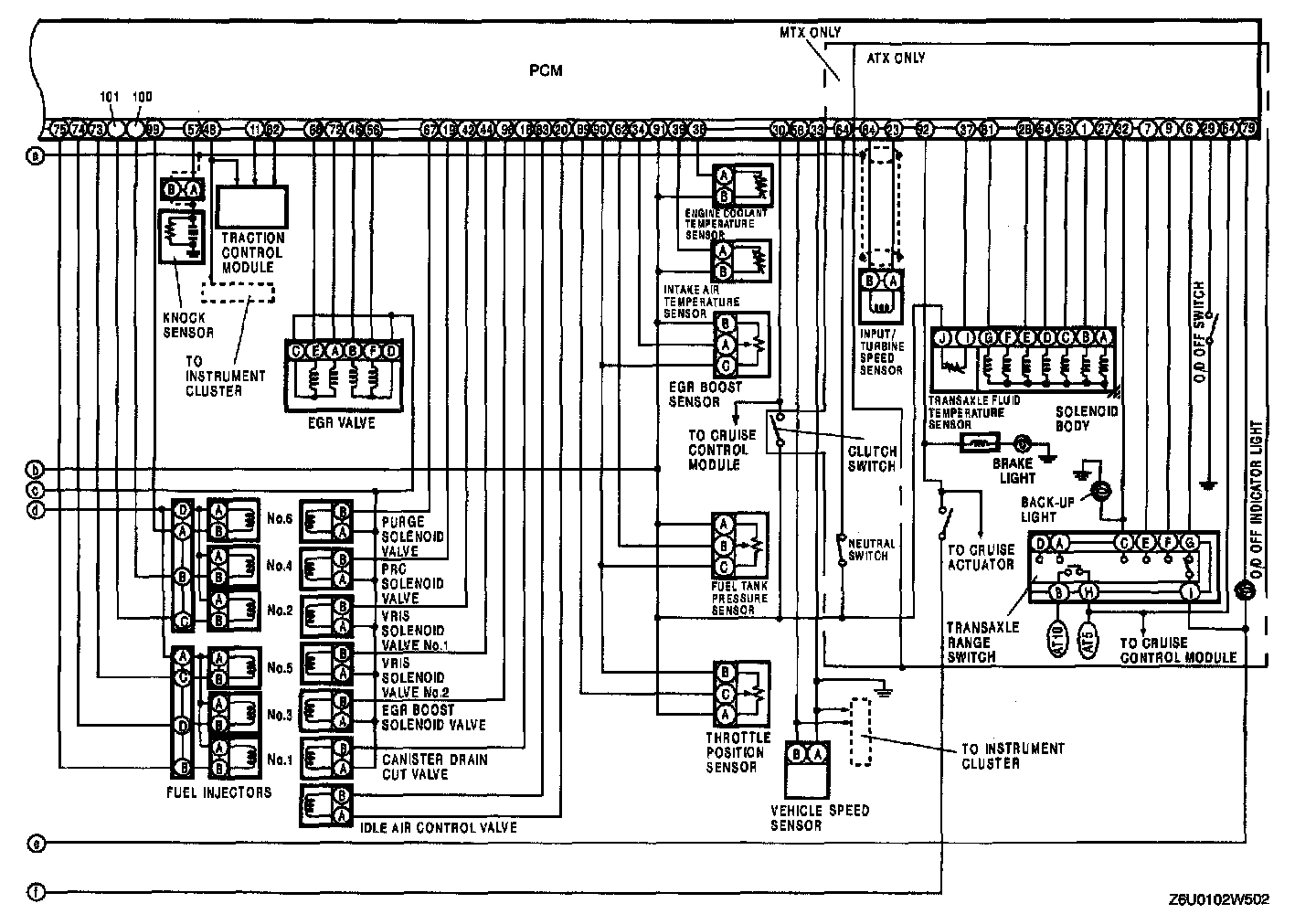

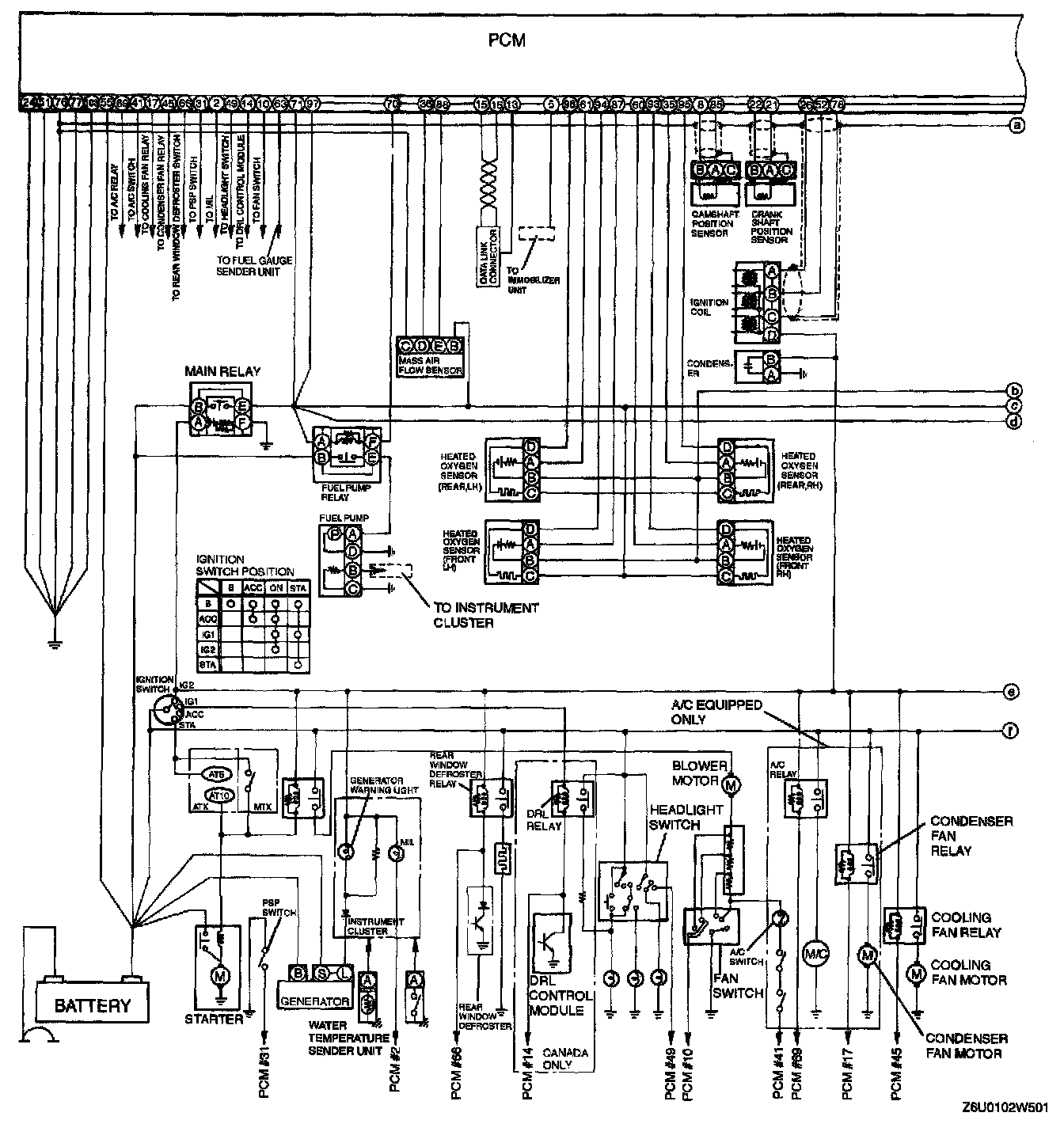

WITH IMMOBILIZER SYSTEM





Part 1 of 2





Part 2 of 2

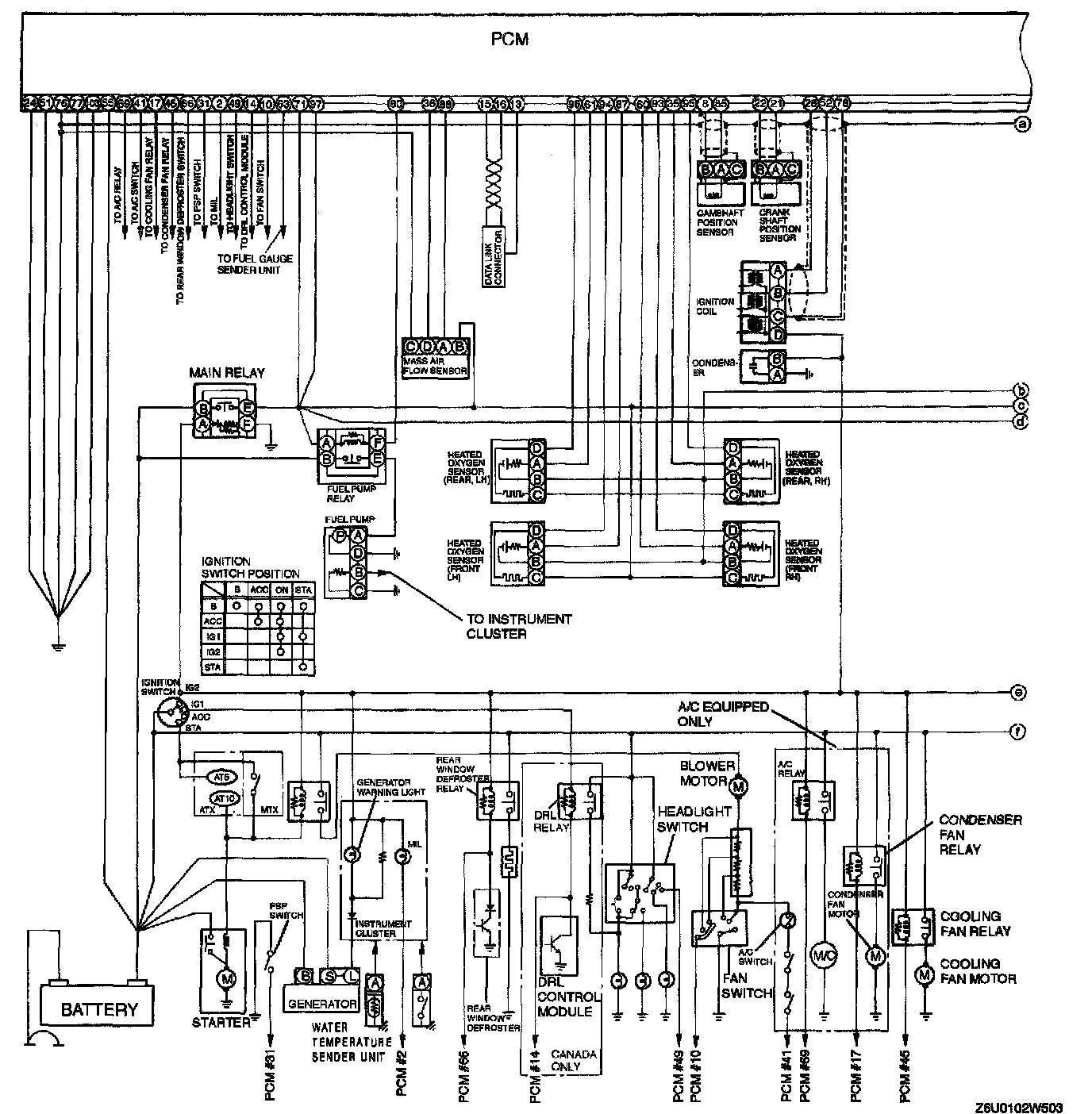

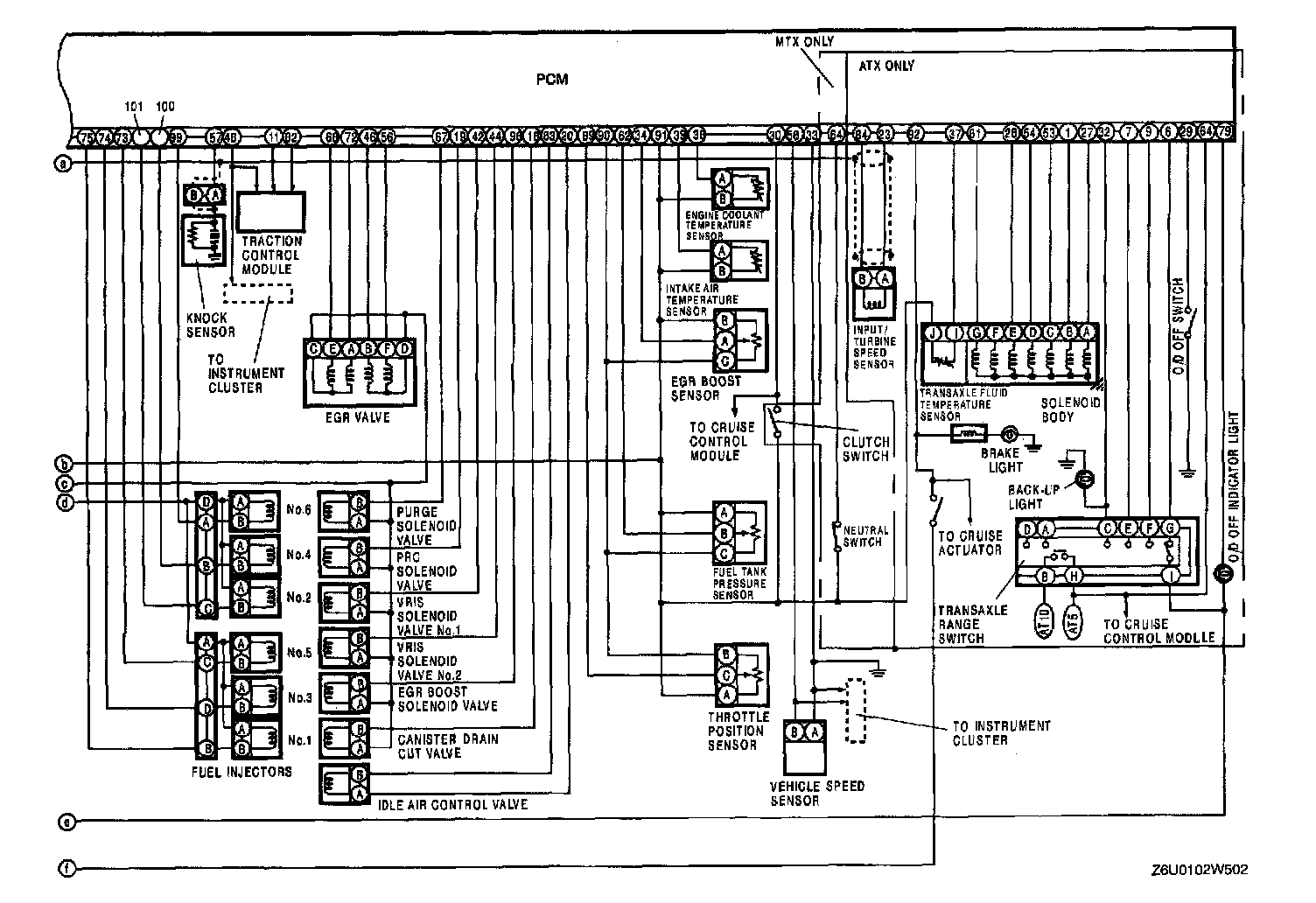

WITHOUT IMMOBILIZER SYSTEM





Part 1 of 2





Part 2 of 2
