Mazda
>>
2001
>>
Protege MP3 L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
System Schematic
System Schematic

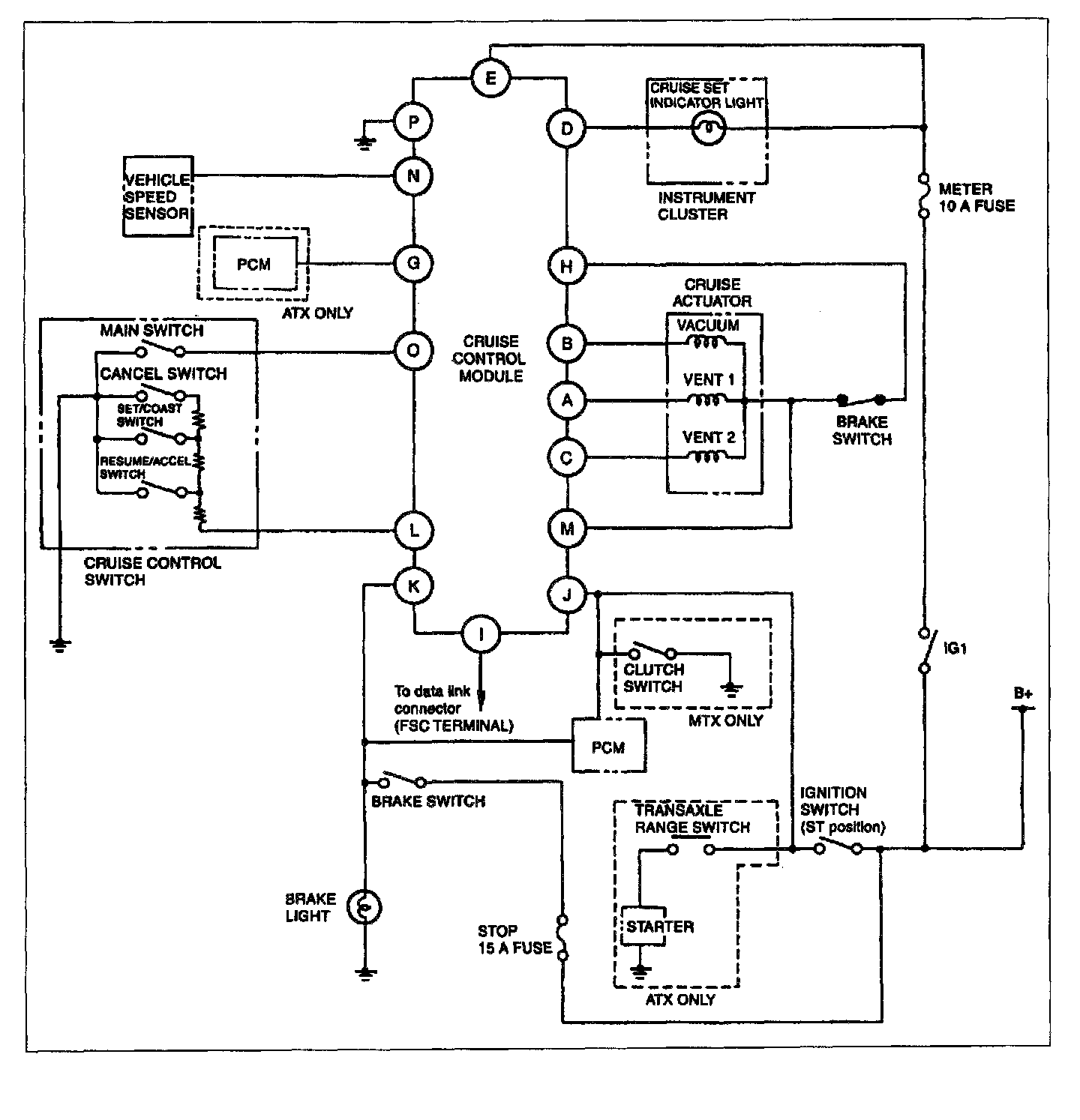

Cruise Control System Wiring Diagram:
