Headlamp Relay: Testing and Inspection
HEADLAMP RELAY INSPECTION1. Remove the headlight relay.

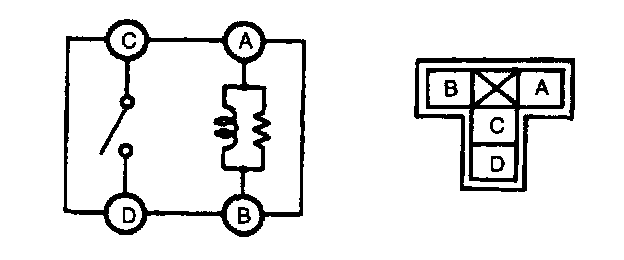

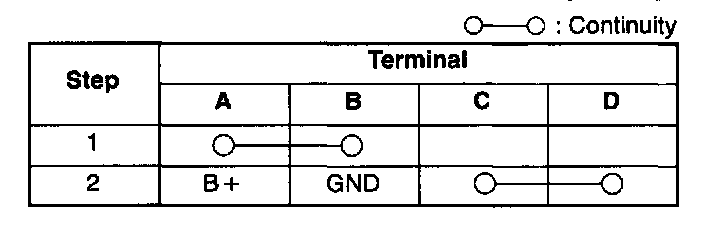

2. Inspect for continuity between the headlight relay terminals using an ohmmeter.
- If not as specified, replace the headlight relay.
1. Remove the headlight relay.
2. Inspect for continuity between the headlight relay terminals using an ohmmeter.
- If not as specified, replace the headlight relay.
