Variable Induction Control Actuator: Service and Repair
1.
Disconnect the negative battery cable.
2.
Remove the air hose,
throttle body
and intake manifold.
3.

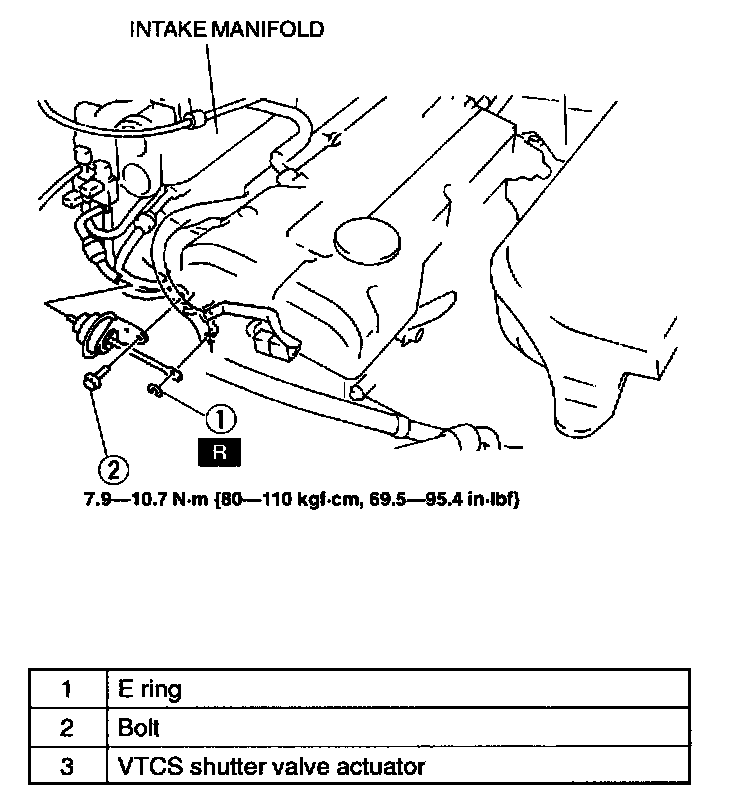

Remove in the order indicated in the table.
4.
Install in the reverse order of removal.
