Fuel Pressure Regulator: Service and Repair

CAUTION: Disconnecting/connecting the quick release connector without cleaning it may possibly cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting, and make sure that it is free of foreign materials.

1. Complete the "BEFORE REPAIR PROCEDURE".
Fuel System Before Repair Procedure

2. Disconnect the negative battery cable.

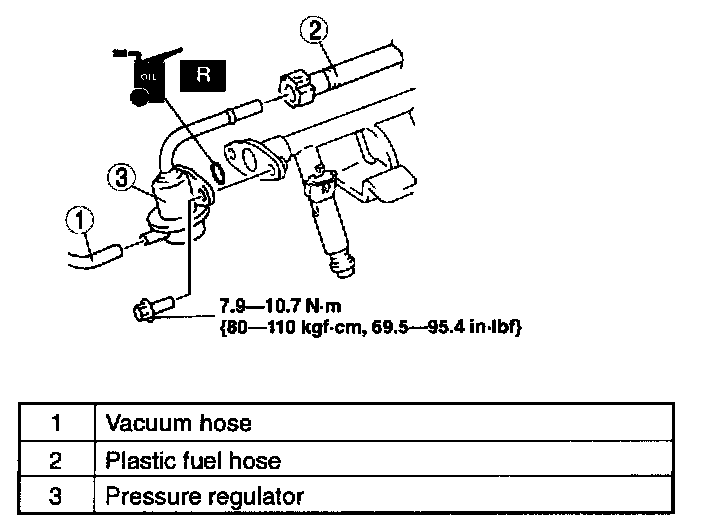

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Complete the "AFTER REPAIR PROCEDURE".
Fuel System After Repair Procedure
