Trouble Judgement By Spark Plug Conditions Purpose

SPARK PLUG CONDITION INSPECTION

PURPOSE
Inspecting spark plugs condition, can determine whether problem is related to a specific cylinder possibly all cylinders.

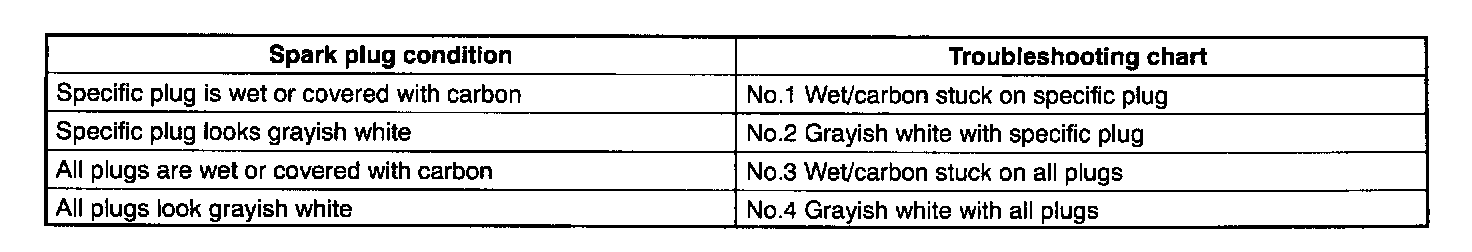

Troubleshooting Index:

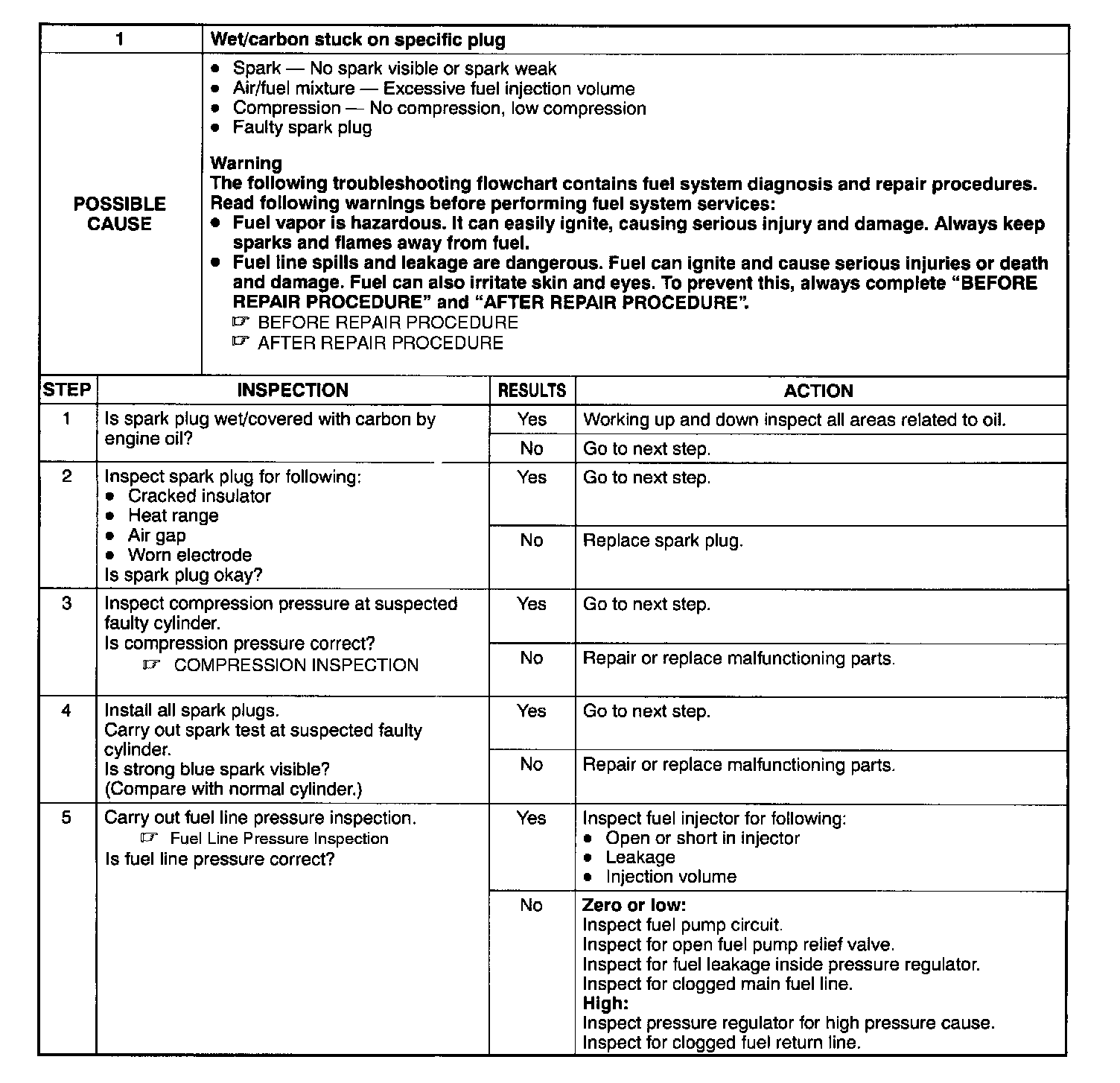

1. Wet/Carbon Stuck On Specific Plug:

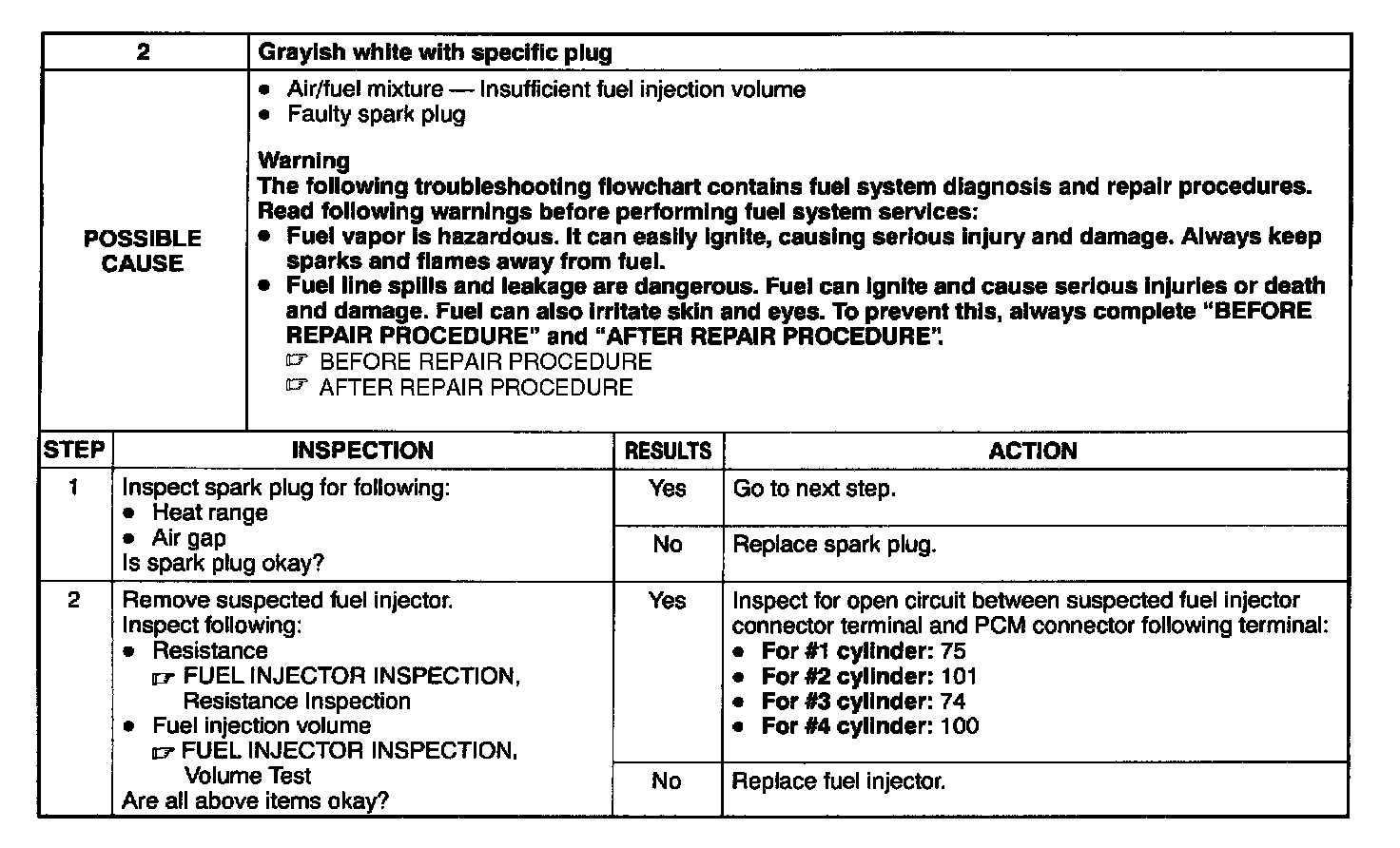

2. Grayish White With Specific Plug:

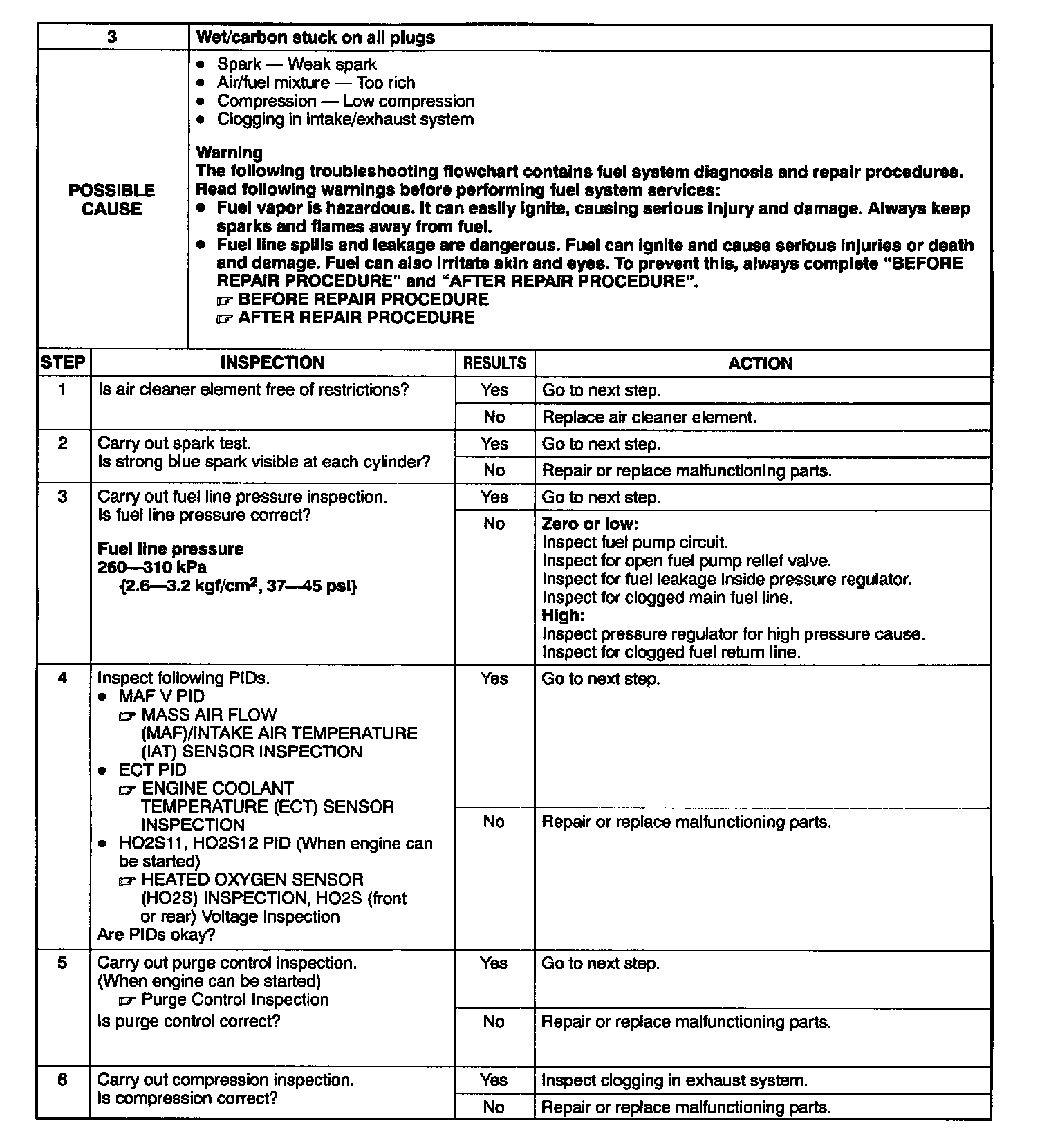

3. Wet/Carbon Stuck On All Plugs:

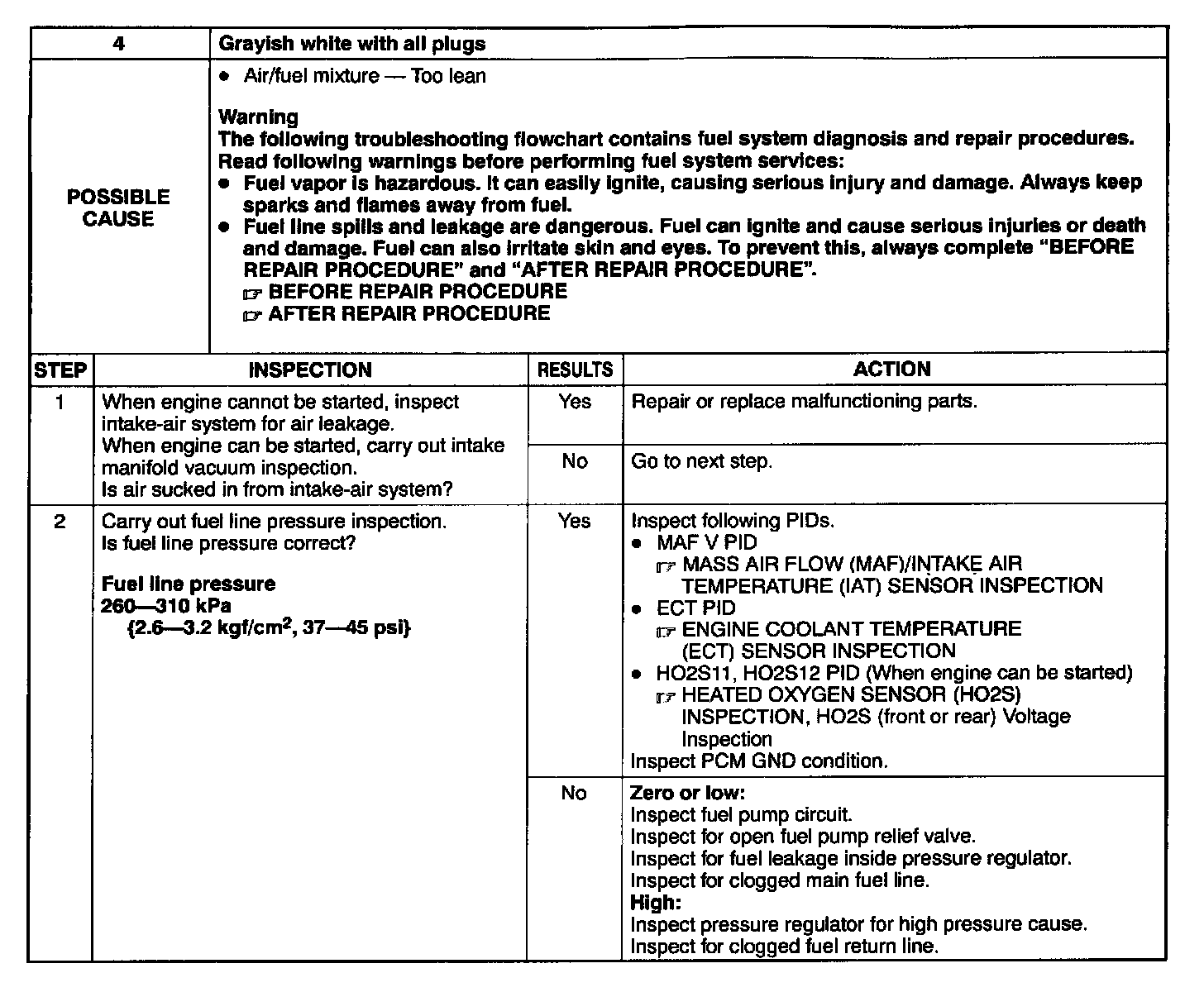

4. Grayish White With All Plugs:

PROCEDURE
1. Remove the spark plug.
2. Inspect spark plug condition.
3. Go to appropriate troubleshooting chart for further information.
