Backup Lamp: Service and Repair

REAR COMBINATION LIGHT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.
2. Remove the trunk side trim.

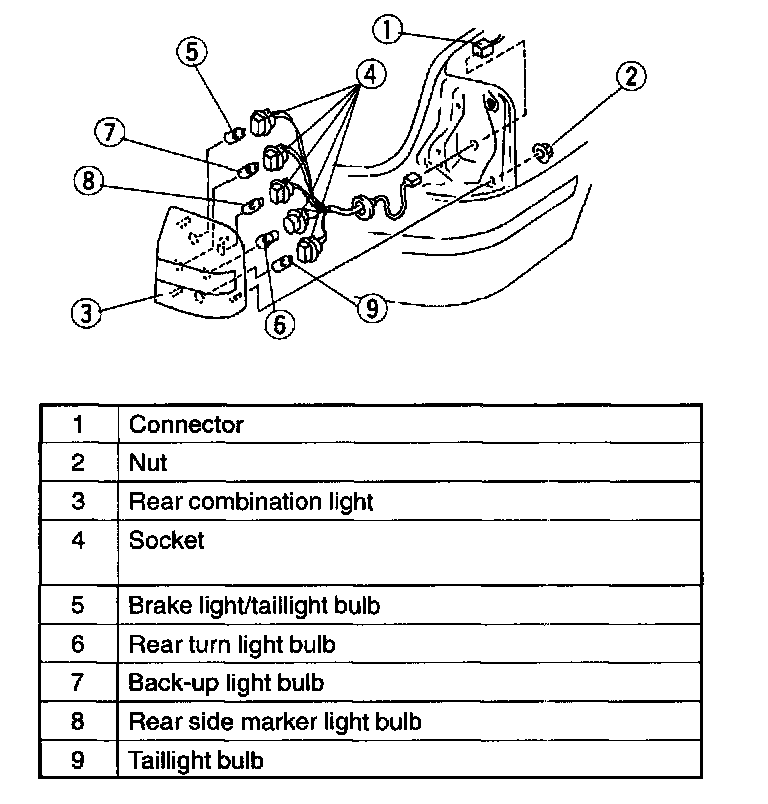

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.

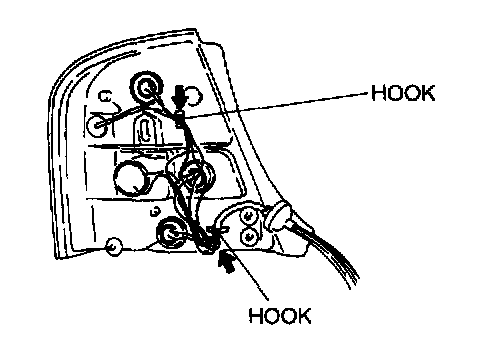

Socket Installation Note




- Hook the harness as shown in the figure.
