Blower Motor: Testing and Inspection

BLOWER MOTOR INSPECTION




1. Disconnect the blower motor connector.

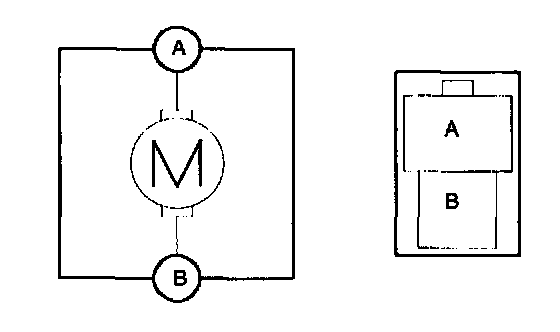

2. Connect battery positive voltage to terminal A and ground to terminal B of the blower motor and verify its operation.
If not as specified, replace the blower motor.
