Blower Motor Relay: Testing and Inspection
BLOWER RELAY INSPECTION1. Remove the blower relay.

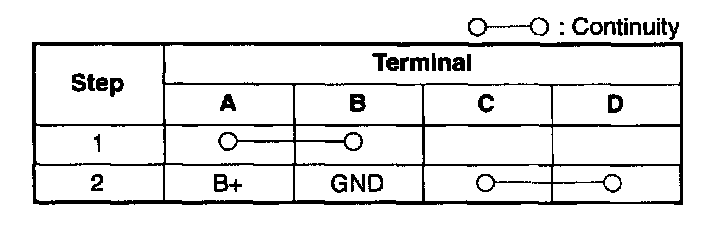

2. Inspect for continuity between the blower relay terminals using an ohmmeter.
It not as specified, replace the blower relay.
1. Remove the blower relay.
2. Inspect for continuity between the blower relay terminals using an ohmmeter.
It not as specified, replace the blower relay.
