Cooling Fan Relay Inspection

COOLING FAN RELAY INSPECTION
1. Disconnect the battery negative cable.

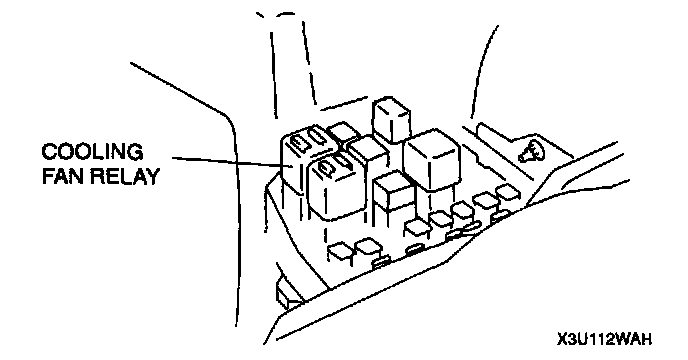

2. Remove the cooling fan relay from the main fuse block.

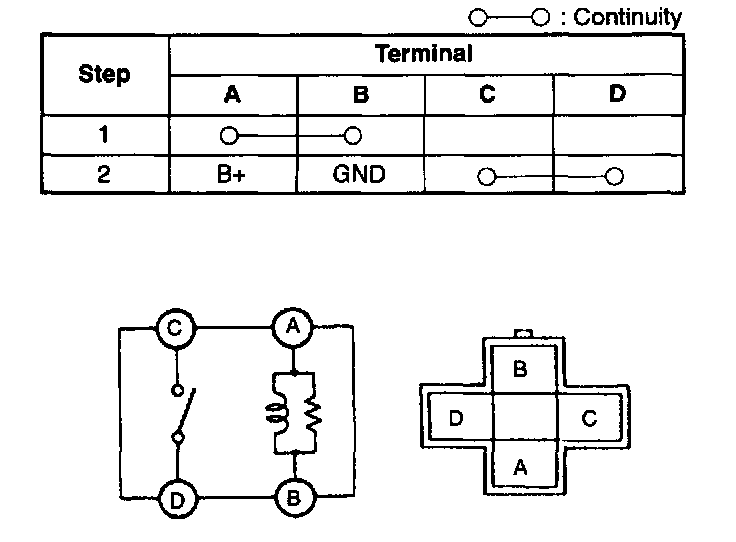

3. Apply battery positive voltage and inspect for continuity between terminals of the cooling fan relay by using an ohmmeter.
- If not as specified, replace the cooling fan relay.
