Canister Purge Solenoid: Service and Repair

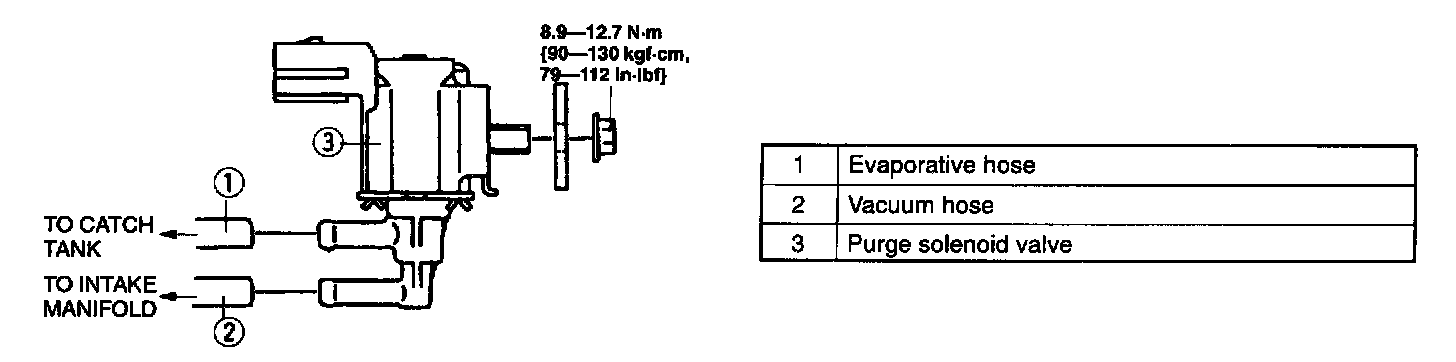

PURGE SOLENOID VALVE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.




2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.

Vacuum Hose Installation Note
- Install the vacuum hose until it contacts the stopper.

Evaporative Hose Installation Note
- Install the evaporative hose until it contacts the stopper.
