Drive Belt: Adjustments

DRIVE BELT ADJUSTMENT [FP]

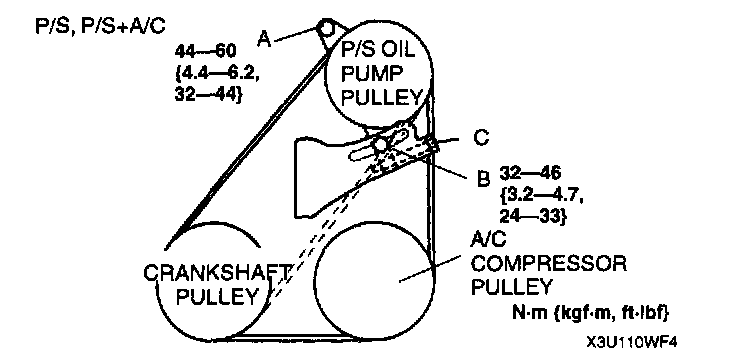

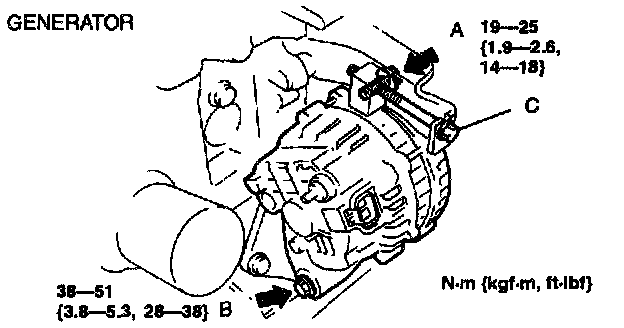

1. Loosen mounting bolt A and B.
2. Adjust the belt deflection or tension by turning the adjusting bolt C.

















CAUTION:
- When the belt is replaced with a new one or the belt has been on a running engine for less than 5 minutes, adjust deflection or tension to "New" specification.
- If the belt has been on a running engine for more than 5 minutes, adjust deflection or tension to "Used" specification.

3. Tighten mounting bolt A and B.

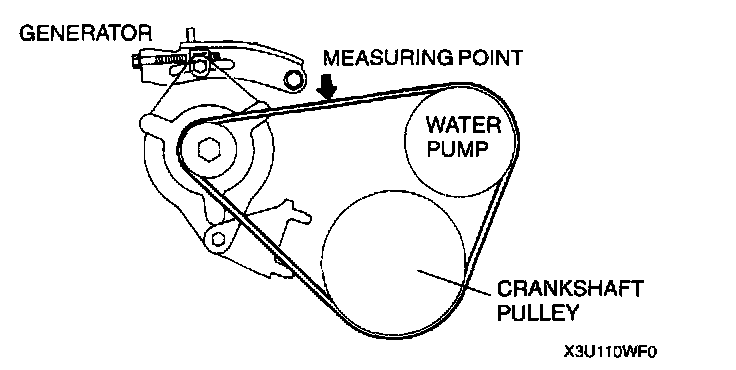

4. Inspect the belt deflection or tension.
- If not as specified, repeat from Step 1.
