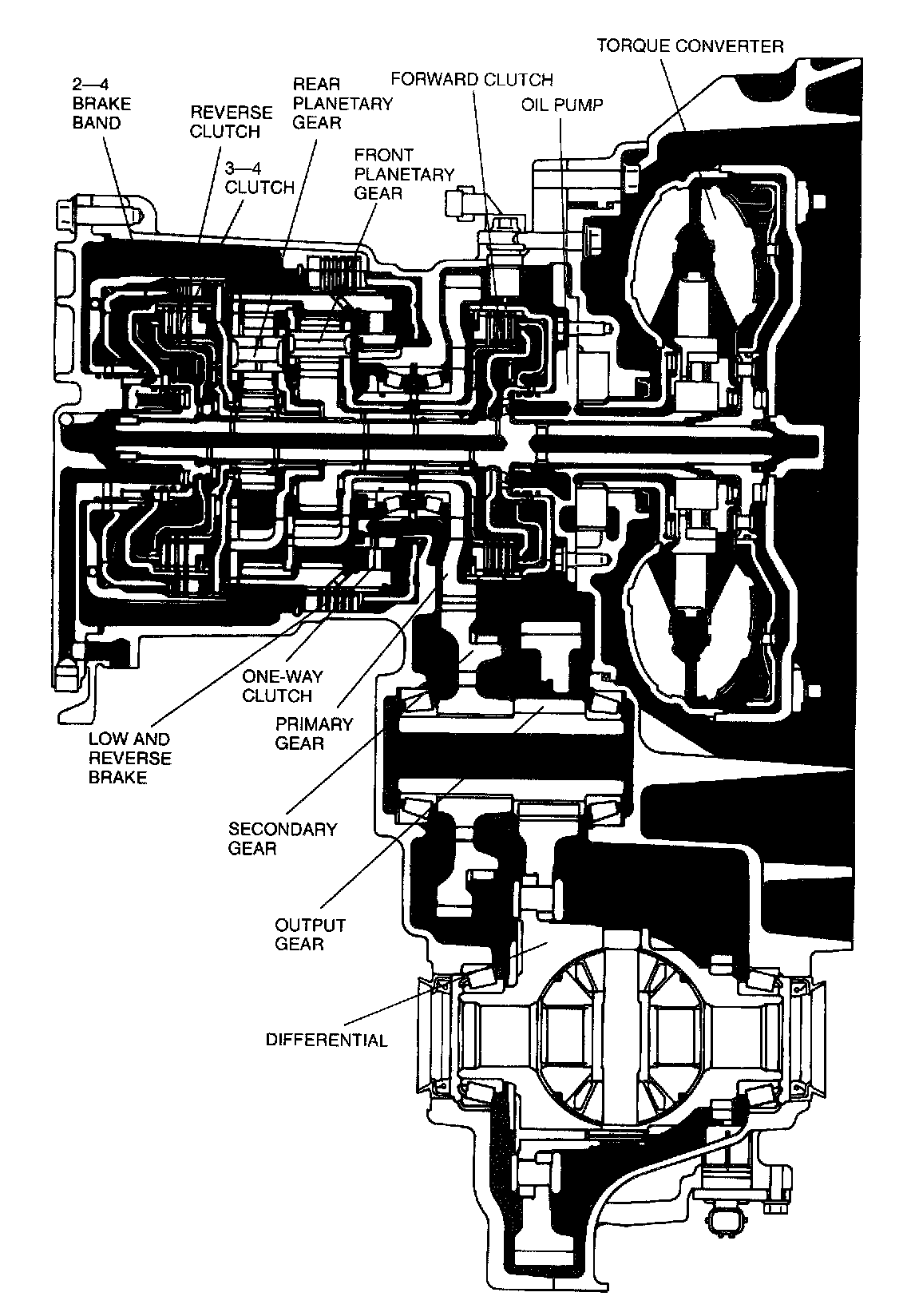

Automatic Transaxle Cross-Sectional View
Automatic Transaxle Cross-Sectional View
FN4A-EL Electronically Controlled Automatic Transaxle:
