Transmissions Control Systems

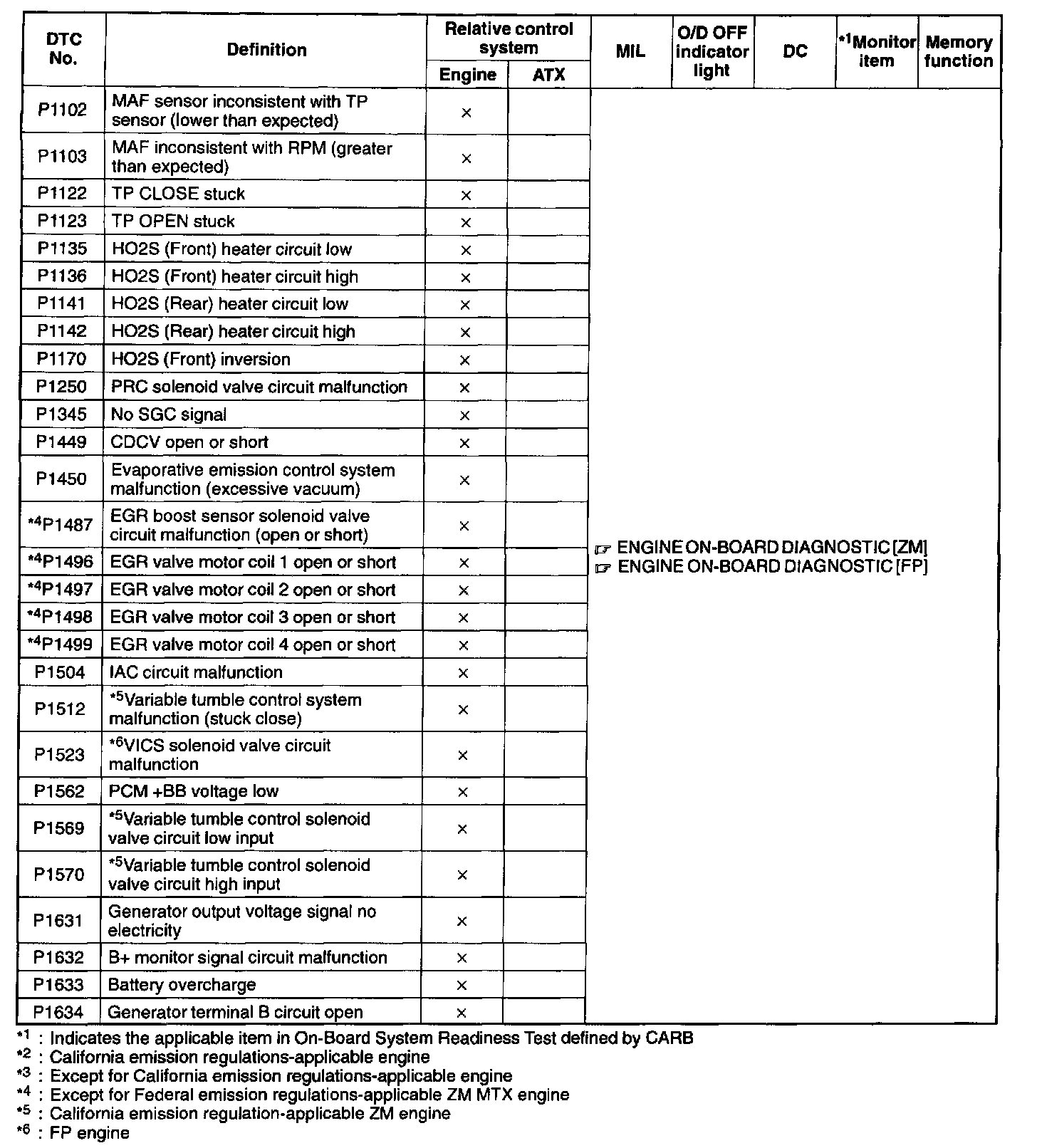

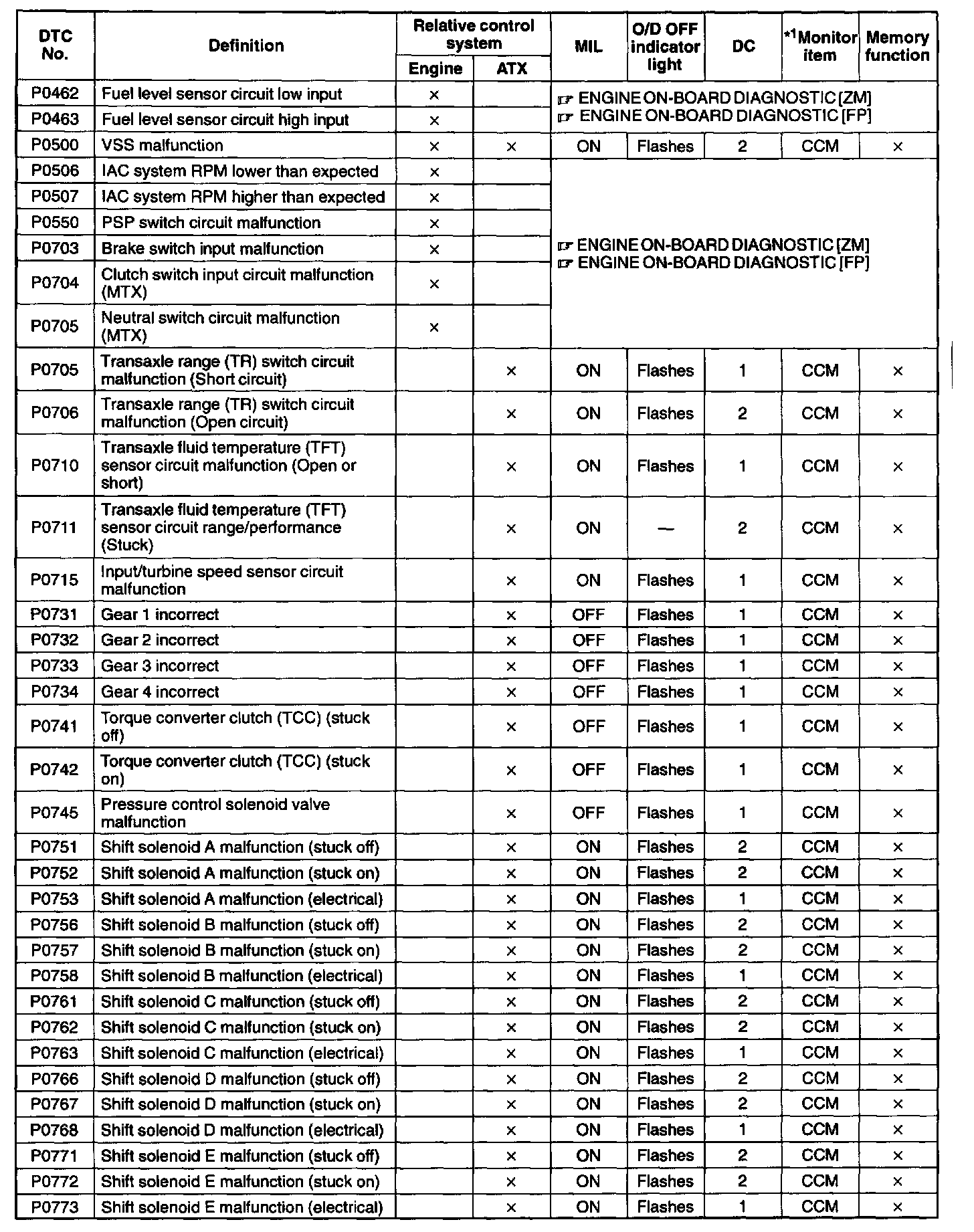

DTC List

- DTC troubleshooting for the MAF sensor, ECT sensor (P0117, P0118), TP sensor malfunction (P0122, P0123), CKP sensor and VSS malfunction (P0500) is mentioned in "ENGINE" as follows:
- For ZM engine: (Refer to ENGINE ON-BOARD DIAGNOSTIC [ZM], Diagnostic Trouble Code Troubleshooting [ZMI.) Computers and Control Systems
- For FP engine: (Refer to ENGINE ON-BOARD DIAGNOSTIC [FP], Diagnostic Trouble Code Troubleshooting [FP]). Computers and Control Systems
