Clutch Pedal Assembly: Adjustments

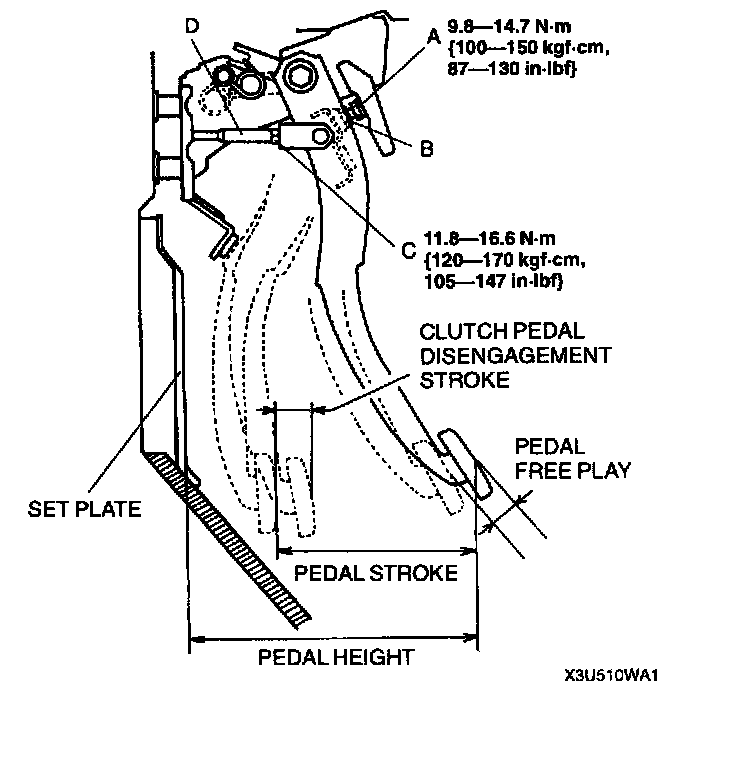

Clutch Pedal AdjustmentClutch Pedal Height Adjustment
1. Adjust the pedal height by turning locknut A and adjustment bolt B.
Pedal height 210 - 215 mm (8.27 - 8.46 inch) [from set plate]
Clutch Pedal Free Play Adjustment
1. Adjust the pedal free play by turning locknut C and adjusting push rod D.
Pedal free play 0.7 - 3.4 mm (0.02 - 0.13 inch)
Clutch Pedal Disengagement Stroke
1. Measure the clutch pedal disengagement stroke.
^ If the clutch pedal disengagement stroke is not within the specification, adjust the pedal height and pedal freeplay, and verify the pedal stroke.
Clutch pedal disengagement stroke 45 - 55 mm (1.77 - 2.17 inch) (reference value)
Pedal stroke 130 - 140 mm (5.12 - 5.51 inch) (reference value)
