Valve Body: Description and Operation

CONTROL VALVE BODY DESCRIPTION





Outline

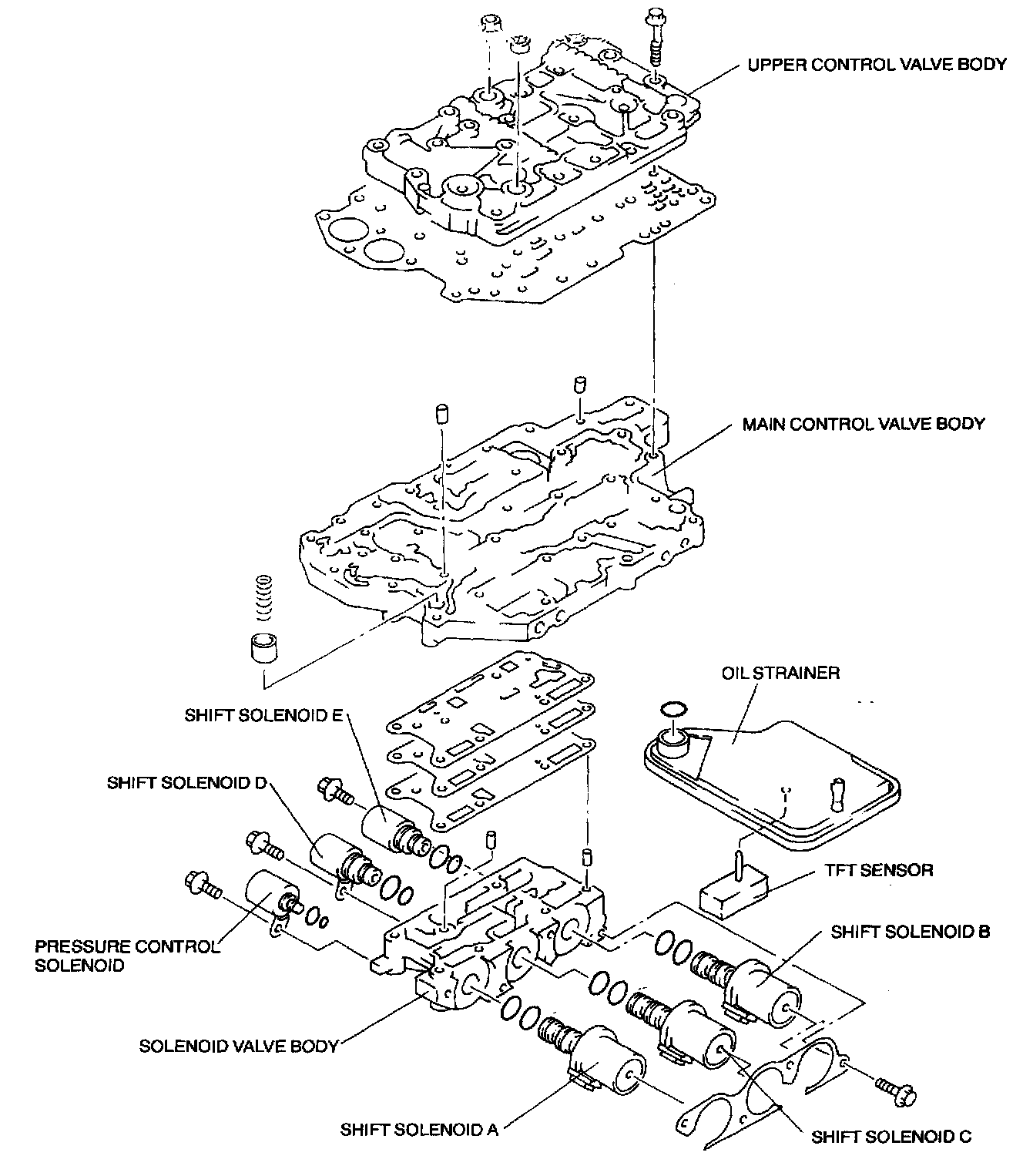

- The control valve body is composed of three bodies: the upper control valve body, main control valve body, and the solenoid valve body.
- To minimize the component in the control valve body, clutch engagement is electronically controlled, hydraulic circuits were simplified and the valve types reduced.
- The nonwoven fabric oil strainer is installed in the control valve body to prevent contamination.
