Front Internal Gear One-Way Clutch Component Disassembly/Assembly

FRONT INTERNAL GEAR ONE-WAY CLUTCH COMPONENT DISASSEMBLY/ASSEMBLY
1. Perform the preinspection before disassembly.
2. Disassemble in the order indicated in the table.
3. Assemble in the reverse order of disassembly.

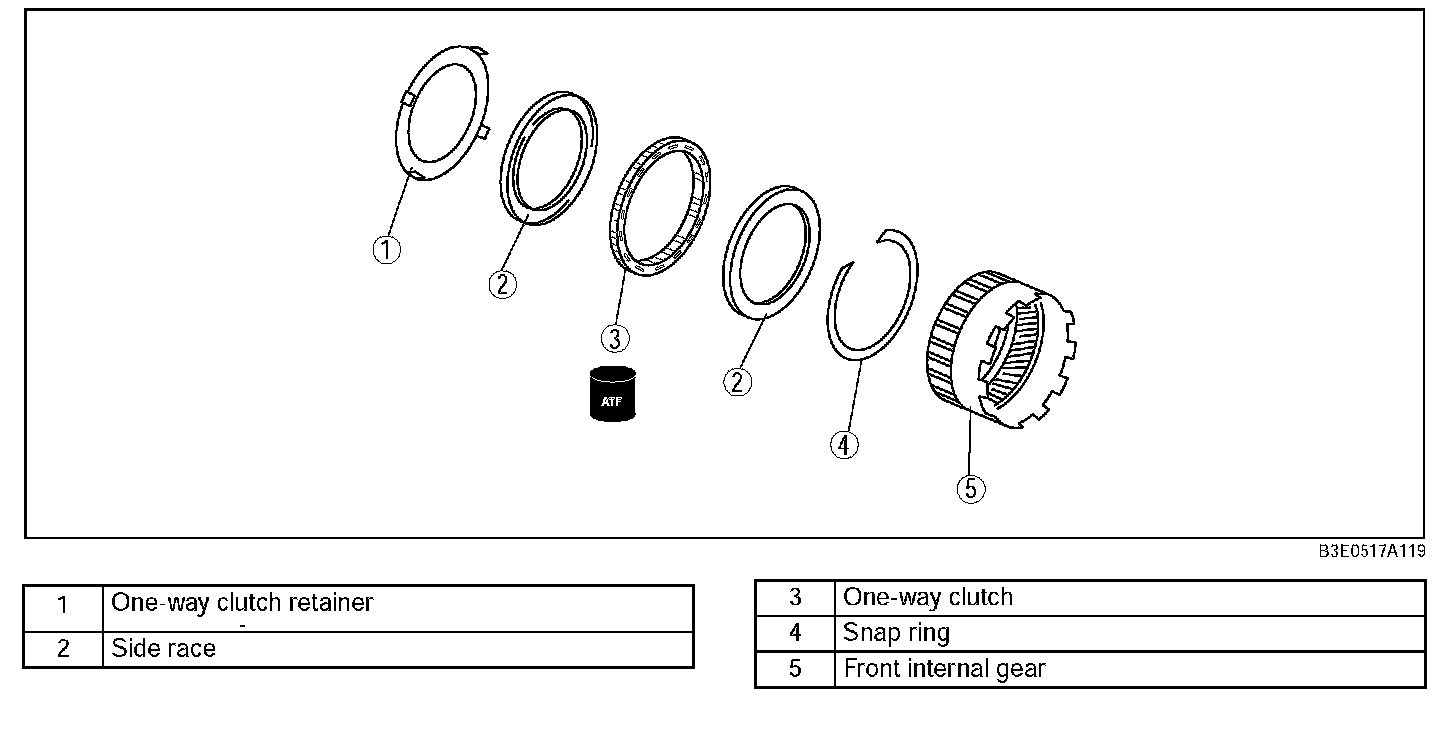

Front Internal Gear One-Way Clutch Component Disassembly/Assembly:
