Blower Unit Seal Replacement

REPAIR PROCEDURE (Blower Unit Seal Replacement)

1. Remove blower unit according to the Workshop Manual BLOWER UNIT REMOVAL/INSTALLATION (section 07-11).

NOTE:
Dashboard removal is not required when removing the blower unit.

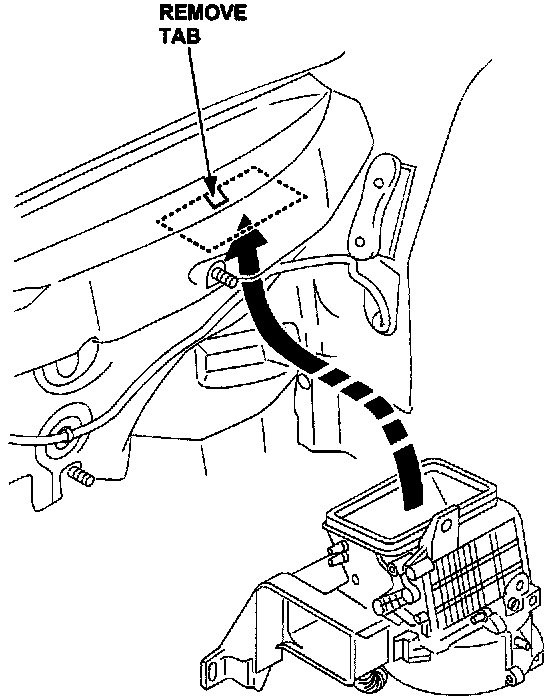

2. Cut the tab off if the tab is present.





3. Replace blower unit seal.

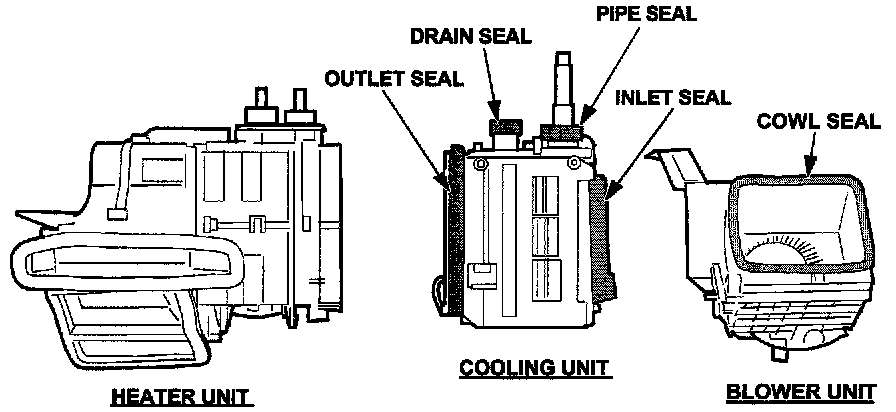

4. Inspect cooling unit inlet and outlet side seals for tears or deterioration and replace them as necessary.

5. Replace cooling unit pipe seal and drain seal.

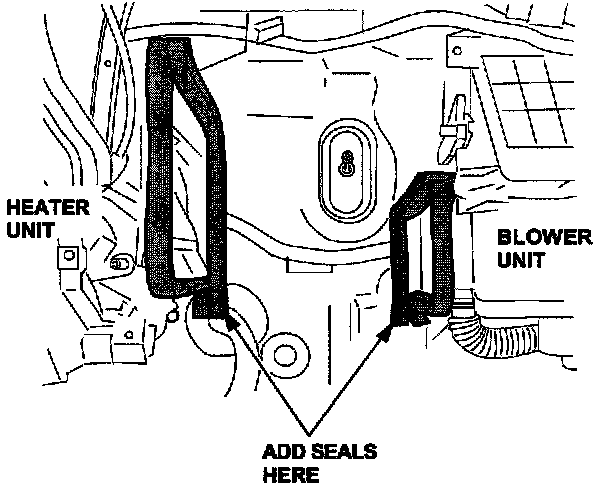

6. Install additional seals on the blower and heater units at locations specified in the illustration.

NOTE:
Be sure to clean contact surfaces with Isopropyl Alcohol for proper adhesion.





7. Install blower unit according to Workshop Manual BLOWER UNIT REMOVAL/INSTALLATION (section 07-11).

8. Install cooling unit according to Workshop Manual COOLING UNIT REMOVAL/INSTALLATION (section 07-11).

NOTE:
Prior to recharging A/C system, road test vehicle to confirm all air leaks have been corrected.

9. Adjust air intake door according to STEPS 4 through 9 of the INSPECTION PROCEDURE.

10. Recharge A/C system.

11. Verify repair.
