Rear

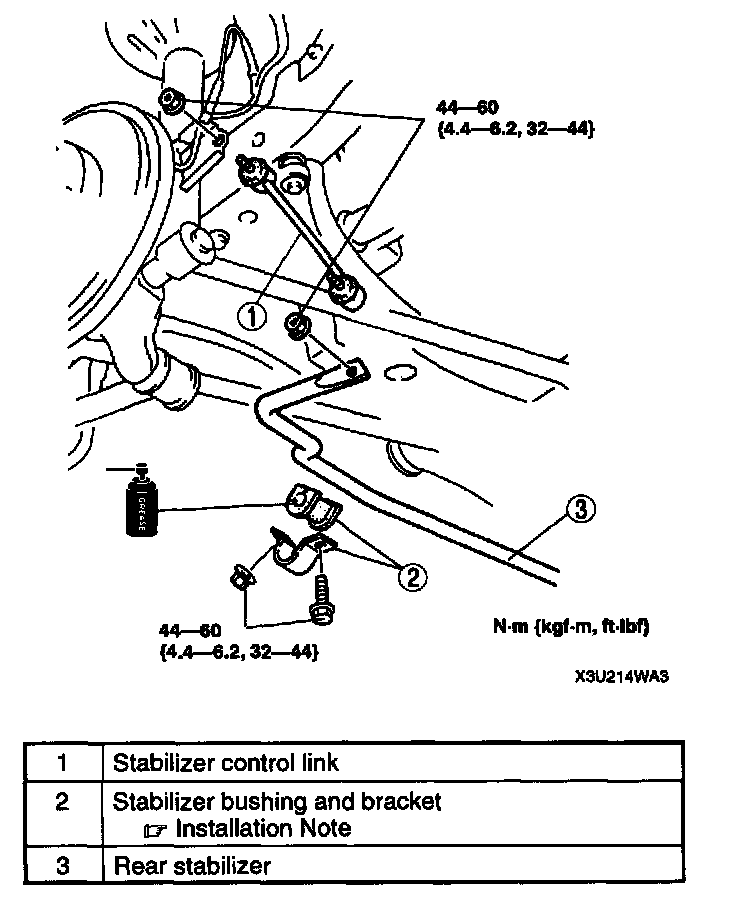

REAR STABILIZER REMOVAL/INSTALLATION
1. Remove in the order indicated in the table.





2. Install in the reverse order of removal.

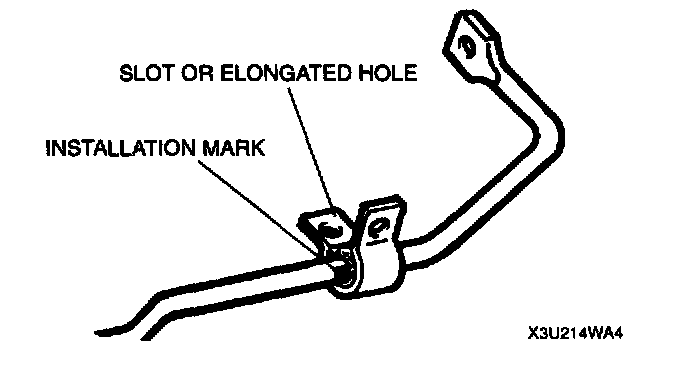

STABILIZER BUSHING AND BRACKET INSTALLATION NOTE
1. Align the bushing with the installation mark on the stabilizer bar.
2. Temporally install the stabilizer bracket so that the slot (or elongated hole) faces downward.





3. Tighten the stabilizer bracket nut, then bolt.

STABILIZER CONTROL LINK INSPECTION
1. Inspect the rear stabilizer control link in the same procedure as the front stabilizer control link inspection.
