Front Seat Belt

CAUTION: The ELR has a spring that will unwind if the retractor's cover is removed. The spring cannot be rewound by hand. If this occurs, the ELR will not work properly. Therefore, do not disassemble the retractor.






1. Remove the B-pillar lower trim.

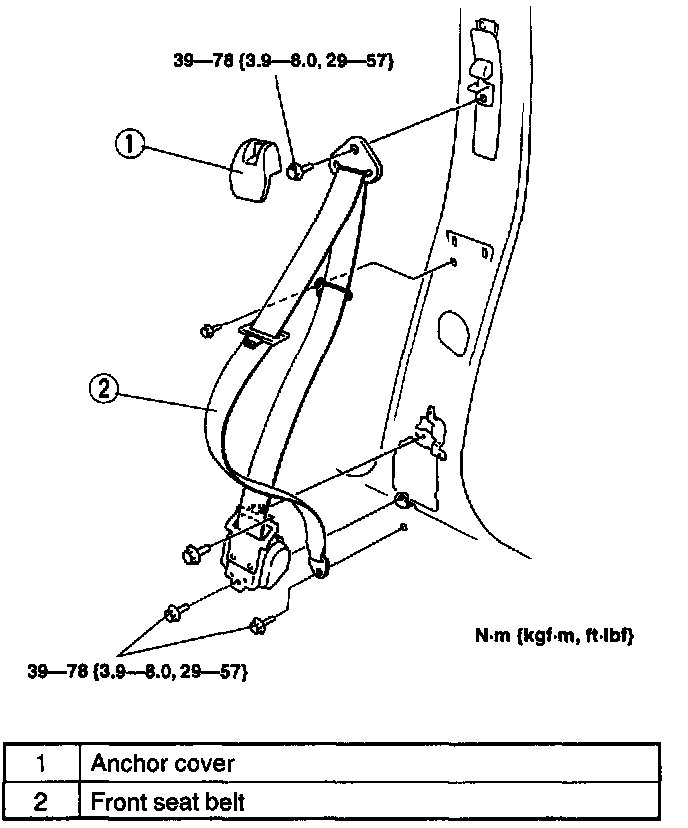

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
