Removal and Installation

WARNING: Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM SERVICE PRECAUTIONS before handling the air bag module.

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative battery cable and wait for more than 1 minute.

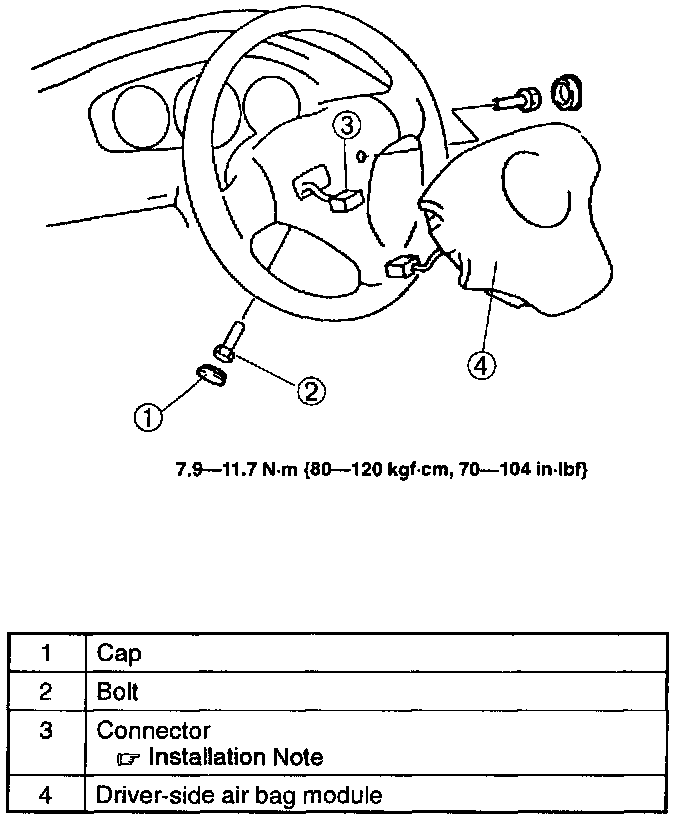

FOUR SPOKE TYPE:

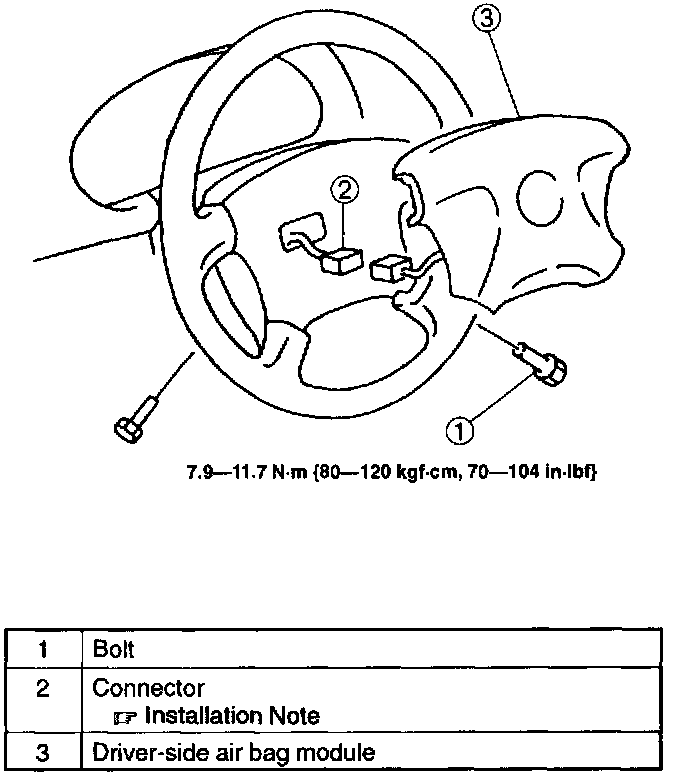

THREE SPOKE TYPE:

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Turn the ignition switch to the ON position.
6. Verify that the air bag system warning light illuminates for approximately 6 seconds and then goes off.
If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic function.


Connector Installation Note:

FOUR SPOKE TYPE:

Install the connector as shown.

THREE SPOKE TYPE:

Install the connector and secure the vehicle-side harness onto the hook as shown.
