Horn Relay: Testing and Inspection

HORN RELAY INSPECTION

1. Remove the horn relay.

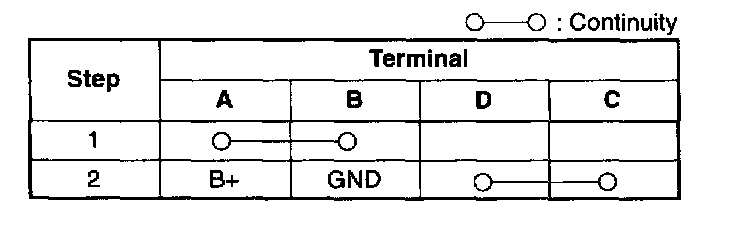

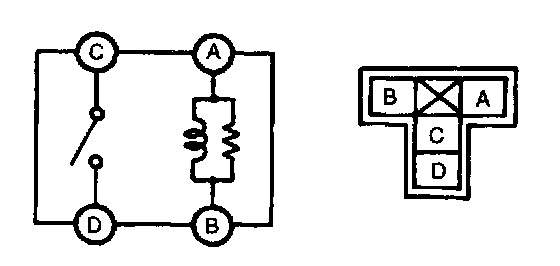

2. Inspect for continuity between the horn relay terminals using an ohmmeter.
- If not as specified, replace the horn relay.
