Daytime Running Lamp Control Unit: Testing and Inspection

DAYTIME RUNNING LIGHT (DRL) SYSTEM CONTROL MODULE INSPECTION (CANADA)

1. Remove the bracket and pull it toward you.
2. Measure the voltage at the DRL control module terminals as indicated below.
3. Disconnect the DRL control module connector before inspecting for continuity at terminals 1D.
- If not as specified, inspect the parts listed under "Inspection area" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the DRL control module.

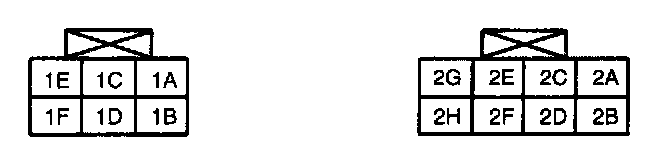

Connector View:

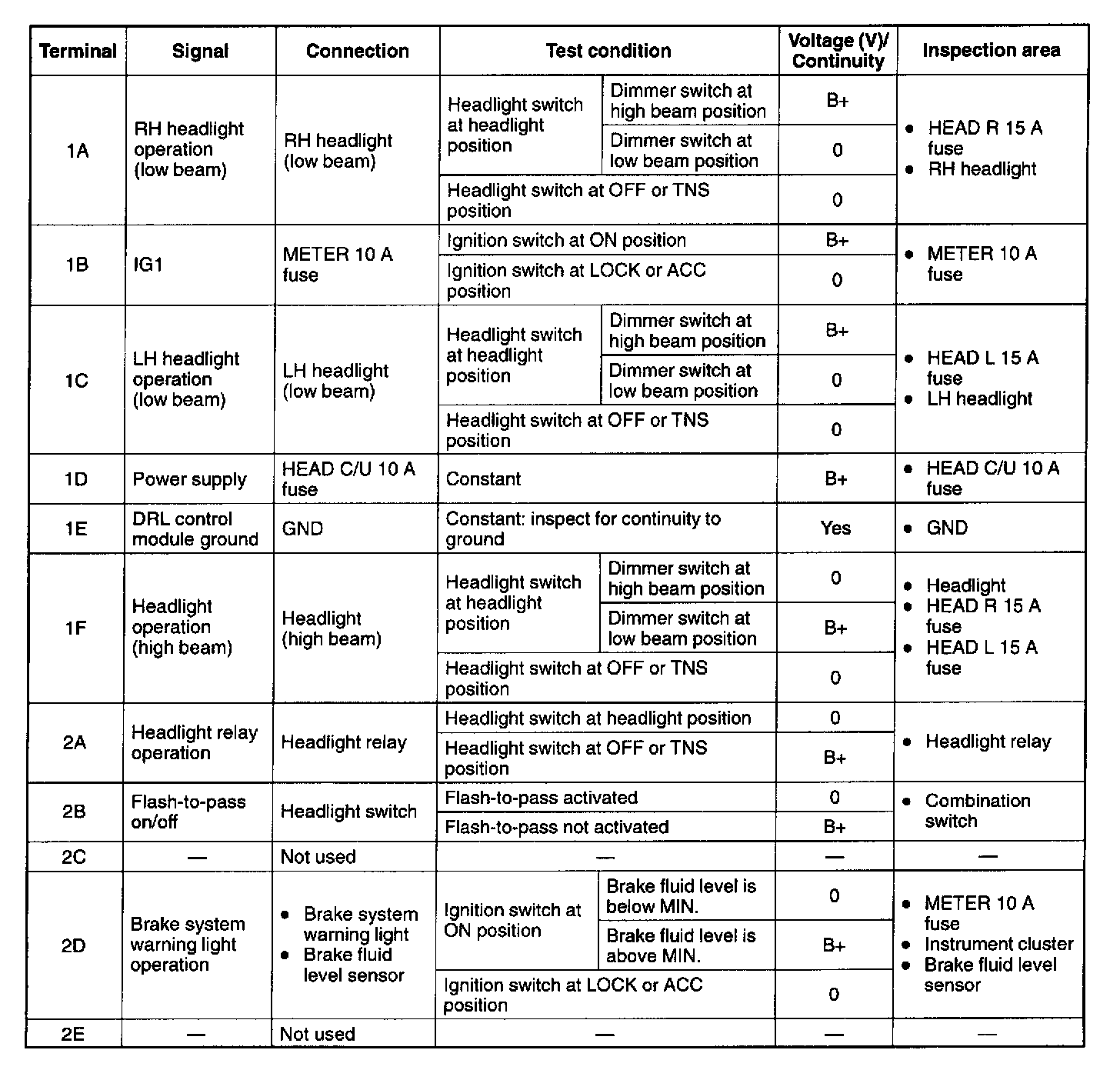

Terminal Values (1A-2E):

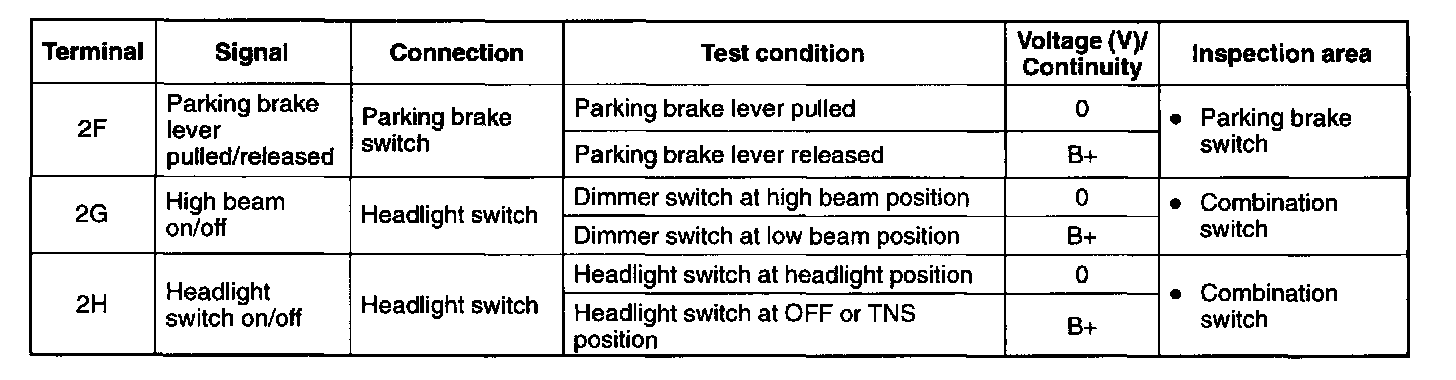

Terminal Values (2F-2H):

Terminal Voltage List (Reference)
