Variable Tumble Control System (VTCS) Delay Valve Inspection

1. Remove the VTCS delay valve.

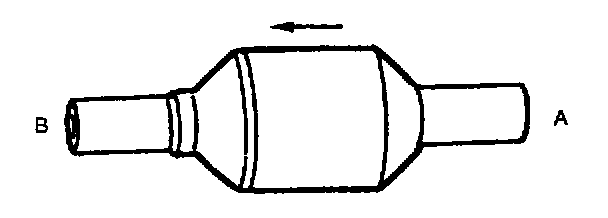

2. Blow through A and verify that the air flows from B.
- If not as specified, replace the VTCS delay valve.

3. Blow through B and verify that the air does not flow from A.
- If not as specified, replace the VTCS delay valve.
